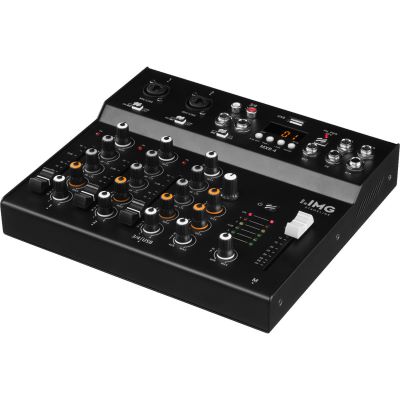

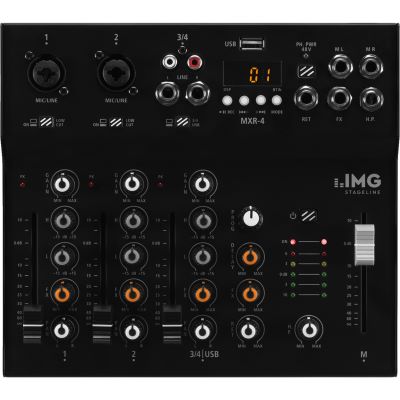

IMG Stage Line MXR-4 Mischpult B-Ware

Why "B-Grade"?: Slight signs of wear.

Features:

• Built-in USB audio interface (recognized and accessed as an external sound card)
• Full-duplex USB port (simultaneous recording and playback possible) for playing back digital audio data from the computer and recording the mix to the computer
• 2 mono input channels with gain control, 2-band EQ, and pan control
• 1 stereo input channel with 2-band EQ and balance control
• MP3 player
• USB interface
• Bluetooth receiver
• 16 different DSP effects
• Adjustable aux return input and FX send output
• +48 V phantom power, centrally switchable
• Adjustable headphone output
• Stereo LED level meter
• Power supply via USB or included AC adapter

Technical Specifications:

• Input channels: 4
• Number of mic/mono channels: 2
• Number of stereo channels: 1
• Mic input: 2 mV, balanced, 2 x XLR
• Line input: 100 mV (stereo), 2 x 6.3-mm jack L/R, 60 mV (mono), 2 x 6.3-mm jack
• Aux input: 400 mV, 1 x 6.3-mm jack L/R
• Master output: 500 mV, 1 x 6.3-mm jack L/R
• Effects send: 4.4 V, 1 x 6.3-mm jack
• Headphones: ≥ 8 Ω, 1 x 6.3-mm jack
• Frequency response: 20–20,000 Hz
• Total harmonic distortion: less than 0.03%
• Signal-to-noise ratio: greater than 83 dBA
• Bass EQ: ±15 dB/80 Hz
• Treble equalization: ±15 dB/12 kHz
• Phantom power: +48 V
• Power supply: USB or included AC adapter
• Operating temperature range: 0–40 °C
• Width: 228 mm
• Height: 53 mm
• Depth: 205 mm
• Weight: 1.4 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication
