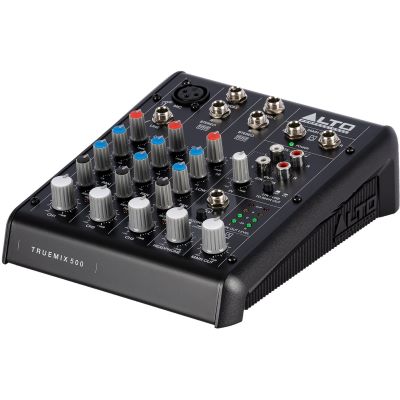

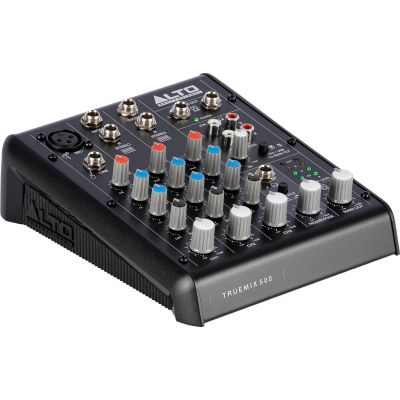

ALTO TrueMix 500

Easy-to-use analog audio mixer for any application.

The Alto Professional TrueMix 500 is a portable mixer with built-in USB stereo audio interface that provides all the essential features you need for home recording, livestreaming, podcasting, or performing. There are five analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The microphone input channel offers an XLR input, which is great for connecting a dynamic microphone or a condenser microphone that requires phantom power. This channel also has a balanced 1⁄4" line input for connecting instruments and other line signals. There are also two stereo input channels, each with two balanced 1⁄4" TRS inputs. These inputs are perfect for your line-level audio sources. All channels feature dual-band EQ with color-coded controls that let you adjust for the perfect sound, even in low-light conditions. Connecting the TrueMix 500 to your computer is also lightning fast, with plug-and-play connectivity on Windows and macOS. The TrueMix 500 is the perfect companion for straightforward mixing and recording of audio on the go.

Features:

• ALTO - TrueMix 500
• USB I/O for audio playback and stereo recording
• 1/4" main, tape and headphone outputs
• Microphone input channel with 18 V phantom power and balanced line input
• Two stereo input channels with 1/4" TRS balanced jacks
• Two-band EQ on all channels
• 2-track inputs with assignable routing: main mix or headphone output
• Frequency response: 20 Hz - 22 kHz
• THD+N: All inputs: < 0.005% (@ 4 dBu, 1 kHz)
• Maximum voltage gain: 74 dB (mic input to main output and 2TK output); 80 dB (mic input to phono output); 30 dB (line input to main output)
• SNR (signal-to-noise ratio): All inputs: > 110 dBu
• Gain range: Microphone inputs (channel 1): 0 - 44 dB Line inputs (channel 1): 12 - 30 dBu Line inputs (channels 2/3): 0 dBu
• Impedance Microphone: Inputs: 3.9 kΩ; All other inputs: > 10 kΩ 2TK output: 1 kΩ; All other outputs: 120 Ω
• Crosstalk: Adjacent inputs: < -80 dB @ 1 kHz; Inputs to outputs: < -75 dB @ 1 kHz (stereo L/R, channel 1, hard left or right biased).
• Equalization: High: ±15 dB @ 12 kHz; Low: ±15 dB @ 80 Hz

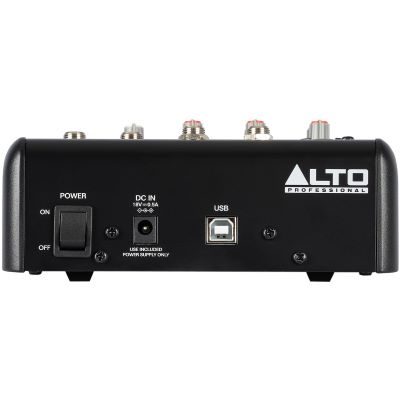

• Connectors: (2) 6.35 mm TRS outputs; (2) 6.35 mm TRS stereo L/R inputs; (1) 6.35 mm TRS headphone output; (1) 6.35 mm TRS mono input; (1) XLR input; (1) stereo RCA L/R input; (1) stereo RCA L/R output; (1) USB type B input; (1) DC input

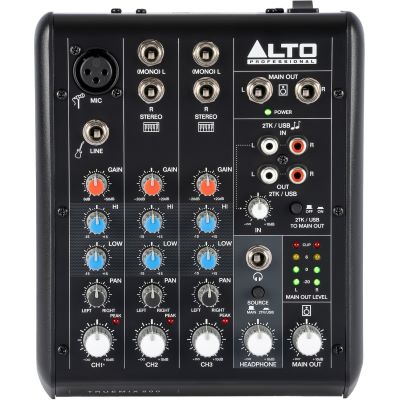

• Controls: (1) power switch; (6) volume controls (1 per input and output) ; (3) gain controls (1 per channel); (3) EQ Hi controls (1 per channel); (3) EQ Low controls (1 per channel); (3) stereo pan controls (1 per channel); (2) lock buttons
• Indicators: (1) Power LED, (3) Peak LEDs, (8) Main Out indicator LEDs
• Main Mix: Main Output: (2) 1/4" (6.35 mm) balanced TRS, +22 dBu max output; 2TK Output: (2) unbalanced RCA, 0 dBu max output; Headphone Output: (1) stereo 1/4" (6.35 mm) TRS, 160 mW @ 32 Ω
• Dimensions: (width x depth x height) 159.5 mm x 193 mm x 66 mm
• Weight: 0.9 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication
