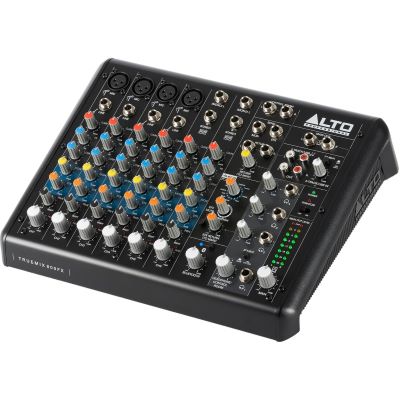

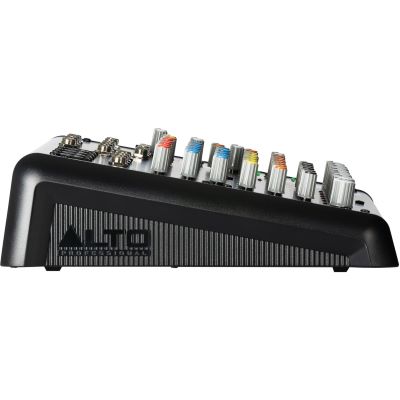

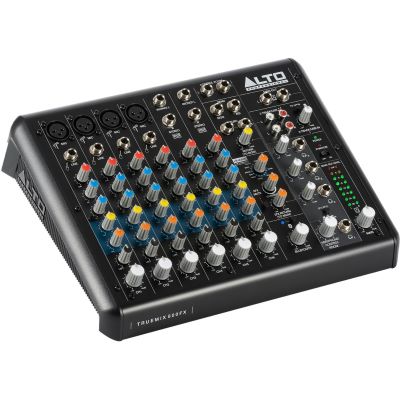

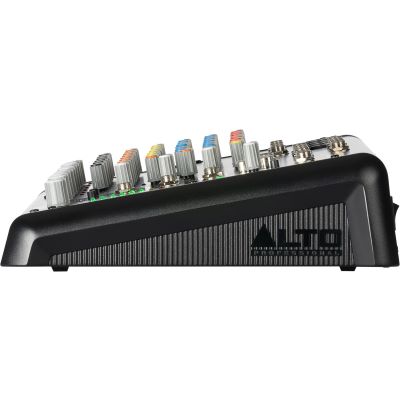

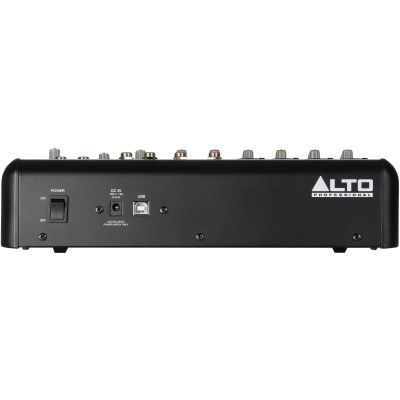

ALTO TrueMix 800FX

Easy-to-use analog audio mixer with built-in effects from Alesis.

The Alto Professional TrueMix 800 FX is a portable audio mixer with built-in DSP effects that provides all the essential features you need for home recording, livestreaming, podcasting, or performing. The TrueMix 800 FX features 16 effects, including chorus, flanger, and a selection of high-quality delays and reverbs. There's also a convenient Bluetooth channel for easy streaming from your personal devices. A unique feature of the TrueMix series, the Bluetooth channel also supports feedback-free phone pairing thanks to Mix-Minus technology. There are eight analog inputs with high-headroom circuitry for minimal noise and clipping in your signal. The four microphone input channels offer XLR inputs that are great for connecting dynamic microphones or condenser microphones with 48V phantom power. These channels also feature balanced ¼" line inputs for connecting instruments and other line-level signals. There are also two stereo input channels, each with two balanced ¼" TRS inputs. These inputs are perfect for your line-level audio sources. All channels feature dual-band EQ with color-coded knobs that let you adjust for the perfect sound, even in low-light conditions. Additional knob caps are even included to help you customize the look of your TrueMix 800 FX. Connecting the TrueMix 800 FX to your computer is also lightning fast, with plug-and-play connectivity on Windows and macOS. The TrueMix 800 FX is a compact, feature-packed audio mixer that's perfect for use on the go.

Flexible output routing

Whether you're recording a podcast, live streaming online, or making music at home, it's important to be able to hear yourself and easily route your audio. The TrueMix 800 FX has a variety of output and routing options to cover every scenario. There are four headphone outputs, each with its own volume control. If you want to send your audio to another destination, such as an external monitor or effects unit, each channel is equipped with a send control, so you can always set the perfect mix. For recording, the USB output sends a copy of the main outputs to your computer, or you can connect the 2-track input/output to an external recorder, which can also be sent directly to your headphones. The TrueMix 800 FX has everything you need to have full control over your audio routing in any situation.

Features:

• ALTO - TrueMix 800FX
• USB I/O for audio playback and stereo recording
• Dedicated Bluetooth channel with mix-minus-return for feedback-free phone pairing
• Four headphone outputs with independent volume control
• 16 built-in Alesis Multi-FX with dedicated return channel
• 1/4" main, tape, and AUX outputs
• Four mic input channels with phantom power and balanced line inputs
• Two stereo input channels with balanced 1/4" TRS jacks
• Two-band EQ on all channels
• 2-track inputs with assignable routing: main mix or headphone output
• Eight-segment LED VU meter for precise level monitoring
• Additional knob caps included for additional adjustments
• Frequency response: 20 Hz - 22 kHz
• THD+N (Total Harmonic Distortion): All inputs: < 0.005% (@ 4 dBu, 1 kHz)
• Gain range: Mic inputs (channels 1-2): 0 - 50 dB Line inputs (channels 1-2): 15 dBu - 35 dBu Line inputs (channels 3-6): -20 dBu - +20 dBu
• Maximum voltage: gain 70 dB (MIC INPUT to MAIN MIX OUTPUT) 80 dB (MIC INPUT to CTRL ROOM / PHONES OUPTUT) 60 dB (MIC INPUT to MON SEND)
• SNR (Signal to Noise Ratio) All inputs: > 110 dBu
• Crossover Frequency: Adjacent Inputs: < -80 dB @ 1 kHz Inputs to Outputs: < -75 dB @ 1 kHz (stereo L/R, channels 1-2, hard left or right biased)
• Phantom power: +45 ~ +49V with switch control
• Impedance: Microphone inputs: 3.9 kΩ All other inputs: > 10 kΩ Aux outputs: 1 kΩ All outputs: 120 Ω
• Equalization: High: ±15 dB @ 12 kHz Low: ±15 dB @ 80 Hz
• Bluetooth: Profile: A2DP Module: Bluetooth 5.0 Operating frequency: 2402 MHz - 2480 MHz Range: 100 ft. / 30.5 m
• Connectors: (6) 6.35 mm (1/4") TRS outputs (6) 6.35 mm (1/4") TRS stereo L/R inputs (4) 6.35 mm (1/4") TRS headphone outputs (4) 6.35 mm (1/4") TRS mono inputs (1) standard RCA L/R input (1) standard RCA L/R output (4) XLR inputs (1) USB type-B input (1) DC input
• Controls: (1) Power switch (15) Volume controls (1 per input, 1 return, 1 EFX return, 1 2-track/USB in, 4 headphone outputs, 1 Bluetooth, 1 Main) (6) Stereo pan knobs (1 per input) (6) Mono volume knobs (1 per input) (6) EQ low knobs (1 per input) (6) EQ hi knobs (1 per input) (6) Gain knobs (1 per input) (4) Buttons (1-EFX mute, 1 Bluetooth, 2 source select) (1) Horizontal slide switch
• Indicators: (1) Power LED (6) Peak LEDs (1) Phantom LED (16) Main Out Meter LEDs (1) Bluetooth LED
• Power supply: DC Voltage: 18V, 1.2A Consumption: 18W
• Dimensions: 305 x 238.5 x 79 mm
• Weight: 2.04 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication
