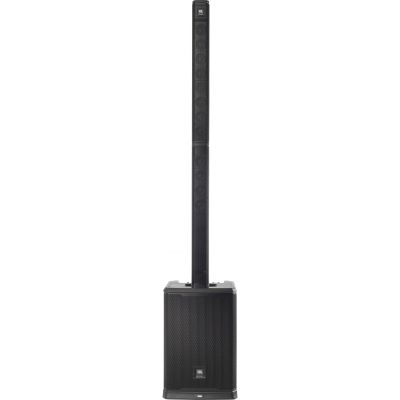

JBL PRX One

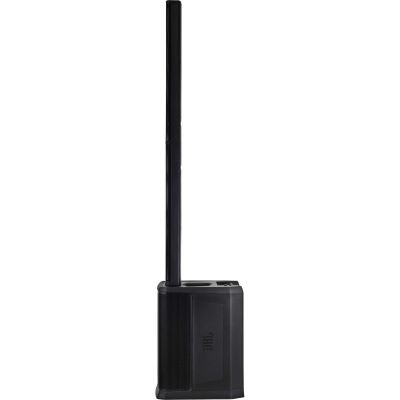

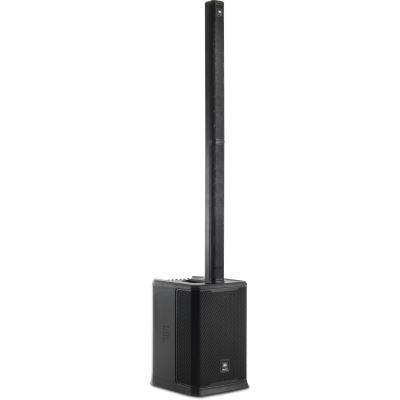

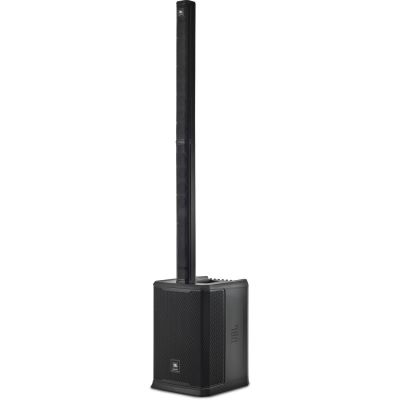

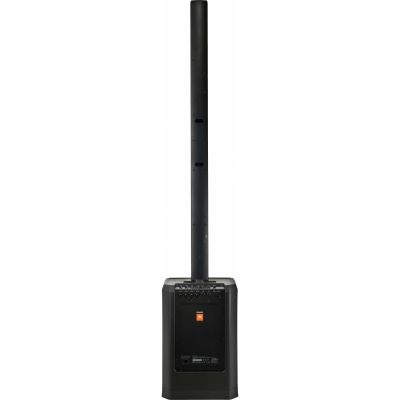

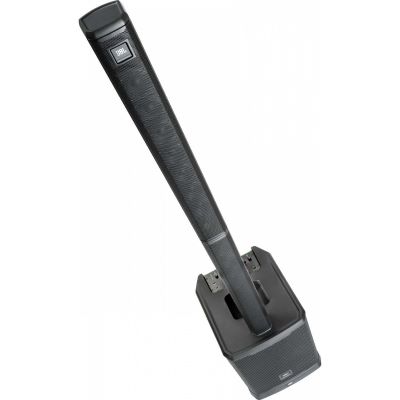

The JBL PRX ONE all-in-one column PA features an acoustically optimized column array with a 7-channel digital mixer, a full suite of professional DSP, best-in-class audio connectivity, Bluetooth functionality and JBL Pro Connect universal app control.

Enjoy unrivaled power and performance in a sleek, compact package: The PRX ONE delivers a stunning 130 dB maximum sound pressure level with even front-to-rear dispersion, thanks to the specially designed 12-tweeter column array with JBL AIM acoustic technology, 12-inch bass-reflex woofer and built-in 2,000-watt amplifier (peak).

With the PRX ONE, you can achieve great sound quickly and with fewer devices by utilizing the full range of professional Lexicon and dbx effects such as reverb, delay, compression and dbx DriveRack technology with Automatic Feedback Suppression (AFS Pro). Connect microphones, instruments, mobile devices and wireless rigs via the PRX ONE's versatile I/O (with dedicated phantom power, Hi-Z inputs and professional Neutrik connectors) and advanced Bluetooth 5.0 capabilities. Work faster and easier with an intuitive Soundcraft-designed dual-mode digital mixer that can be set to general mix functions or channel strip control, all controllable via an app or an integrated color LCD.

The PRX ONE is the ideal solution for DJs, musicians, venues, businesses, rental companies and houses of worship. It is the perfect solution for anyone looking for premium power, acoustic performance, creative control and connectivity in a sleek, full-featured column PA suitable for both installed and mobile applications.

Features:

• JBL - PRX One

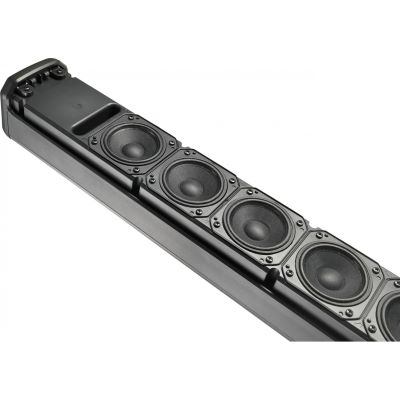

• Vertical array of 12 2.5-inch drivers delivers consistent, even HF response from front to back of the room
• Specially designed high-frequency drivers with copper-covered pole pieces to minimize distortion and provide smooth, natural high-frequency response
• JBL A.I.M. (Array Inumbration Mechanics) geometrically optimized array shading technology provides even coverage from front to back
• Wide 130° (H) x 30° (V) dispersion pattern ensures even coverage of the entire audience area
• Advanced crossover management and HF/LF coupling allow for more natural low frequency response and even reproduction across the entire frequency range

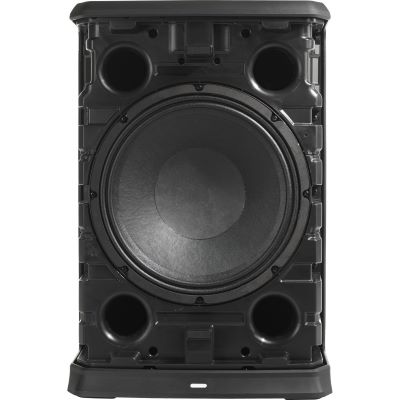

• 12-inch bass-reflex woofer extends low frequency response to 35 Hz
• Fully bridged Class D amplifier with 2,000 watts (peak), power factor correction and highly linear inductors ensures clean, efficient system performance, superior headroom, low distortion and protection against voltage spikes
• Four highly efficient, low-noise microphone preamps ensure a constant bandwidth at any gain level
• 130 dB maximum sound pressure level
• Frequency range -10: 35-20kHz; frequency range -3: 40-20kHz
• Integrated 7-channel digital mixer with dual operating mode gives the user full control over the input faders or individual channel controls such as bass, mid, treble and effect sends
• Powerful Lexicon effects engine with delay, reverb, chorus, echo and sub-synth, with presets for easy setup
• Three-stage DSP control offers multi-level user experience depending on skill level
• dbx DriveRack Inside technology with AFS (Automatic Feedback Suppression), 8-band master EQ, system limiter and gates and compressors on each channel for unrivaled dynamics control
• Soundcraft one-touch ducking ensures that speech is always heard
• Simple, intuitive color LCD display provides easy access to all PRX ONE features
• 8 user presets to instantly optimize system sound
• Robust audio connectivity: 4 XLR combo, 2 Hi-Z, 1 1/8-inch/BT audio and 1 XLR pass thru inputs
• 2 USB 2.0 ports for charging devices and powering AKG wireless systems (with optional JBL adapter cable)
• Two channels with true +48V phantom power extend microphone support
• Bluetooth 5.0 connectivity enables remote control of up to 10 devices with the JBL Pro Connect app
• Full app control with JBL Pro Connect
• Rugged housing withstands the rigors of the road
• Optional bracket and adapters allow the array to be wall or truss mounted independently of the subwoofer for fixed installations
• Computer-modeled ComfortGrip handle simplifies transport

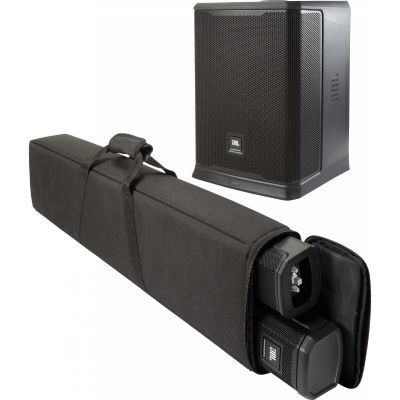

• Supplied nylon carry bag for the array
• Attractive, discreet form factor
• Weight: 25.7 kg

Specs:

• Power: 1000 W
• Housing Material: Wood
• Pole Mount: no
• Woofer: 1 x 12
• Tweeter: 1 x 2,5
• Set Offer: no
• Bluetooth: Yes
• Type: Full Range Speaker
• Theme: PA and Sonication
