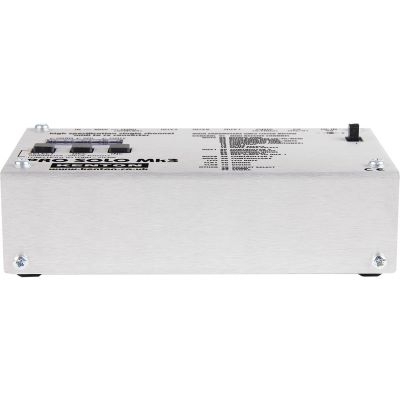

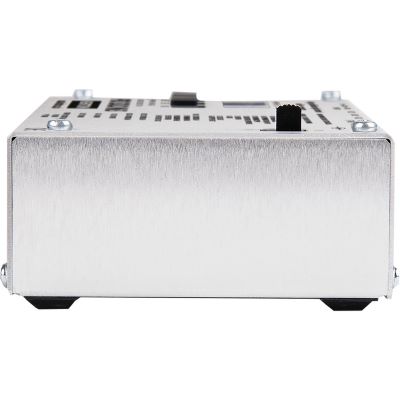

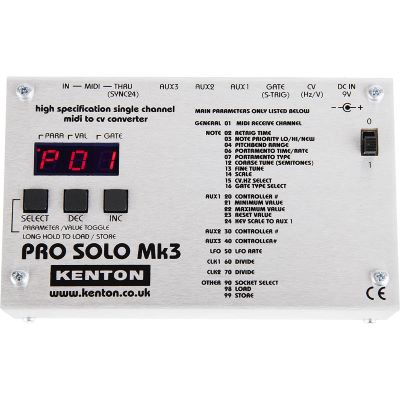

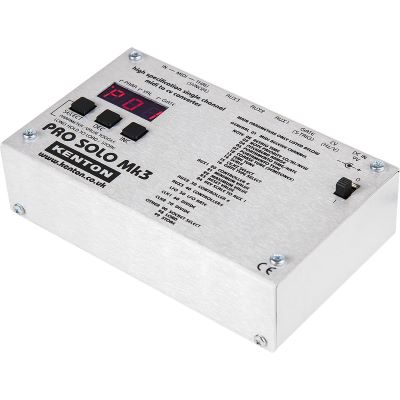

Kenton Pro SOLO Mk3 Converter

The Kenton PRO-SOLO Mk3 converts MIDI data into CV, gate and clock signals. The high-resolution 16-bit D/A converter ensures optimum tuning stability and extremely fast response times. The MIDI-Thru input can also be used as a DinSync output or via a special cable (not included), two more CVs to the outside.

Features:

• Aux 2 & 3 are now also available for jack sockets
• Aux 2 & 3 are now continuously adjustable voltages
• added ADSR for use with synths and modules
• Drum trigger mode added to the aux outputs
• 2 independent clocks (as with Modular Solo), can be routed to any of the auxes and to DIN synchronization
• Aux have adjustable slew rate (rise/fall time) to smooth out slider jumps
• increase pitch bend range to 48 notes up and down
• with MIDI Thru connection switched to Sync, Sync24, Clock 1 & Clock 2 modes are available
• MIDI In
• MIDI Thru (alias DIN Sync Out or Aux 2+3)

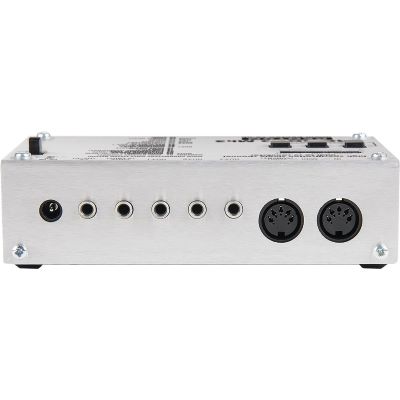

• Outputs: CV, Gate, AUX1, AUX2, AUX3
• Weight: 82 g
• Dimensions: 130 x 97 x 40 mm

Specs:

• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• USB-MIDI: MIDI
• Color: White
• Type: MIDI Interface
• Theme: Recording and Studio
