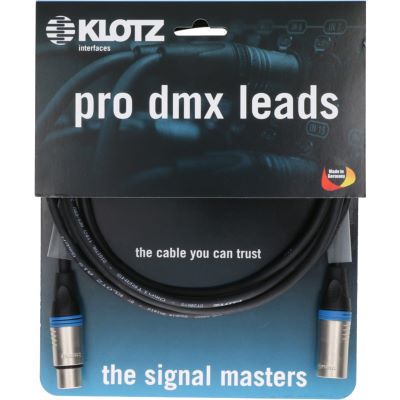

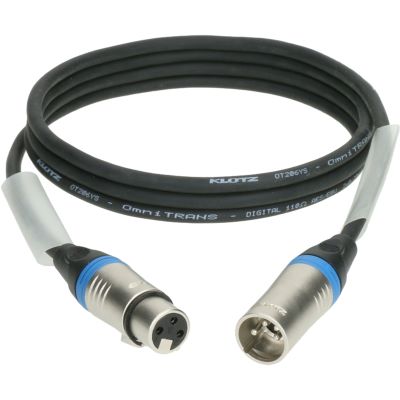

Klotz LX3-3X1K2-25.0 DMX Kabel OT206Y schwarz 25m

The Klotz LX3-3X1K2-25.0 DMX cable is equipped with XLR 3p. Connectors and transmits digital DMX lighting control signals extremely reliably. Low capacitance and attenuation as well as dense shielding with spiral shielding guarantee interference-free signal transmission, which is so important in the digital sector, even over long distances. The tightly stranded wire pairs increase immunity to external electromagnetic interference. The OT206Y cable used has a characteristic impedance of 110 Ω, which is mandatory for digital signals. A robust PVC outer jacket with a diameter of just 6.0 mm ensures mechanical stability and excellent flexibility.

Features:

• Cable length: 25m
• Cable type: OT206YS, conductor cross-section 0.22 mm², min. bending radius 30 mm
• High-quality copper conductors (purity of 99.95%)
• Shielding: AL/PET foil, tinned copper drain wire, tinned copper braiding (85% coverage)
• Jacket: PVC, matt

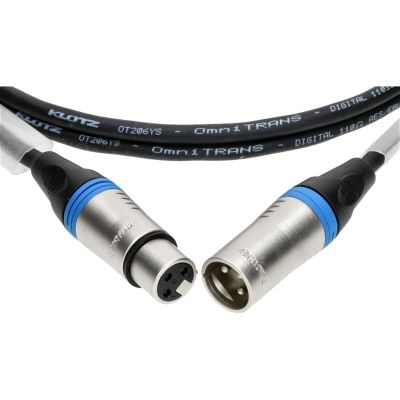

• Connection 1: XLR 3p. female
• Connection 2: XLR 3p. male
• Contacts: silver-plated

Specs:

• Port A: XLR female
• Port B: XLR male
• Usage: DMX cable
• Cable Length: 25 m
• Color: Black
• Type: Cable
• Theme: Cables and Pins
