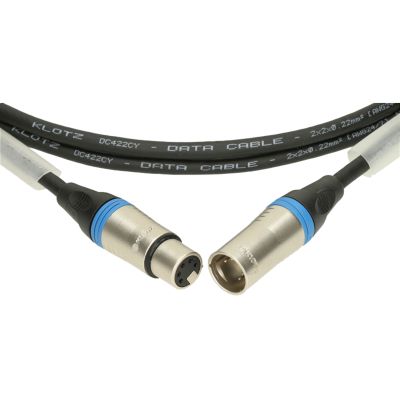

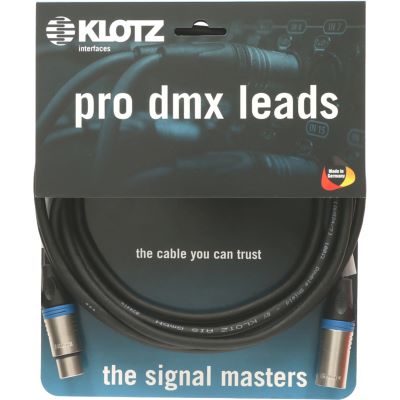

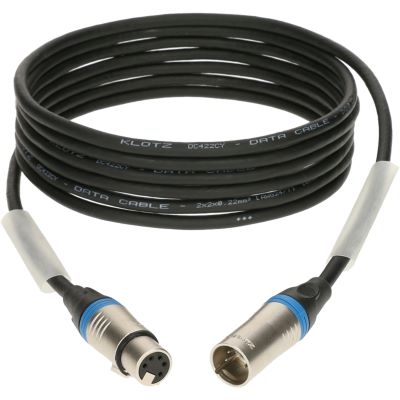

Klotz LX6-5X1K2-00.6 DMX Kabel DC422CY schwarz 0.6m

The LX6-5X1K2-00.6 DMX cable with balanced, tightly stranded wire pairs is an interference-resistant DMX cable with precisely defined transmission characteristics, where all 5 pins of the XLR are wired, e.g. to send two DMX signals over one cable. With an adapter, the signals can be split again as desired. The solid construction with a jacket of resilient special PVC and a shield of tinned copper braiding including foil ensures smooth performance and optimal EMC values.

Features:

• Length: 0.6m
• Cable type: DC422CY, 2 x 2 x 0.22 mm², double shielding
• Jacket: special PVC for extreme loads
• Coding ring: blue
• Connector 1: XLR 5p. female (nickel plated)
• Connector 2: XLR 5p. male (nickel plated)
• contacts: silver plated
• incl. transparent heat shrink tubing

Specs:

• Port A: XLR male
• Port B: XLR male 5-pin
• Usage: DMX cable
• Cable Length: 0.6 m
• Color: Black
• Type: Cable
• Theme: Cables and Pins
