Korg opsix Module FM Synthesizer

The opsix module is the space-saving modular version of the opsix mkII and has the same controls and features as the innovative Altered FM synthesizer from KORG, with the exception of the keyboard and pitch/modulation wheels. Its clever operator mixer makes FM synthesis more intuitive than ever before, as each operator is assigned a fader and a knob for adjusting volume and tuning. Color-coded illumination of the controls indicates at all times whether a modulator or a carrier is being manipulated. To define the basic characteristics of a sound, 40 different algorithms are available for each sound program, although you can also create your own user algorithms if you wish. As if that wasn't enough, the Altered FM synthesis also offers additional operator modes such as ring modulation, filter, filter FM or wave folder, making the opsix a true monster synth that is capable of covering an enormous range of classic and completely new sounds. The powerful multimode filter and the three top-class effect blocks offer additional possibilities for further sound shaping. Thanks to its polyphony of 80 voices, even more expansive sound experiments are no obstacle for the opsix module, and even classic FM pianos can be played as full and natural-sounding as you've always dreamed of with an optional damper pedal. Thanks to the virtual patchbay, up to 12 custom routings can be created for each program, allowing even more freedom in sound design. The step sequencer with 16 steps can process polyphonic sequences with up to six notes per step as well as motion sequences with up to six different lanes. A clever randomize function allows the creation of new sounds on a random basis. The opsix module also supports the MIDI 2.0 property exchange standard and polyphonic aftertouch, making it an ideal complement to the KORG Keystage MIDI 2.0 keyboard. For use as a desktop module, you can choose between two different installation angles. Alternatively, the opsix module can also be installed in a conventional 19" rack to save space in 4 height units.

Features:

• Korg - opsix Module FM Synthesizer
• Desktop/rack version of the popular Altered FM synthesizer
• 6 forms of synthesis in one instrument (subtractive synthesis, semi-modular synthesis, analog modeling, waveshaping, additive synthesis and classic FM synthesis)
• 80 voices
• 6 operators
• 40 algorithms + user algorithms
• Intuitive operator mixer
• 21 waveforms
• Multimode filter with 11 different filter types
• 3 ADSR envelopes
• 3 LFOs with 23 waveforms
• 3 effect blocks with 30 effect types
• Step sequencer with 16 steps
• Polyphonic motion sequencing for up to 6 lanes
• Flexible modulation matrix with 12 possible routings
• Arpeggiator with 7 patterns
• 500 program memories (250 presets, overwritable + 250 user programs)
• 64 favorite memories
• Inspiring randomize function for creating new sounds at random

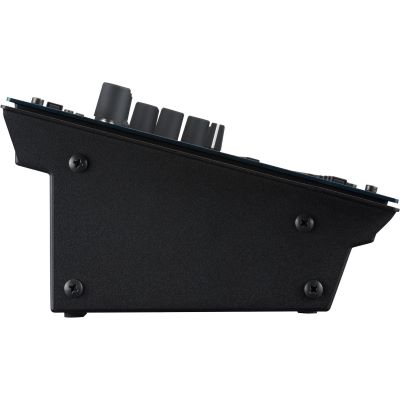

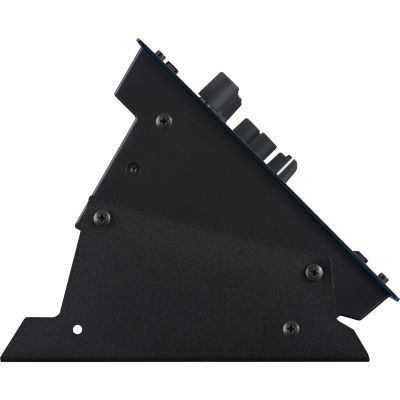

• Two different installation angles when used as a desktop module
• Can be mounted in a 19" rack (4 U)
• Fully compatible with opsix, opsix mkII, opsix SE / SE Platinum and opsix native

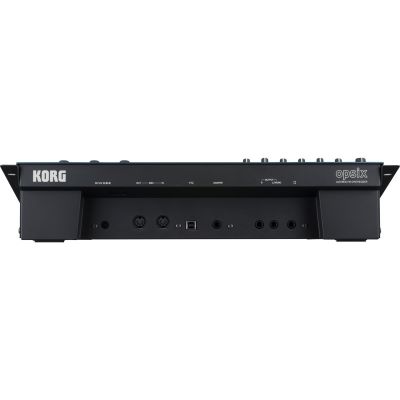

• Connections: Headphone output, L/MONO, R outputs, damper pedal input, MIDI IN/OUT, USB type B
• Power supply: External power supply unit (DC 12 V, included)
• Power consumption: 5 watts
• Dimensions (W x D x H): 482 x 172 x 104 mm
• Weight: 1.7 kg

Specs:

• Color: Multi-Colored
• USB-MIDI: USB and MIDI
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Type of sound generation: digital
• Type: Synthesizer
• Theme: Recording and Studio
