Lab4Music Lineup6

Lab4Music Lineup6 - Professional backing track player with 6 MONO outputs

The Lab4Music Lineup6 is the perfect solution for musicians, bands, DJs and show productions that require precise and stable control of backing tracks. With its 6 separate MONO audio outputs, 64 GB of internal memory and comprehensive MIDI functions, the Lineup6 enables complex live setups and seamless integration into existing stage or studio systems.

Independent audio outputs for maximum control

Whether for individual monitor mixes, FOH signals or in-ear setups - the six independent MONO outputs allow precise distribution of your backing tracks per song. Each output can be assigned to a separate audio track, allowing complex arrangements to be reproduced clearly and without loss - ideal for professional live situations.

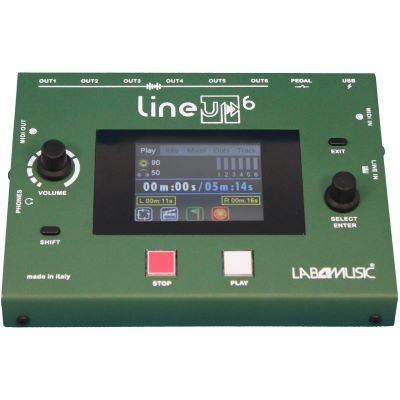

Intuitive control with touchscreen & encoder

The Lineup6 is operated via a high-resolution TFT touch display in combination with a rotary encoder. This allows you to control volumes, mute status, markers and MIDI commands directly during the performance. Playlists, setlists and song markers can be conveniently managed - even spontaneously during the show.

64 GB memory for large show libraries

With the integrated 64 GB flash memory, Lineup6 offers enough space for extensive WAV files in 48 kHz / 16-bit quality. This means that even complex shows with numerous songs and tracks can be easily prepared and quickly called up.

MIDI functions for perfect synchronization

Thanks to comprehensive MIDI support, the Lineup6 can be easily integrated into existing setups - including MIDI start/stop, program changes, control changes and synchronization of external MIDI-capable devices. This gives you full control even in complex live setups.

Play-along option & USB power supply

An additional stereo line input and a headphone output enable convenient play-along training or individual monitoring. Power is supplied via the USB port (5V DC), which enables use with mobile power sources (e.g. power banks).

Conclusion: Compact all-rounder for the modern live setup

The Lab4Music Lineup6 offers professional backing track management in a robust, compact device. With intuitive operation, a large memory, comprehensive MIDI functions and six separate outputs, it is the ideal companion for live musicians, music schools and stage productions. Flexible, reliable, well thought-out - made for performance.

Features:

• 6 separate MONO audio outputs for individual mixes
• 64 GB internal memory for large backing track libraries
• Intuitive operation via color TFT touch display and rotary encoder
• MIDI functionality incl. synchronization of external devices
• Create and manage playlists, scenes and markers
• Stereo line input & headphone output for play-along
• Supported audio formats: WAV, 48 kHz / 16-bit
• Power supply: USB port (5V DC)
• Scope of delivery: Lineup6, USB cable, quick start guide
• Dimensions: 173 × 120 × 40 mm
• Weight: approx. 700 g
• Color: Green

Specs:

• Color: Green
• Rack Mountable: no
• Line Inputs: 1
• Line Outputs: 6
• Mic Inputs: 0
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: none
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio
