LD Systems Dave 15 G4X aktiv Anlage

Whether as a DJ, live combo, solo entertainer or at the next party: for daily live practice, you need an all-round PA that convinces on all levels: with a professional sound for different areas of application, with a variety of connections and accessory options for fast and flexible setup on site, as well as with maximum reliability. To put it in a nutshell: your PA has to give its best around the clock.

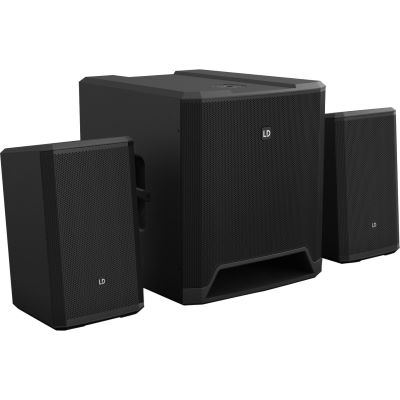

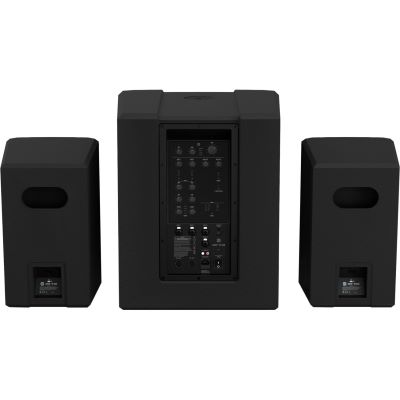

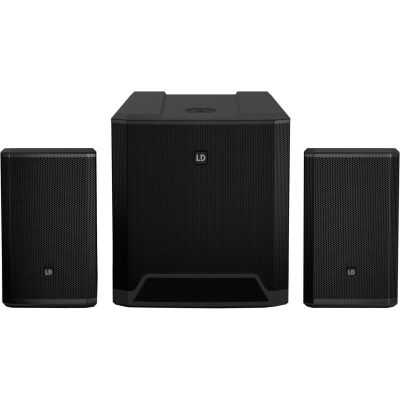

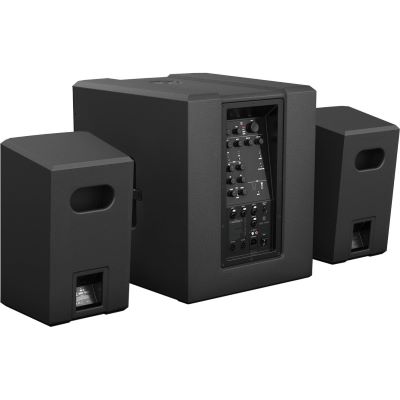

With the DAVE 15 G4X, the search is over. The active compact PA consisting of a 15'' subwoofer and two 8" satellites (total power: 2060 W peak) not only offers a new, modern design with numerous handling optimizations, but also an integrated 6-channel mixer with all important input options. This allows you to create a wide variety of setups and combinations of instruments, vocals and feeds - wired and wireless thanks to integrated Bluetooth for easy streaming via a smartphone or tablet.

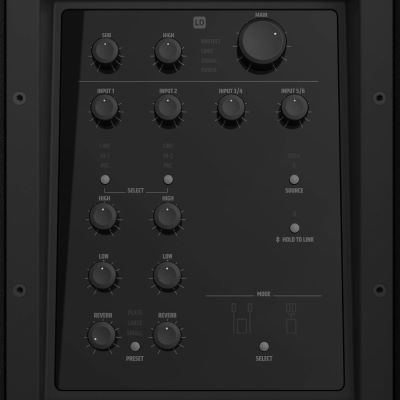

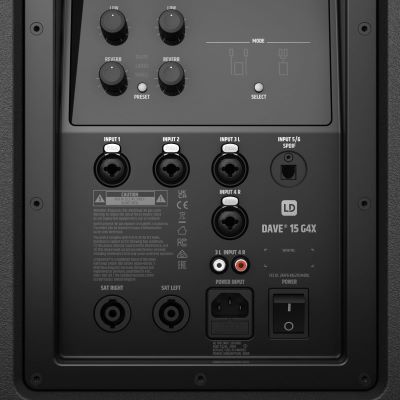

The first two channels of the mixer are designed as channel strips. Here you can connect either a microphone, a high-impedance instrument - for example guitar and bass - as well as line-level sources. A 2-band EQ for bass and treble as well as an adjustable reverb with three presets (small, large, plate) are available for sound shaping. Channels 3+4 are designed as stereo line inputs and are suitable for keyboards, synthesizers, drum machines or small e-drum kits, among others.

The DAVE 15 G4X becomes even more versatile when you use the digital SPDIF stereo input or the Bluetooth connection to expand your performance setup with a media player, computer or smartphone, through which you can play and control backing tracks, sound effects or break music. The inputs (channels 5+6) can also be used for a karaoke system or simply to play back a TV set in the sports bar with official sound.

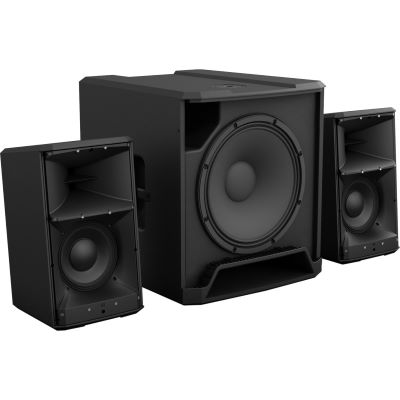

Speaking of official sound: The DAVE 15 G4X was designed and developed from scratch. This benefits not only instruments and music, but also speech intelligibility when the PA is used for speech reinforcement. The acoustic concepts include new compression drivers and waveguides for a homogeneous and directional dispersion behavior, as well as FIR filters and state-of-the-art DSP technology for a transparent, coloration-free sound that you are not used to from a DAVE so far. The subwoofer, for example, has been equipped with a larger voice coil and an optimized bass reflex system to reduce ventilation noise to a minimum.

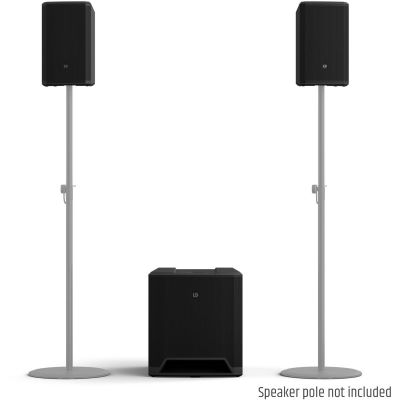

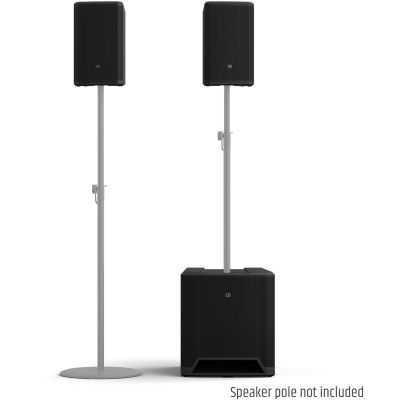

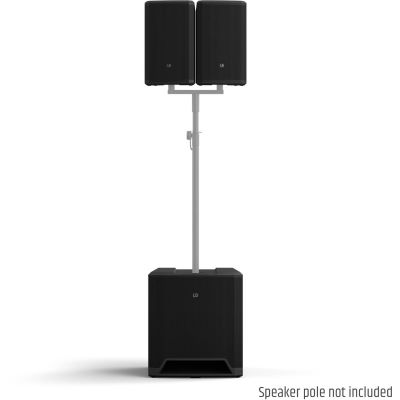

In general, the DAVE 15 G4X is predestined for flexible use. The selectable mode presets for classic stereo use or the setup with two closely spaced satellites on a T-stand above the subwoofer contribute to this - the DAVE G4X convinces sonically in all configurations. For example, the last described preset allows interference-free clustering of two satellites by a special M/S split and reproduction of the stereo signal for more headroom and directivity.

Features:

• LD Systems - Dave 15 G4X active system.
• Active 2.1 PA with 15'' subwoofer and 2x 8'' satellites
• Total power: 2060 W
• Integrated 6-channel mixer with EQ and reverb
• Selectable input for microphone, Hi-Z or Line
• Digital SPDIF TOSLINK stereo input
• Wireless streaming via Bluetooth
• Homogeneous dispersion characteristics thanks to newly developed waveguide
• DynX® DSP for distortion-free playback
• Selectable presets depending on subwoofer-satellite setup
• Durable polyurea coating for subwoofer and satellites

Technical Data:

General:

• Color: Black
• System power (RMS): 1030 W
• System power (peak): 2060 W
• Max. SPL (Avarage): 124 dB
• Max. SPL (Peak): 130 dB
• Frequency Response (-10dB): 33 - 20000 Hz
• Crossover frequency: 105 Hz
• Dispersion angle (H x V): 90° x 30 °
• Weight: 53.9 kg

Subwoofer:

• Size woofer: 15 "
• Size woofer: 381 mm
• Magnet woofer: Ferrite
• Woofer brand: Custom Made
• Voice coil woofer: 3 "
• voice coil woofer: 75 mm
• cabinet type: bass reflex
• cabinet material: 15 mm multiplex, 18 mm multiplex
• cabinet finish: polyurea
• width subwoofer: 515 mm
• height subwoofer: 575 mm
• Depth subwoofer: 585 mm
• weight subwoofer: 34,5 kg
• Features subwoofer: 3 reverb presets, 6 channel mixer, Bluetooth, cluster / stereo preset, M20, SPDIF
• Carrying handles: 2

Mid/Hi System:

• Midrange driver size: 8 "
• Size midrange driver: 203.2 mm
• Midrange driver magnet: Ferrite
• Midrange driver brand: Custom Made
• Voice Coil Midrange: 1,5 "
• Voice Coil Midrange: 38,6 mm
• Horn: CD Horn
• Size tweeter: 2 x 0.5 "
• Tweeter size: 2 x 12.7 mm
• Magnet tweeter: Neodymium
• Tweeter brand: Custom Made
• Voice coil tweeter: 1 "
• Voice coil tweeter: 25.4 mm
• Impedance Mid/Hi system: 4 Ohm
• Speaker terminals Mid/Hi system: 1

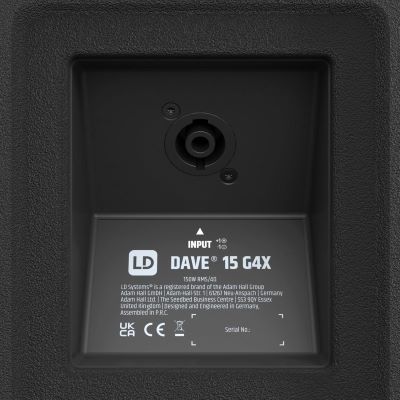

• Speaker connection Mid/Hi system: Speakon compatible
• Enclosure type Mid/Hi system: Bass reflex
• Carrying handles Mid/Hi system: 1
• cabinet material Mid/Hi system: 12 mm multiplex, 15 mm multiplex
• Cabinet surface Mid/Hi system: Polyurea
• Width Mid/Hi system: 275 mm
• Height Mid/Hi system: 470 mm
• Depth Mid/Hi system: 260 mm
• Weight Mid/Hi system: 9,7 kg
• Features Mid/Hi system: dual - tilt flange, midrange waveguide

Amplifier module (integrated in the subwoofer):

• Amplifier: Class D
• Amplifier power subwoofer (RMS): 500 W
• Amplifier power Mid/Hi (RMS): 2 x 265 W
• Protection circuits: Short circuit, limiter, overload
• Cooling: Passive
• Operating temperature: 0°C - 40 °C
• Humidity range: < 80 % ( non-condensing )
• Controls: Input Type, Input Volume, Low / High EQ, Main Volume, Mono Mode, Power, Reverb, Sub / High level
• Display elements: Limit, Power, Protect, Signal
• Power supply connector: IEC
• Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz
• Power consumption: 400 W
• Multi Inputs: 2 x Switchable (MIC, LINE, HI-Z)
• Multi Input connectors: Combo XLR
• Line inputs: 2
• Line input connectors: Combo XLR, RCA
• Digital inputs: 2
• Digital input connectors: SPDIF
• Speaker outputs: 2
• Speaker output connectors: Speakon compatible
• Bluetooth standard: A2DP
• Bluetooth audio decoder: SBC

Specs:

• Power: 2060 W
• Housing Material: Multiplex
• Pole Mount: yes
• Woofer: 1 x 15
• Tweeter: 2 x 8
• Set Offer: no
• Bluetooth: Yes
• Type: PA System
• Theme: PA and Sonication
