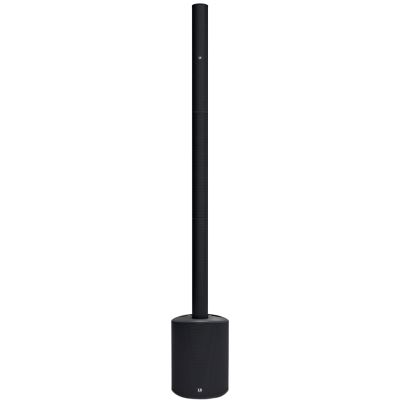

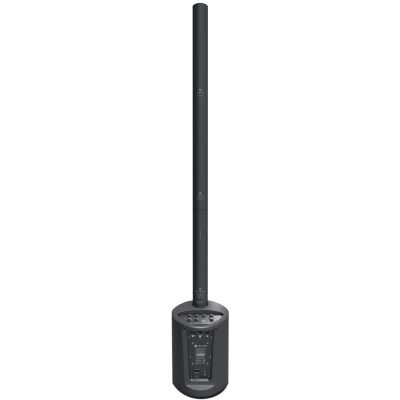

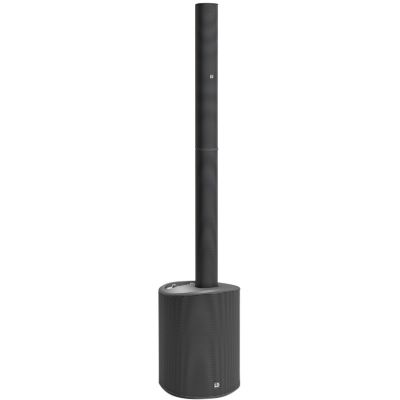

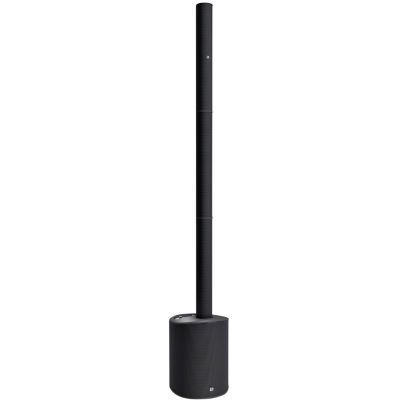

LD Systems Maui 5 Go 100

Perfectly equipped all around, the MAUI 5 GO 100 is the ultimate system for presenting crystal clear, powerful sound anywhere. The ultra portable battery-powered column PA is powered by a powerful lithium-ion element that delivers energy for up to 12 hours of playtime. The charger is integrated into the subwoofer, and an external charging dock is available as an accessory. Inputs for microphone, instruments and line signals as well as Bluetooth® stereo streaming make the MAUI® 5 GO 100 the ideal system for street musicians, music and voice playback at private and business events and all mains-independent applications.

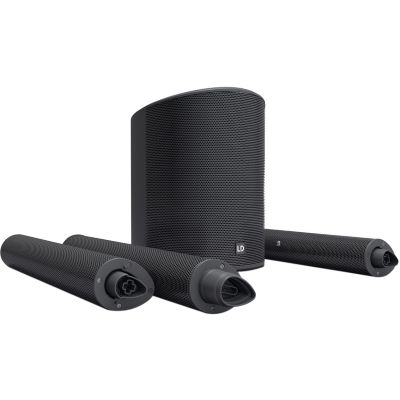

Due to its low weight of just under 12.4 kg, the four-piece construction can be transported ultra-lightly and set up ready to play in seconds thanks to special multipin connectors. The line array arrangement of the drivers achieves an extremely high coverage, while the wide dispersion and excellent feedback resistance of the system make separate monitor speakers superfluous. With 800 watts of peak power, the MAUI® 5 GO 100 is the loudest and best-sounding battery-powered PA system on the market, easily delivering sound to an audience of over 100 people.

For unsurpassed sound quality in all applications, the column system features LD Systems' LECC DSP with multiband limiter, equalizer, compressor and crossover. The integrated 4-channel mixer offers separate volume controls for the input channels, sum and subwoofer as well as a variable treble boost, allowing for fast and balanced sound adjustment. In addition, LD Systems' Quick-Swap Technology® allows instant, hassle-free replacement of the battery element for virtually unlimited uptime of the MAUI® 5 GO 100.

Features:

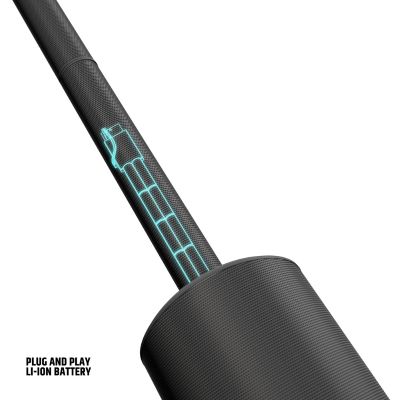

• Plug-and-play lithium-ion battery for up to 12 hours of continuous operation.
• Virtually unlimited power supply due to Quick-Swap-Technology®
• For sound reinforcement of more than 100 people
• Ultra-lightweight transportable 4-piece construction weighing just under 12.4kg
• Integrated 4-channel mixer
• Bluetooth® stereo audio streaming
• All-in-one column speaker for PA and monitor applications
• Increased range and wider room coverage with line array design

Specifications:

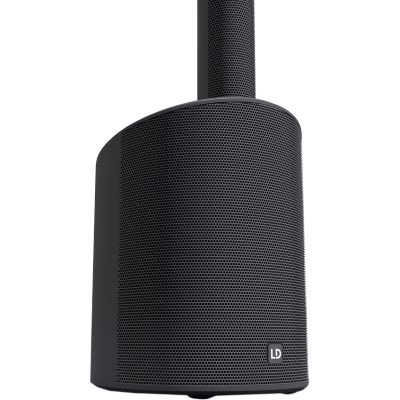

Features Woofer:

• Product type: PA complete systems
• Type: active
• Number of subwoofers: 1
• Colour: black
• Max. SPL (Peak): 120 dB
• Frequency response: 50 - 20000 Hz
• Dispersion angle (H x V): 120° x 20
• Total height: 1985 mm
• Weight: 12,4 kg
• woofer size: 203.2 mm
• magnet woofer: ferrite
• Woofer brand: Custom Made
• voice coil woofer: 50,8 mm
• Enclosure type: Bass reflex
• cabinet material: ABS plastic
• subwoofer width: 305 mm
• subwoofer height: 405 mm
• Depth subwoofer: 395 mm
• Weight subwoofer: 8,95 kg

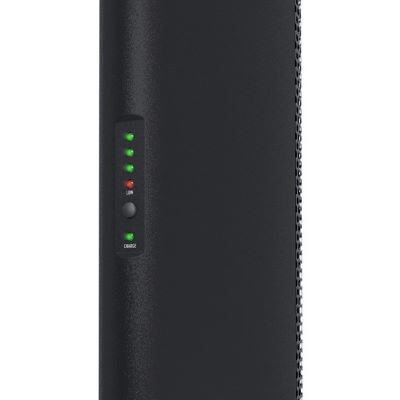

Battery:

• rechargeable batteries: 29.36V / 3200 mAh
• Battery manufacturer: LG Chem
• Battery technology: Lithium-Ion
• Battery life on full charge: 12 hours @ 98 dB (Lounge), 4 hours @ 120 dB (DJ Mode), 6 hours @ 104 dB (Live Music)
• Charge time: 1.5 hours to 80%, 2 hours to 100%

Mid/Hi System:

• Midrange driver size: 4 x 76.2 mm
• Midrange driver magnet: Neodymium
• Midrange driver brand: Custom Made
• Voice Coil Midrange: 25.4 mm
• Impedance Mid/Hi System: 4 Ohm
• Speaker Inputs: 1
• Speaker Input Connectors: Custom made multipin
• Enclosure type Mid/Hi system: closed
• cabinet material mid/hi system: ABS plastic
• width mid/hi system: 82 mm
• Height Mid/Hi system: 535 mm
• Depth mid/hi system: 105 mm
• Weight Mid/Hi system: 3.5 (3ps) kg

Amplifier module (integrated in the subwoofer):

• Amplifier: Class D
• Amplifier power system (RMS): 200 W
• Amplifier power system (peak): 800 W
• Protection circuits: DSP based multiband limiter, short circuit, overheat, overvoltage.
• Cooling: Convection
• Operating temperature: 0 - 50 °C

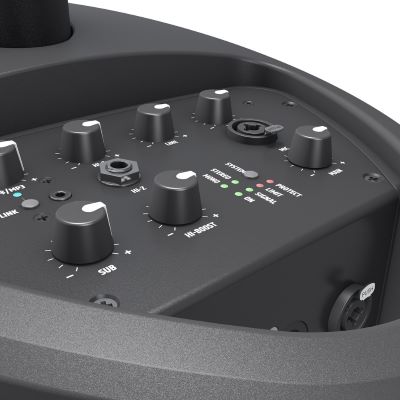

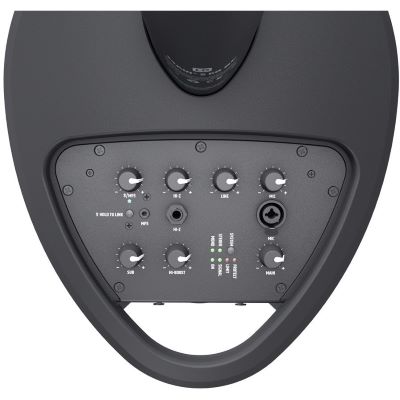

• Controls: BT Level, BT Pairing button, Line Level, Main Level, Mic Level, Mono/Stereo mode, MP3 / Hi-Z Level, On / Off, Sub Level.
• Display elements: Limit, On, Protect (protection circuit active), Signal
• Power supply: Switching power supply
• Operating voltage: 100 V AC - 240 V AC / 50 - 60 Hz, 200 V AC - 240 V AC, 50 - 60 Hz (automatic changeover)
• Power consumption: 300 W
• Line inputs: 2 x stereo
• Line input connectors: 6.3 mm jack, XLR
• Mic inputs: 1v
• Mic input connectors: 6.3 mm jack, XLR
• MP3 inputs: 1
• MP3 input connectors: 3.5 mm jack
• Hi-Z inputs: 1
• Hi-Z input connectors: 6.3 mm jack
• Speaker output connectors: 1
• Speaker output connectors: Custom made multipin

DSP Features:

• Word Width AD / DA Converter: 24 / 24 Bit
• Internal sampling frequency: 48 kHz

Specs:

• Power: 800 W
• Power: 800 W
• Housing Material: Plastic
• Housing Material: Plastic
• Pole Mount: no
• Pole Mount: no
• Woofer: 1 x 8
• Tweeter: 4 x 3
• Set Offer: no
• Airworthy: no
• Woofer: 1 x 8
• Bluetooth: No
• Tweeter: 4 x 3
• Number of channels: 3
• Set Offer: no
• Bluetooth: No
• Type: PA System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (3.87 MB)
