LD Systems U308 IEM In Ear Monitoring Set

Unlimited freedom of movement on stage and always the perfect monitor sound directly in your ear - that's why we developed the wireless U300® in-ear monitoring systems in Germany. With their clear, modern design and uncomplicated operation, they are an ideal choice not only for beginners. The reliable range up to 100 m and the low frequency response of 50 Hz - 16 kHz ensure professional performance. U300® in-ear sets are available for operation in 5 frequency bands: 584 MHz - 608 MHz, 655 MHz - 679 MHz, 823 MHz - 832 MHz + 863 MHz - 865 MHz, 470 MHz - 490 MHz or 514 MHz - 542 MHz. Six systems can be used simultaneously.

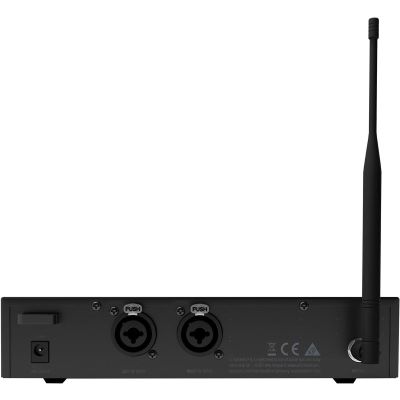

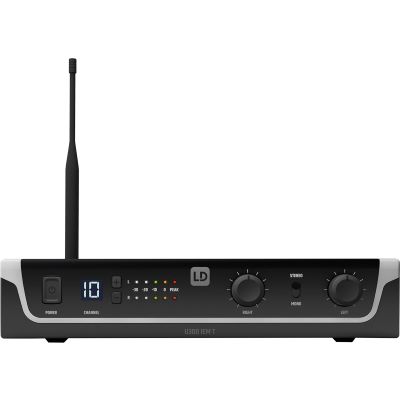

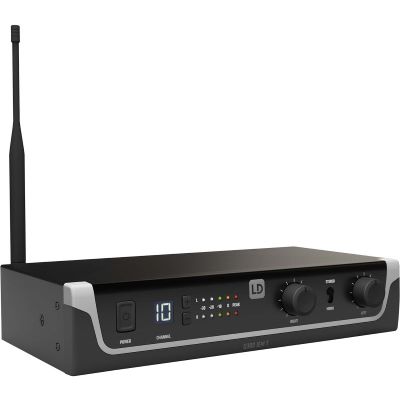

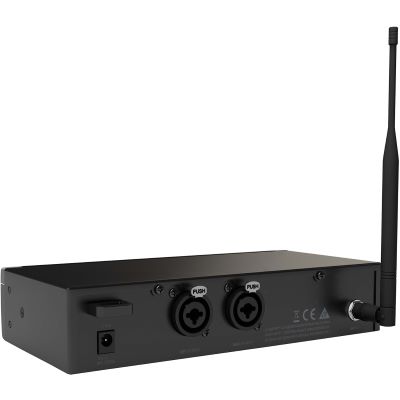

The U300® in-ear transmitters offer 12 transmission channels to choose from, an RF transmission power of 10 mW and can be operated in mono or stereo mode. Combo jacks serve as balanced XLR and unbalanced 6.35 mm jack inputs. The input level left and right can be adjusted separately, two LED chains indicate the audio signal strength.

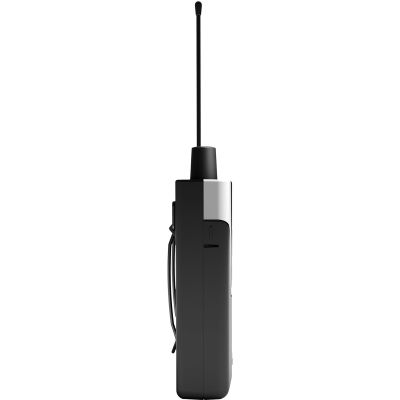

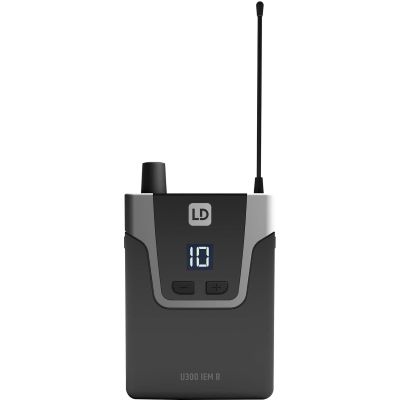

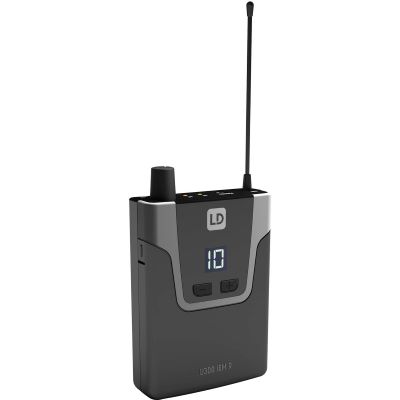

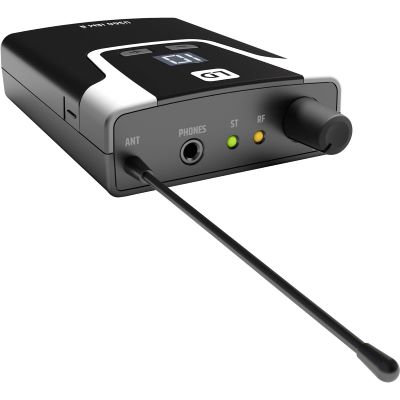

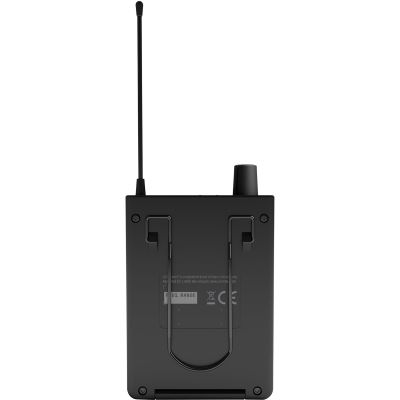

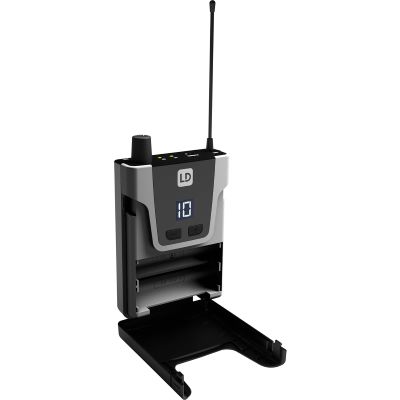

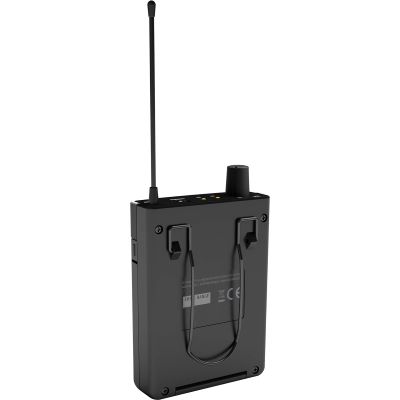

The U300® Bodypack Receiver features a mini jack socket for connecting earphones and displays for channel, stereo and low battery power. It reaches 10 hours running time with two AA batteries. A practical controller allows the individual adjustment of the monitoring volume during the performance. 19" rack mounting kit included in delivery.

Features:

• Reliable radio transmission up to 100 m range
• Low frequency response
• 12 selectable channels
• Stereo or mono mode to choose from
• Up to 6 systems can be used simultaneously
• 10 h bodypack runtime with two AA batteries
• Unlimited number of bodypacks adjustable to the same transmission frequency
• Channel and RF reception indicator on bodypack
• Transmitter in sturdy metal housing with stereo level indicator
• Removable antenna with BNC connector
• 19" rack mounting kit included in scope of delivery

Specs:

• Type: InEar System
• Theme: PA and Sonication
