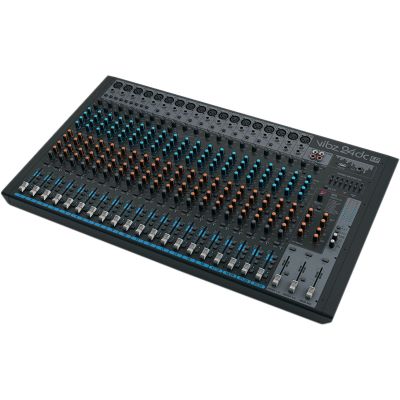

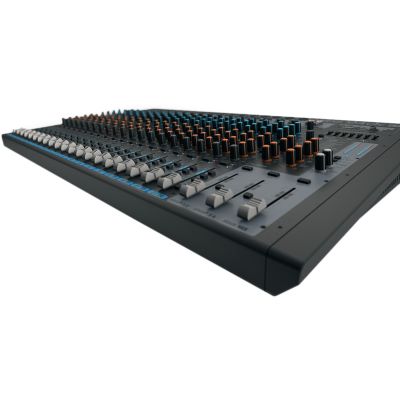

LD Systems VIBZ 24 DC

The flagship of the VIBZ series, the VIBZ 24 DC boasts exceptional audio quality and is therefore the ideal partner for home studios. and live missions.

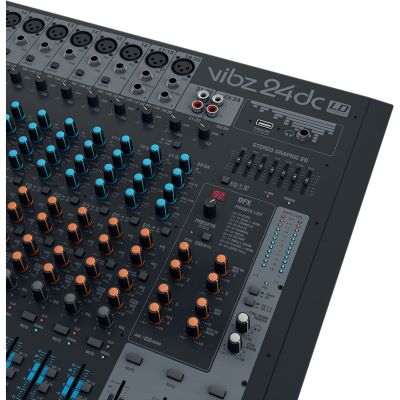

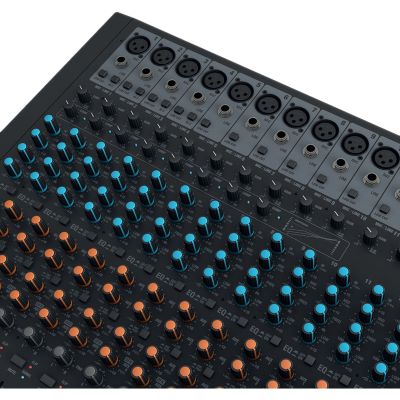

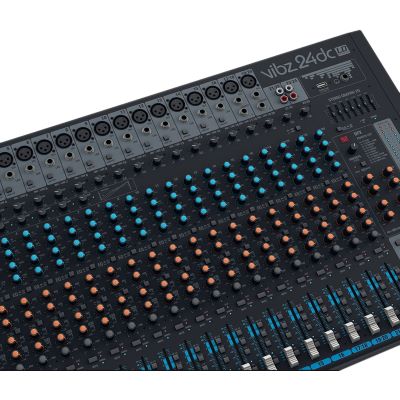

The mixer comprises 16 mono channels with 3-band EQ and semi-parametric midrange control, 4 stereo channels with 4-band EQ, 4 subgroups, a 24-bit digital effects processor with 100 presets and smooth, logarithmic 65mm faders. All channel strips have high-quality preamps with gain controls, 4 aux sends, mute, PFL and routing keys plus signal and clip LEDs. Two sends also provide pre-/post-fader switching for monitoring purposes or use as an effects path. The microphone and line inputs (XLR or stereo jack) of the mono channel strips are electronically balanced, the channel strips 1 - 8 each have an additional rotary encoder for controlling the integrated compressor and an insert for external effect devices. The Master Area offers balanced and unbalanced sum and separate subgroup outputs with precise level meter as well as control room and headphone outputs with level controls and a global 7-band graphics EQ. The power supply of the VIBZ 24 DC is provided by an integrated power supply unit operating with voltages of 100 - 240 V AC.

Features:

• 24-channel mixer with 16 mono and 4 stereo channel strips
• Balanced microphone and line inputs
• 3-band EQ with semi-parametric center control
• 4 aux sends, 2 switchable (pre- or post-fader)
• 8 mono channels with inserts and compressor
• Keys for channel routing, mute and PFL
• 48V phantom power
• 4 subgroups with separate outputs
• 24-bit digital effects processor and 7-band global graphics EQ
• Balanced and unbalanced sum outputs
• Outputs for control room and headphones
• Frequency response 10 Hz - 45 kHz

Technical data General

• Product type: Mixers
• Type: Home Recording , Live
• Number of channels: 24

Technical Data Microphone

• Mono Mic/Line input channels: 16
• Mono Mic/Line input connectors : 6.3 mm stereo jack , XLR
• Mono Mic Input type: electronically balanced
• Frequency Response Mono Mic Input: 10 - 45000 Hz
• Amplification range Mono Mic Input: - 50 dB
• THD Mono Mic Input: 0,0058%
• Impedance Mono Mic Input: 4000 Ohm
• S/N Ratio Mono Mic Input: 113 dB
• Mono Line Input type: electronically balanced
• Frequency Response Mono Line Input: 10 - 45000 Hz
• Gain range mono line input: - 50 dB
• THD Mono Line Input: 0.0045 %
• Impedance Mono Line Input: 21000 Ohm
• S/N Ratio Mono Line Input: 116 dB
• Mono Channel Equalizer Treble: +/-15 dB @ 12,000 Hz
• Mono Channel Equalizer Midrange: +/-15 dB @ 2,500 Hz
• Mono Channel Equalizer Bass: +/-15 dB @ 80 Hz
• Controls Mono Mic and Line Input Channels: 3 Band EQ (High,Mid,Low) , AUX Send 1-2 (pre, AUX2 pre/post switchable) , AUX Send 3-4 (post) , Bal , Gain , Channel Fader , LINE/USB Switching (Channels 21 - 24) , PFL / Solo Switches , Routing (Group 1/2, Group 3/4, Main L+R)
• Phantom power: 48 V DC switchable
• Mono inserts: 8
• Connectors Mono-Inserts: 6,3mm jack

Technical Data Stereo Channels

• Stereo Line Input Channels: 4
• Stereo Line input connectors: 6.3 mm stereo jack
• Stereo Line Input type: electronically balanced , unbalanced
• Frequency Response Stereo Line Input: 10 - 45000 Hz
• Amplification range stereo line input: - 50 dB
• THD stereo line input: 0.0045 %
• Impedance Stereo Line Input: 37000 Ohm
• S/N Ratio Stereo Line Input: 116 dB
• Stereo Channel Equalizer Treble: +/-15 dB @ 12,000 Hz
• Stereo Channel Equalizer high mids: +/-15 dB @ 2,500 Hz
• Stereo Channel Equalizer low mids: +/-15 dB @ 2,500 Hz
• Stereo Channel Equalizer Bass: +/-15 dB @ 80 Hz
• Controls Stereo Line Input Channels: 7-Band Graphic EQ , AUX/DFX Send 1 - 4 , DFX Mute , DFX Presets , DFX to Aux , DFX to Main , EQ On/Off , Volume Phones/CTRL , Power Switch , Phantom Power , Summing Fader (Main Mix) , TK In To Main/To CTRL , GROUP/MAIN Switching , USB Type B

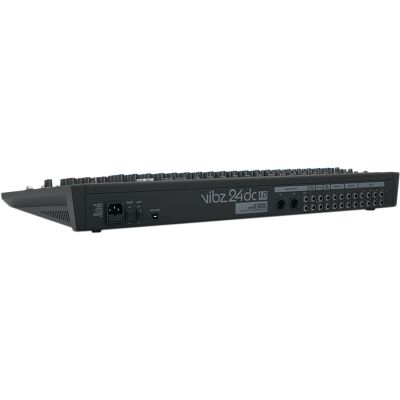

Technical Data Main Section

• AUX/Effect Send Channels: 4
• AUX/effect send connections: 6.3 mm mono jack
• Stereo AUX Return Channels: 1
• Stereo AUX Return connectors: 6.3 mm mono jack
• Group output: 4
• Group output connectors: 4 x 6.3 mm stereo jack (TRS)
• Max. Level Unbalanced Stereo Main Outputs: 22 dBu
• Stereo Control Room Outputs: 1
• Stereo Control Room Output connectors: 2 x 6.3 mm stereo jack (TRS)
• Headphone output: 1
• Headphone output connectors: 6.3 mm stereo jack
• Digital effects processor: Yes
• Number of presets: 100
• DMX output: 1
• DMX output connectors: 2 x 6.3mm stereo jack (TRS)
• Foot switch connections DFX Mute: 6.3 mm mono jack
• Controls Main-Section: 7-Band Graphic EQ , AUX/DFX Send 1 - 4 , DFX Mute , DFX Presets , DFX to Aux , DFX to Main , EQ On/Off , Volume Phones/CTRL , Power Switch , Phantom Power , Sum Fader (Main Mix) , TK In To Main/To CTRL , Switching GROUP/MAIN
• Display elements: DFX Peak , DFX to Main , PFL Display , Phantom Power , Power , Signal
• Power supply: 100 V AC - 240 V AC / 50 - 60 Hz
• width: 712 mm
• height: 80 mm
• Depth: 425 mm
• weight: 9,442 kg

Specs:

• Type: Mixer
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (3.12 MB)
