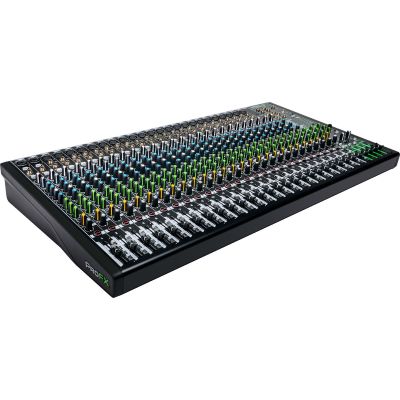

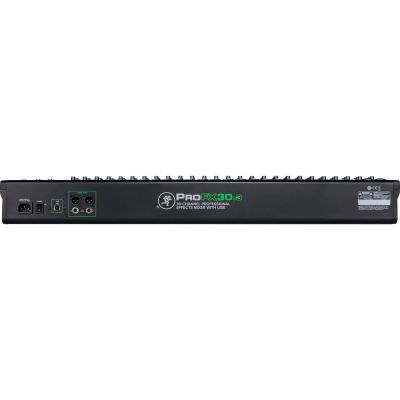

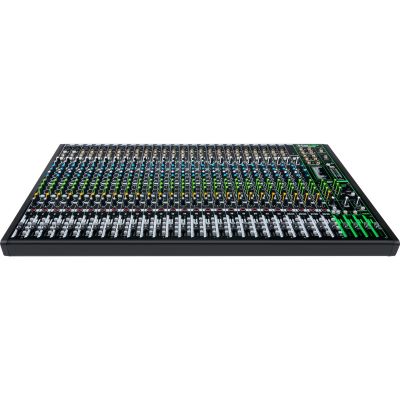

Mackie Pro FX 30 v3

The professional Mackie ProFX30v3 30-channel mixing console with effects and USB is the ultimate cost-effective solution for live sound, home recording and content creation.

With the renowned Onyx microphone preamps with 60 dB headroom, everything from dynamic microphones to guitars will sound better than ever before, and with the simple one-button compressors you'll always have dynamics under control. The new GigFX™ effect engine offers 24 built-in effects for even more ways to give the mix the finishing touches. Tracks can be recorded in 24-bit/192kHz quality via a 2x4 USB interface and latency-free hardware monitoring for easy overdubs. Both ProTools® | First and Waveform™ OEM are included as DAW including plugin bundles.

Features:

• Designed for maximum versatility and perfect for live sound, home recording, content creation and live streaming
• equipped with 25 of the renowned and extremely low-noise Onyx microphone preamps with up to 60 dB gain
• perfect for microphones that require high amplification preamps, such as those popular with content creators
• high-resolution GigFX™ effect engine with 24 different effects, from reverbs to delays
• High-resolution 24-bit / 192kHz recording quality
• 2x4 USB interface allows you to create two custom mixes on the computer to send back to the mixer; ideal for situations where certain tracks need to be listened to separately from the overall mix during playback
• problem-free, latency-free monitoring
• with one push of a button you can switch between the output of the computer and the direct signal
• ideal for recording overdubs next to a previously recorded track
• 3-band EQ on all channels with variable medium-frequency control (channel 29/30 has a standard 3-band EQ)
• Channels 23-28 feature microphone inputs and stereo line inputs for maximum versatility
• Hi-Z switches for direct connection of guitars, basses and other instruments
• 100Hz low pass filter and 48V phantom power on all microphone channels
• Stereo 1/8" input on channel 29/30
• 3 aux/monitor outputs with dedicated sends per channel
• 2 stereo subgroups with assignment per channel
• Headphone output with separate level and blend control
• Dedicated control room output with level control
• Inserts on channels 1-22
• Pre-fader solo on all channels
• Footswitch connector for muting the FX engine
• simple compression via a single potentiometer for maximum headroom
• ideal for putting the finishing touches to vocals in live, recording and even streaming applications
• including ProTools® | First and Waveform™ with extensive plug-in bundles for instant professional recordings
• Musician Collection for ProTools | First contains 23 plugins like BBD Delay, Gray Compressor and Eleven Lite
• DAW Essentials™ Bundle for Waveform™ OEM includes 16 powerful plug-ins including Equalizer, Compressor, Reverber8 and Limiter
• legendary Mackie "Built-Like-A-Tank"-Design
• solid steel chassis protects the mixing console
• robust ABS side protection
• Mute buttons light up when activated
• Weight: 12 kg
• Dimensions: H 112 x W 820 x D 434 mm
• Includes ProTools® | First with extensive plug-in bundle for instant professional recording
• The Musician Collection for ProTools | First contains 23 plug-ins like the legendary 304 EQ & Compressor Bundle, BBD Delay, Gray Compressor and Eleven Lite worth over 400 €.

Specs:

• Type: Mixer
• Theme: Recording and Studio
