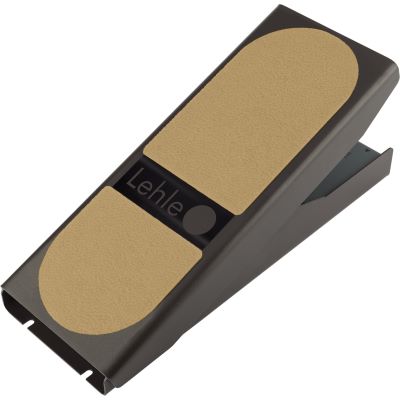

Lehle Mono Volume

The Lehle mono volume is a wear-free volume pedal. It is equipped with a magnetic sensor and a voltage-controlled amplifier.The modeling can be extremely precise and uniform. Anders als bei herkömmlichen Volumen-Pedalen ist das Lele-Pedal über den gesamten Bereich pegelfest, hat kein poti-typisches Rauschen und erfordert keine umständliche Jusierung.

Features:

• Wear-free working volume pedal with precise magnetic sensor
• Hall sensor from German production is precisely calibrated on the built-in magnet and the control path of the pedal
• High-quality Blackmer VCA from the USA replaces the mechanical potentiometer
• Essentially more precise than with conventional mechanical potentiometers or optical sensors
• No noise and no adjustment required
• Sound of the instrument is transmitted over the full control path
• No height damping
• High dynamic range detection up to 110 dB
• Very uniform and quiet mechanics thanks to low-friction friction bearings made of high-performance polymer
• Adjustment screw for adjusting the speed
• Buffered Direct OUT

Technical Specificatons:

• Weight: 1620 g
• Length: 26 cm
• Width: 10 cm
• Height overall: 6,6 cm
• Voltage range: 9 - 15 V DC or 7 - 12 V AC
• Current consumption: 50 mA
• Frequency response: 50 Hz - 100 kHz (all potentiometers in center position)
• Distortion factor: <0.05% at 1 kHz, -10 dBu
• Impedance input: 2 Mohm
• Impedance output: 500 Ohm
• Signal-to-noise ratio: -102 dB at 1 kHz, 0 dBu A weighted (potentiometer in "unity gain" position)
• Max. Level: 3 V RMS (approx. 12 dBu at 12 V input voltage)
• Gain (max gain): +10 dB

Specs:

• Type: Accessories
• Theme: Keyboard Instruments
