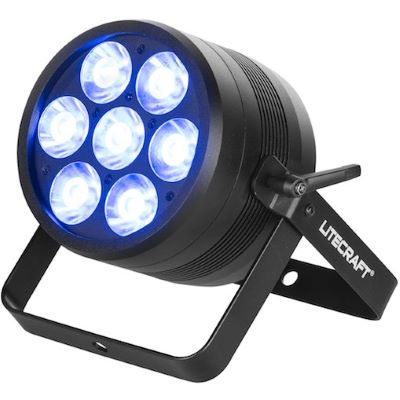

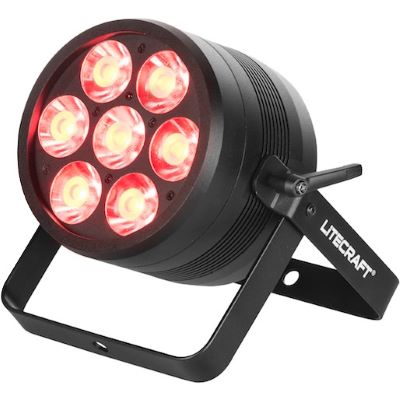

Litecraft Beam X.7

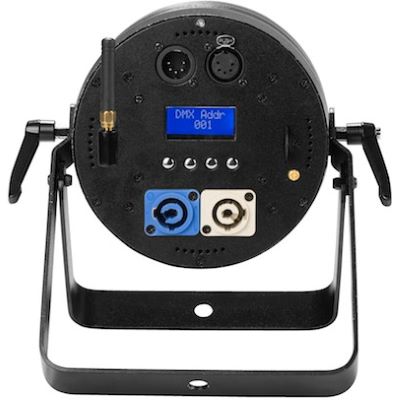

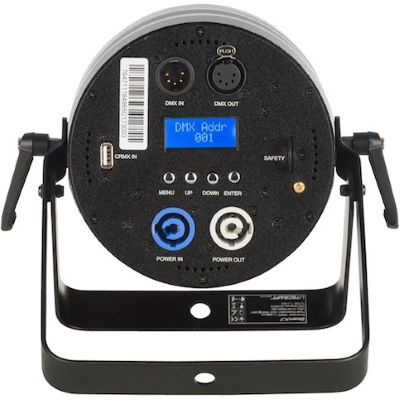

As with all new LITECRAFT products, the housing and mechanics have been optimized. The device has a new Y-frame that can be optimally locked in any position. The high-quality housing, milled from aluminum, is shapely, robust and thermally optimized, so that the device does not require active ventilation. This means that applications are also possible in particularly noise-sensitive locations. The BeamX.7 is equipped with XLR 5 pin and powerCON connectors - each as input and output. This allows it to be easily looped through and discreetly wired. Alternatively, it can be controlled wirelessly via an IR remote control or with an optionally available LumenRadio CRMX module. Furthermore, internal programs and fixed colors are available, which, like all configurations, can be selected quickly and easily on the LC display.

features:

• Beam angle 10
• DMX 512 & LumenRadio CRMX (optional)
• LEDs: 7x Multichip LEDs
• Colors: 7x red, 7x green, 7x blue, 7x white
• Lifetime LEDs: > 50,000 hours
• Color mixing: RGBW
• Protocol: DMX 512
• DMX 512 channels: 2/3/4/5/10 (5 modes)
• Internal memory: stand-alone programs, macros, fixed colors, master/slave control
• Menu display: LCD 8 digits, 2 lines
• DMX 512 connector: XLR 5 pin
• Mains voltage: 100-240 V 47-63 Hz
• Current consumption: 0.2 A at 230 V
• Material: aluminium
• Colour: black, anodized
• Housing protection class: IP 20
• Dimensions (L x W x H): 24.1 x 15 x 21.6 cm
• weight: 2,3 kg
• Mounting: compact Y-frame for hanging and standing mounting
• Color programs pre-programmed
• Preprogrammed color macros
• Stand Alone RGBW Programming
• Memory for last operating state
• Easy to use menu with LC display
• Default Set Function
• Mounting bracket also for vertical mounting
• powerCON Input & Output

Specs:

• Light source: LED RGBW
• Steuerung DMX: yes
• Light effect type: PAR
• Montageart: flexible Deployment
• Type: PAR Spotlight
• Theme: Light and Show

Instruction manual / Safety instructions:

• Manual (606.56 KB)
