M-Audio BX5BT

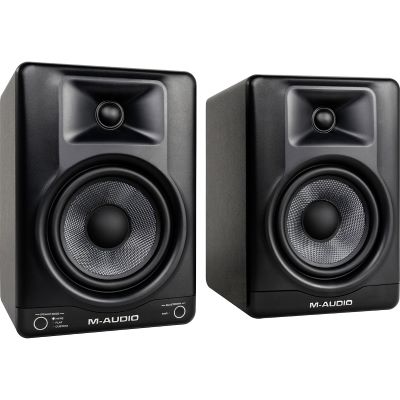

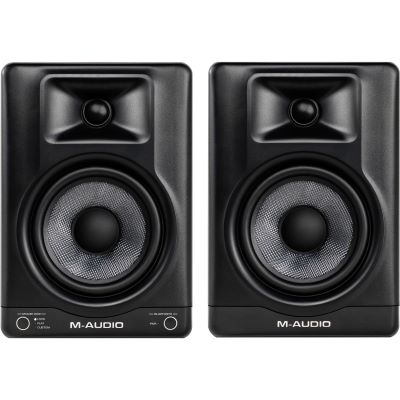

M-Audio BX5BT DSP-Enhanced Desktop Studio Monitors with Bluetooth

The M-Audio BX5BT DSP-Enhanced Desktop Studio Monitors with Bluetooth combine professional sound quality with modern features such as wireless streaming and app control. This compact pair of monitors is designed for music producers, content creators, gamers and video editors who want excellent sound in the smallest of spaces. With a total of 120 watts of bi-amp power, precise DSP sound tuning and a 5-inch Kevlar woofer, the BX5BT deliver an impressively clear sound image with rich lows and brilliant highs - perfect for creative workflows of all kinds.

Precise sound thanks to DSP-based technology

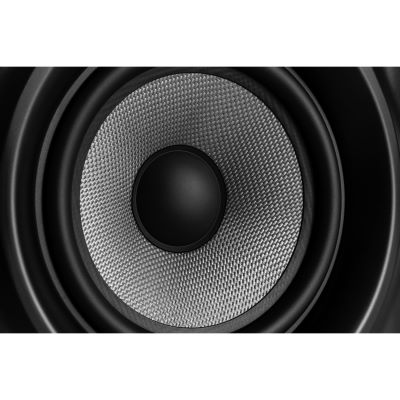

Inside the BX5BT is a crossover system based on DSP technology, which ensures perfect frequency distribution and a clear separation between bass and treble. The result: a neutral and analytical sound, ideal for mixing, producing or simply enjoyable listening. The combination of 5-inch Kevlar woofer and 1-inch soft dome tweeter with waveguide guarantees precise reproduction over the entire frequency range from 49 Hz to 20 kHz.

Optimum level distribution thanks to bi-amping

The active bi-amp configuration delivers 2 x 50 watts for the basssection and 2 x 10 watts for the treble section. This efficient power distribution enables balanced dynamics and reliably protects the speakers from overloading thanks to integrated DSP protection mechanisms. Despite their compact design, the monitors achieve a maximum sound pressure level of 109 dB SPL - more than sufficient for near-field applications in the studio or at the workplace.

Individually controllable via app or direct access

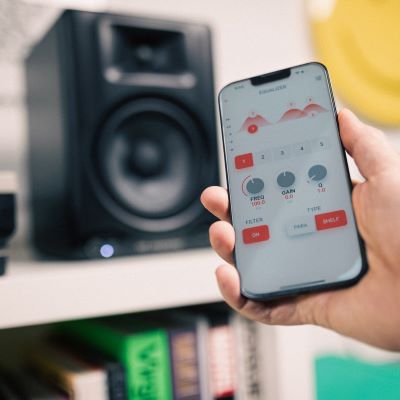

A key feature of the BX5BT is the ability to access a five-band EQ section and user-defined presets via the M-Audio Studio Control app. In addition, three reference modes can be activated directly on the speaker at the touch of a button: FLAT for a neutral reproduction, HYPE for an emphasized presentation and CUSTOM for individual settings. This allows the monitors to adapt flexibly to any listening situation or style.

Bluetooth 5.0 with long range and tuning options

Thanks to the integrated Bluetooth 5.0 interface, you can stream audio content wirelessly and with low latency directly from your smartphone, tablet or laptop. With a range of up to 30.5 meters (100 feet), the workplace remains free of unnecessary cables. Ideal for quick reference listening, spontaneous ideas or listening to backing tracks without detours.

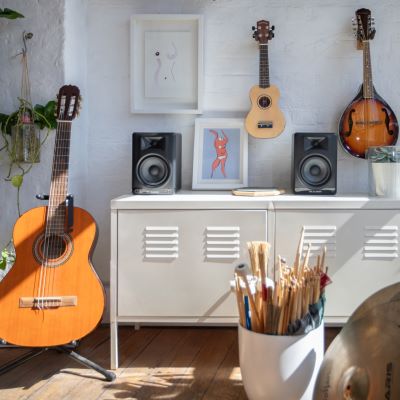

Compact, robust and ready for continuous use

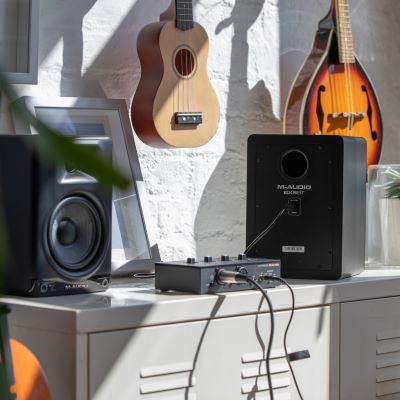

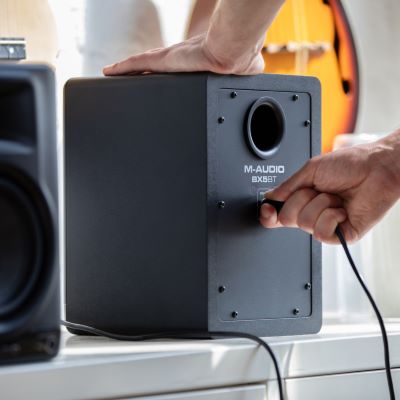

The vinyl-coated MDF housing with rear bass reflex channel ensures stability and a focused bass range. The monitors are compact enough for any desk and robust enough for daily studio use. With dimensions of 25.4 x 17.6 x 20.2 cm (HxWxD) and a total weight of 7.1 kg, they are easy to position and transport - perfect for flexible working environments or mobile studios.

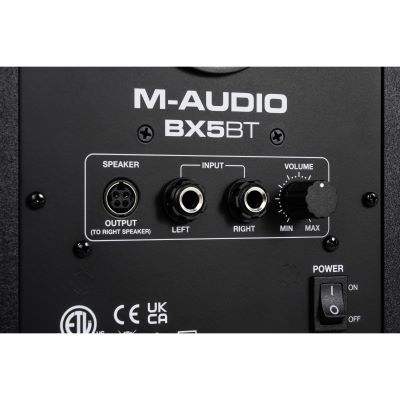

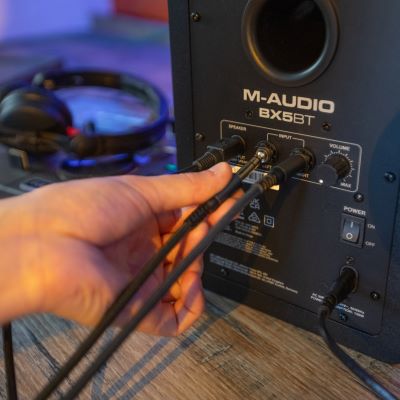

Analog connection options included

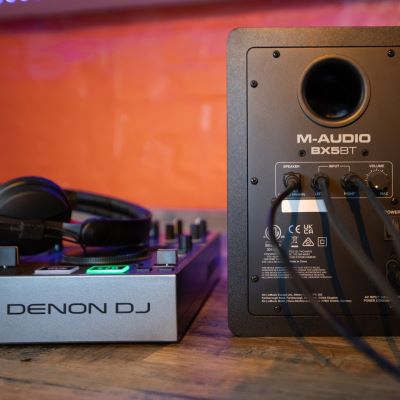

In addition to Bluetooth, the BX5BT pair also offers classic TRS inputs on the rear. These enable the connection of audio interfaces, mixing consoles or other studio devices in professional quality. The high-quality Burr-Brown A/D converters ensure crystal-clear signal transmission with a signal-to-noise ratio of over 120 dB.

Features:

• Ultra-compact, rear ported 5-inch monitor pair
• 120 watt bi-amp design
• 2 x 40W LF, 2 x 20W HF drivers, Class-D amplification
• Precise DSP crossover, tuning and protection
• 5" Kevlar woofer with extended bass range

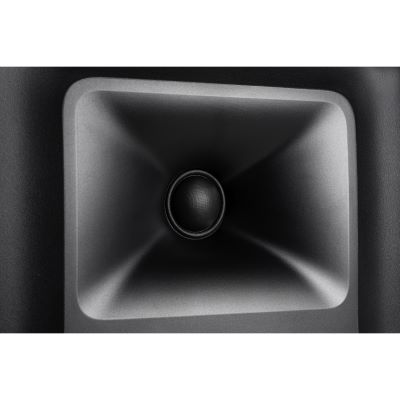

• 1" soft dome tweeter with waveguide
• Professional Burr-Brown A-D converter
• Instant access to FLAT, HYPE and CUSTOM modes on the front panel
• Bluetooth 5.0 for wireless audio streaming
• M-Audio Studio Control app for EQ and presets
• Rear trim control and TRS analog inputs
• Frequency response: 49Hz - 20kHz (-10dB)
• Maximum sound pressure level: 109dB SPL
• Dispersion angle: 120° × 90°
• Housing: Ported vinyl-coated MDF
• Power configuration: Bi-amplified
• Power amplification: 120W total (2 × 50W LF / 2 × 10W HF)
• LF driver: 5" (165mm) Kevlar woofer
• HF driver: 1" (25mm) soft dome tweeter
• Inputs: 2 × TRS
• Converter SNR: > 120dB
• Bluetooth version: 5.0
• Bluetooth range: 30.5 m
• Dimensions (H x W x D): 25.4 x 17.6 x 20.2 cm
• Weight: 7.1 kg

Specs:

• Color: Black
• Woofer: 1 x 5
• Frequency Range from: 49 Hz
• Frequency Range to: 20000 Hz
• Set Offer: no
• Number of paths: 2-way
• Type: Studio Monitor
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (8.3 MB)
