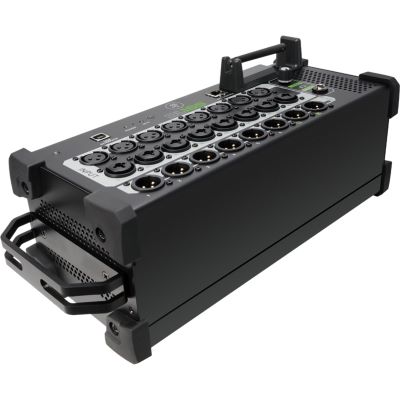

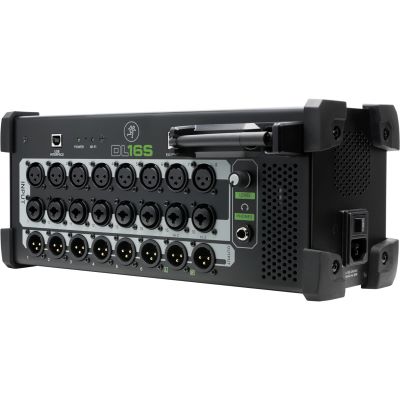

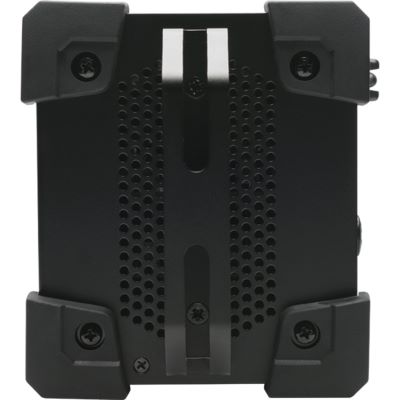

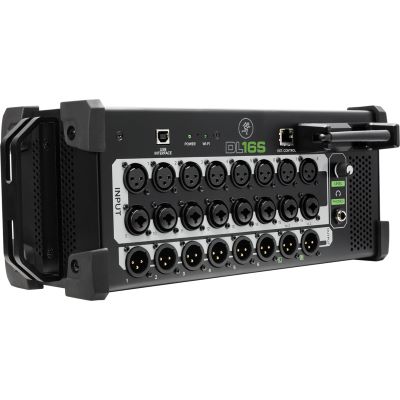

Mackie DL16S

The Mackie DL16S is a wireless 16-channel live digital mixing console with integrated Wi-Fi for multi-platform control. The Built-Like-A-Tank™ design is particularly stage-friendly. The channels are equipped with high-quality Onyx+™ microphone preamps.

Features:

• Wireless 16-channel digital mixer
• 16 storable Onyx+™ microphone preamps
• 8 freely assignable XLR outputs as well as one headphone output
• Well-proven Master Fader Control App
• 16x16 24-Bit USB Recording
• No multicore necessary - can be installed anywhere
• Wireless Mixing
• Complete control via iOS, Android, Mac or PC
• No fixed FOH position - mixing from anywhere possible
• Supports up to 20 different devices for simultaneous control
• Several sound engineers can work at the mixing console
• Multi-track recording & playback
• 16x16 24-Bit USB Audio Interface for Mac or PC
• Recording of whole concerts
• Play pause music, backing tracks and more, also directly on your own stereo channel
• Virtual Soundcheck
• Cost-effective interface solution with many channels for recording studios
• Integrate plug-ins from Mac or PC during live concerts
• Master Fader App
• Intuitive and simple operation
• Fast navigation with view groups and overview windows
• Quick setup with lots of factory and user presets
• Access Limiting allows flexible customization of the user interface and prevents unwanted adjustments by other users.
• Quick access to channel editing, signal routing and a wide selection of great-sounding effects with presets for a quick start
• Export of presets, shows and complete system backups via dropbox, email and more
• Complete offline operation
• Simple and regular updates
• Compatible with iOS, Android, macOS, and Windows

Connections:

• Powerful processors and flexible routing
• 16 input channels with 4-band PEQ + HPF, gate, compressor and RTA/Spectrograph
• All input channels can be coupled to stereo
• 13 output busses with 4-band PEQ + HPF/LPF, 31-band GEQ, compressor/limiter, alignment delay and RTA/Spectrograph
• 8 stereo-couplable aux paths
• 6 stereo-couplable subgroups
• Main L/R Bus
• 6 VCAs and 6 mute groups
• 4 stereo effect processors with own sends and returns with effects like reverb rooms, delays, chorus, flanger, and more.
• Completely flexible I/O routing with A/B source selection per channel
• Assignable oscillator including pink/white noise and sine waves
• Modern and vintage versions for compressor, gate and EQ

Technical data:

• Mape (HxWxD): 142 x 358 x 147 mm
• weight: 2,8 kg

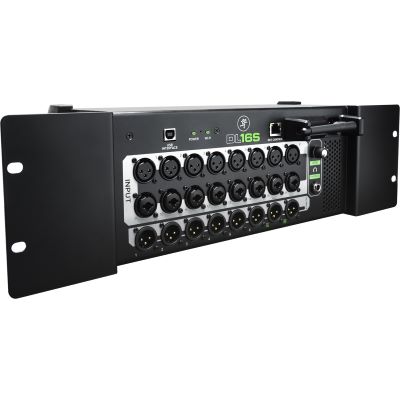

• Rack angle included
• System requirements: The DL series mixers are compatible with iOS 10 or higher, Android OS 6 or higher, macOS 10.2 or higher and Windows 10 or higher.

Specs:

• Type: Mixer
• Theme: PA and Sonication
