Allen & Heath QU-5 Digitalmischpult

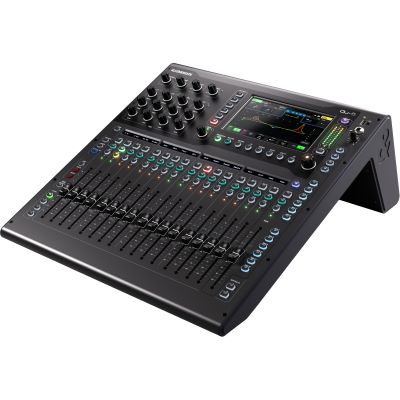

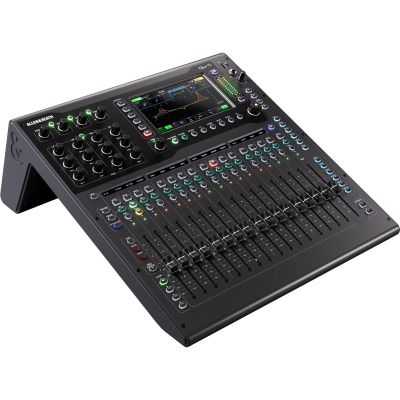

Allen & Heath QU-5 digital mixing console - The compact 96kHz mixer for professional applications

Introduction: The Allen & Heath QU-5 - Powerful, flexible and compact

With the Allen & Heath QU-5 digital mixing console, the renowned British manufacturer presents a professional 96kHz mixer that impresses with its compact design, enormous performance and intuitive operation. Developed for demanding live, studio and installation environments, the QU-5 combines state-of-the-art audio processing with comprehensive connectivity and an optimized workflow. Equipped with a 96kHz FPGA core, 38 inputs, 24 outputs and DEEP processing capability, the QU-5 is the ideal solution for audio professionals who don't want to compromise on sound quality, control and system integration.

Whether on tour, in concert halls, churches, broadcast setups or demanding installations - the QU-5 delivers an impressive performance in a space-saving format. Thanks to sophisticated features such as a capacitive touchscreen, motorized faders, integrated multi-channel USB interface and app control, it is not only powerful but also intuitive to use.

Manufacturer: Allen & Heath - tradition and innovation in perfect harmony

Allen & Heath has been one of the pioneers of professional audio technology for decades. The British brand stands for the highest audio quality, innovative designs and practical functionality - characteristics that are impressively reflected in the QU series. The Allen & Heath QU-5 digital mixing console benefits from the manufacturer's extensive experience and is equipped with technologies that are also used in the high-end systems of the dLive series.

With the aim of convincing both demanding sound engineers and tech-savvy musicians, Allen & Heath combines state-of-the-art DSP technology with intuitive user guidance and professional features in the QU-5 - a concept that is appreciated worldwide.

Technical details: Precise technology for uncompromising sound

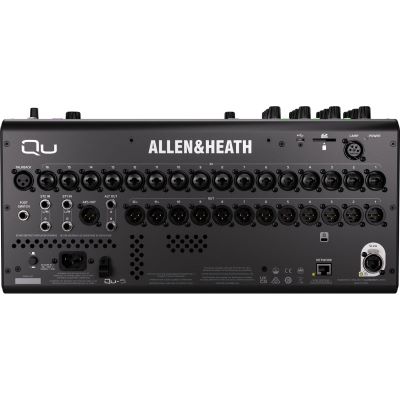

At the heart of the Allen & Heath QU-5 digital mixing console is a powerful 96kHz FPGA processor, which ensures flawless audio processing and extremely low latency. With a total of 38 inputs (32x mono, 2x stereo, talkback) and 24 outputs (including 12 mix outputs, 4 matrix channels), every audio requirement can be precisely implemented. The combination of XLR/jack combo sockets, stereo TRS inputs and an AES3 digital output offers maximum flexibility for signal routing.

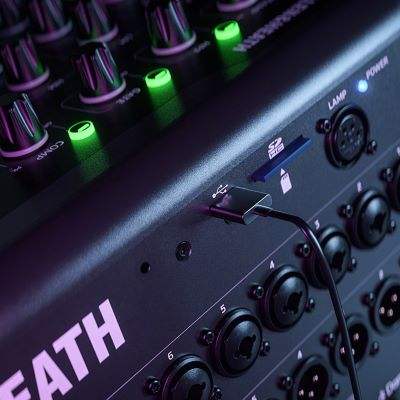

The integrated USB-C audio interface allows multi-channel recording and playback with up to 32 channels - perfect for use in the studio or for live recording. An SD card slot is also available for storing multi-channel recordings (16x16 @ 96kHz, 32x32 @ 48kHz) directly without a computer. The setup is completed by a USB-A port for stereo recording as well as data export and import.

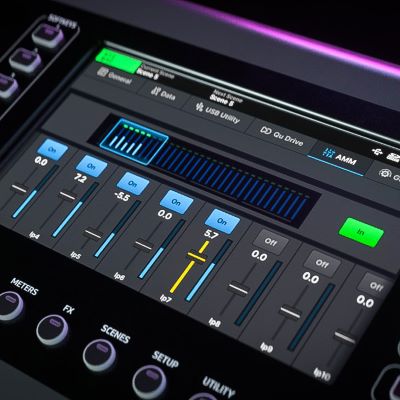

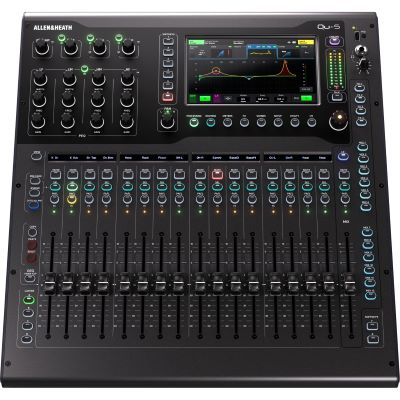

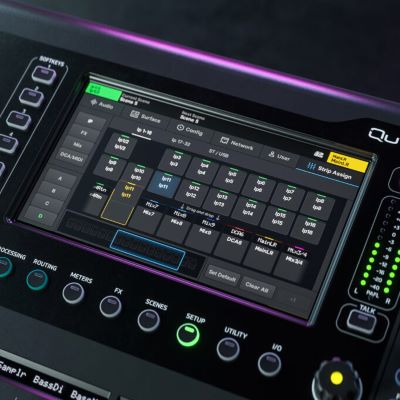

Control is via a high-resolution, 7-inch capacitive touchscreen in conjunction with 17 motorized 100mm faders, which are organized in four configurable levels. The color-coded channel meter LEDs provide visual orientation, while eight freely assignable soft keys and an optional footswitch connection enable individual control options. A separate stereo headphone output is available for monitoring.

The integrated SLink port (128x128) opens up additional options for system expansion via stage boxes or additional Qu consoles thanks to its compatibility with the Everything I/O series - ideal for larger setups or permanent installations.

Recommended purchase: Why the Allen & Heath QU-5 is the right choice

The Allen & Heath QU-5 digital mixing console is aimed at professionals who don't want to compromise on functionality, sound quality and system compatibility in a small space. Thanks to its versatility, the mixing console is suitable for mobile use as well as for fixed installations in churches, theaters, conference centers or broadcast studios. The high-quality preamplifiers and 96kHz AD/DA converters guarantee lossless signal processing at the highest level - ideal for demanding live mixes and critical studio productions.

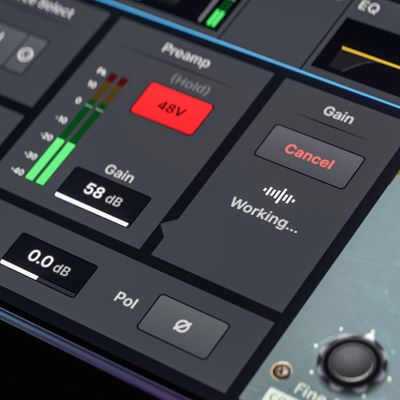

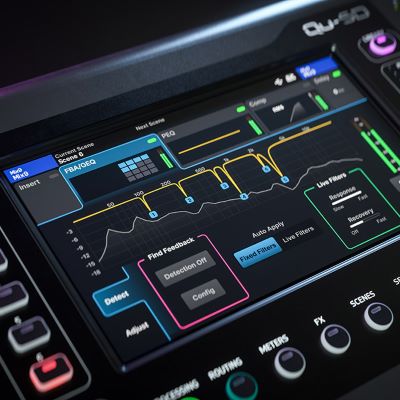

Support for modern assistance functions such as gain and feedback assistants, DEEP Processing plug-ins from the dLive system and flexible routing make the QU-5 an extremely powerful tool that is easy to use. Thanks to its comprehensive range of connections, touchscreen control, motorized faders and intuitive user interface, the mixer is ideal for both beginners in the professional field and experienced sound engineers.

If you are looking for a reliable, compact and future-proof digital mixer that impresses in terms of sound, flexibility and ergonomics, then the Allen & Heath QU-5 is a first-class choice.

Features:

• 96kHz FPGA core for precise audio processing
• 38 inputs for mixing (32x mono/linkable, 2x stereo)
• 24 outputs, including 12 mixes (6x mono/6x stereo) and 4 matrix outputs
• 16 XLR/jack combo sockets for microphone and line sources
• 2x stereo line inputs (TRS)
• 1x talkback input
• 12x XLR outputs, 2x TRS outs, 1x AES3 digital output
• USB-C audio interface for 32x32 multi-channel recording and playback
• SD card slot for 16x16/32x32 recording (depending on sampling rate)
• 7" capacitive touchscreen with intuitive UI
• 17 motorized 100mm faders in four layers
• 8 configurable SoftKeys
• USB-A port for stereo recording and data transfer
• SLink port (128x128) for expansion with Everything I/O
• 6 integrated FX engines with dedicated return
• DEEP Processing compatible with dLive plug-ins
• Remote control via apps (Windows, macOS, iOS, Android)
• Chromatic meter LEDs for channel visualization
• Optional rackmount kit available
• 12V lamp connection and footswitch interface
• Power supply unit: worldwide operation via IEC connection
• RJ45 network connection for remote control

Specs:

• Type: Mixer
• Theme: PA and Sonication
