Allen & Heath QU-5D digital mixing console - The compact Dante-capable 96kHz mixer for the highest demands

Introduction: Allen & Heath QU-5D - Future-proof performance in a flexible format

With the Allen & Heath QU-5D digital mixing console, the British premium manufacturer is expanding its successful QU series with a compact, powerful model that combines the highest audio quality with comprehensive system compatibility thanks to its integrated Dante interface. The QU-5D is aimed at professional users in live, studio and fixed installation environments who require maximum performance, seamless integration and intuitive operation. With 38 inputs, 24 outputs, a 96kHz FPGA core and numerous assistance functions, this mixing console offers a sophisticated all-in-one solution for demanding audio projects.

Whether for touring, permanent installations, live recordings or studio productions - the Allen & Heath QU-5D delivers an impressive range of functions in a compact footprint. Thanks to its modern connectivity, intuitive operating concept and intelligent tools, the workflow is optimized while sound quality and system expandability remain at a professional level.

Manufacturer: Allen & Heath - precision and innovation for decades

Allen & Heath has stood for technical excellence in the field of professional audio technology for over 50 years. The British manufacturer's products are used in studios, on tour, in theaters and conference centers worldwide and are synonymous with reliability, versatility and innovative spirit. The QU series, which includes the QU-5D digital mixing console, brings many of the features of the flagship dLive systems into a more compact format - ideal for professional environments with limited space but high performance and flexibility requirements.

Through continuous development, practical user interfaces and powerful DSP engines, Allen & Heath offers solutions that set standards in both live and studio environments. With the QU-5D, the brand once again underlines its claim to combine high-quality audio technology with intuitive operability.

Technical details: Dante, DEEP Processing and 96kHz in a compact footprint

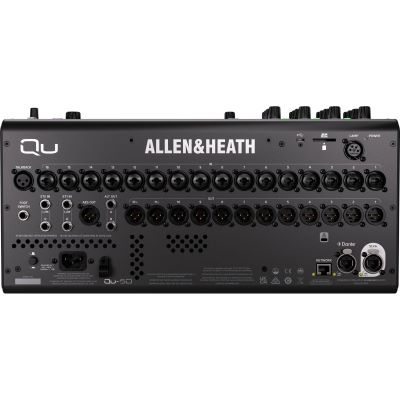

The Allen & Heath QU-5D digital mixing console is equipped with a 96kHz-capable FPGA core, which ensures lossless signal processing with extremely low latency. The 36 physical inputs (32 mono / 2 stereo / 1 talkback) can be flexibly mixed and routed. A total of 12 mix busses (6 mono aux / 6 stereo groups), 4 matrix outputs and a stereo main out are available. 16 combination XLR/jack inputs and two additional stereo line inputs (2x TRS each) allow flexible connection of a wide variety of audio sources.

A particular highlight of the QU-5D is the integrated 16x16 Dante interface, which allows the mixing console to be seamlessly integrated into modern, network-based audio systems. Dante ensures latency-free multitrack audio streaming via a standard Ethernet network and makes the mixing console the ideal choice for large setups, broadcast environments or complex installations.

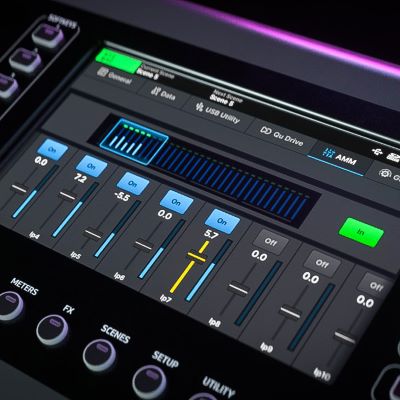

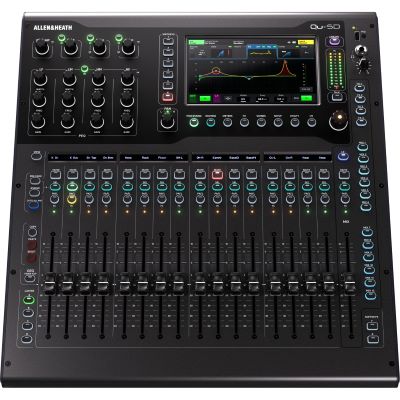

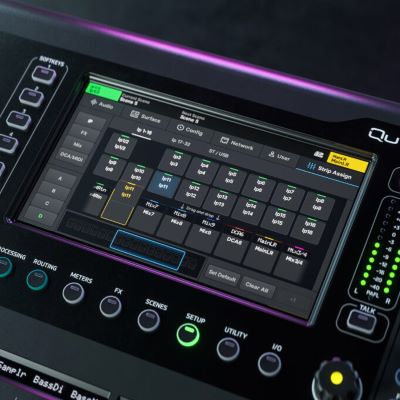

A high-resolution 7" capacitive touchscreen is available for control, which, in combination with 17 motorized 100mm faders and four user-definable fader layers, provides quick access to all functions. The colour-coded meter LEDs and the eight freely assignable SoftKeys increase the overview and customizability. In addition, the USB-A port and SD card slot offer convenient options for audio recording and playback - with up to 32x32 channels via USB-C or 16x16 (at 96kHz) via SD card.

The intelligent SLink port opens up the possibility of expansion with stage boxes and I/O modules from the Everything I/O series. This means that the QU-5D is not only future-proof, but can also be perfectly integrated into existing Allen & Heath systems. The integrated headphone output, talkback connection and controllability via app (Windows, macOS, iOS, Android) round off the professional overall package.

Recommended buy: Why the Allen & Heath QU-5D is the right choice for professionals

The Allen & Heath QU-5D is the perfect solution for professional users looking for a compact digital mixing console with high-end functions and Dante support. Whether in mobile setups, fixed installations, theaters, churches or live events - the console offers everything needed for modern, flexible and powerful audio processing.

Its powerful 96kHz engine, extensive routing options, integrated Dante port and wide range of recording options make it the ideal choice for sound engineers, technical service providers, event organizers and production companies. Thanks to DEEP Processing compatibility, additional plug-ins from the dLive series can be used to provide even more control and sound refinement.

If you need a reliable, expandable and intuitive digital mixing console with high-end audio quality and network integration, the QU-5D is a partner at the highest technical level.

Features:

• 96kHz FPGA core for high-quality audio processing
• 38 inputs (32x mono, 2x stereo, 1x talkback)
• 24 outputs (12x XLR, 2x TRS, 4x matrix, 6x mono + 6x stereo mixes)
• 16x XLR/jack combo sockets for microphone and line signals
• 2x stereo line inputs (2x TRS each)
• 1x AES3 stereo digital output
• Integrated 16x16 Dante interface (48/96kHz)
• 128x128 SLink port for expansion with Everything I/O
• USB-C interface for 32x32 multi-channel recording and playback
• SD card recording: 16x16 @96kHz / 32x32 @48kHz
• USB-A for stereo recording and data transfer
• 7" capacitive touchscreen
• 17x 100mm motorized faders
• 4 freely configurable channel layers
• 8 freely assignable SoftKeys
• DEEP Processing Ready (add-ons from dLive series)

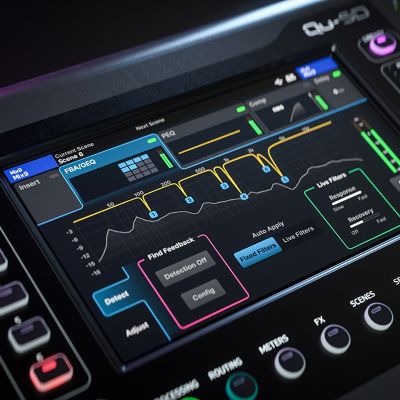

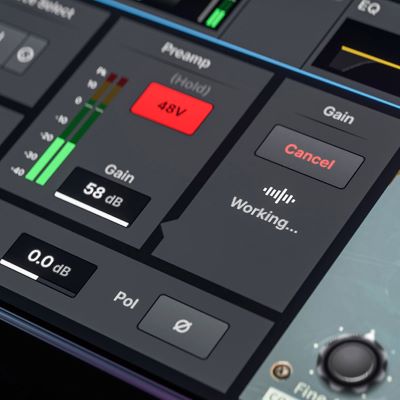

• Feedback and gain assistants
• Chromatic channel meter LEDs
• Stereo headphone output and talkback function
• Configurable footswitch connections
• 12V lamp socket
• Remote controllable via free apps (Windows/macOS/iOS/Android)
• IEC power connection with worldwide power supply
• 19" rack mountable (optional kit available)

Specs:

• Type: Mixer
• Theme: PA and Sonication
