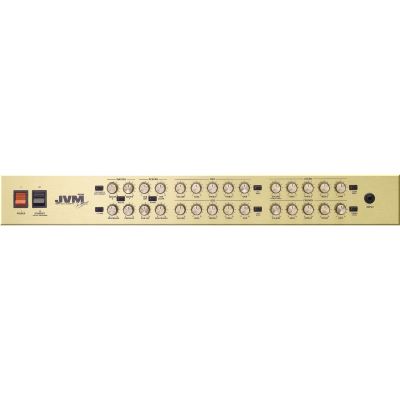

Marshall JVM 410H Top 100 Watt

Marshall JVM 410H: The ultimate 100-watt all-tube power amp

The Marshall JVM 410H is a 100-watt all-tube amplifier that has established itself as a true powerhouse in the guitar amplifier sector. With its robust build quality, sophisticated design and a wide range of tonal possibilities, the JVM 410H is the perfect choice for guitarists looking for a versatile and powerful amp. Marshall has made a name for itself in the world of guitar amplifiers, and the JVM 410H continues this tradition by relying on proven technologies while offering innovative features. Thanks to its 4 channels and a total of 12 basic sounds, this amp offers countless tonal options that leave nothing to be desired.

Marshall: synonymous with power and sound diversity

Marshall has been an integral part of the music industry for decades and is known for its legendary amplifiers, which are used on the world's biggest stages. The JVM 410H is a prime example of Marshall's commitment to building powerful and versatile amplifiers that are suitable for all genres of music. Whether rock, metal, blues or jazz - the JVM 410H delivers the typical Marshall sound that has inspired guitarists for generations. The amp is not only known for its punch, but also for its subtle nuances and ability to adapt to the player's tonal needs.

Technical details of the Marshall JVM 410H

The Marshall JVM 410H has four fully independent channels, all of which use all-tube technology with no semiconductors in the signal path. Each channel - Clean, Crunch, OD1 and OD2 - is equipped with its own three-band tone control as well as separate gain and volume controls. This means that each channel can be individually adjusted to produce different sounds, from crystal-clear clean tones to punchy, overdriven distortion sounds.

The twelve basic sounds, which can be controlled via the 6-way footswitch or MIDI, are based on a relay-switched network. Each sound is unique and can be saved individually by guitarists. The JVM 410H remembers the last used switching states, making switching between different sound configurations seamless and efficient. The integrated channel memory remembers which settings were last active so that the user can access their favorite sounds at any time.

Another special feature of the JVM 410H is the programmable master volume control. Two master volumes can be configured and programmed separately, making it possible to quickly switch between different volumes during a performance. The Marshall EL34 power amp is equipped with Presence and Resonance controls, which provide additional control over the sound and ensure that the amp can be perfectly adapted to any environment.

Effects and flexibility for modern guitarists

The Marshall JVM 410H is not only a powerful amplifier, but is also equipped with a variety of modern features that make it particularly flexible. Each channel has its own digital reverb, which can be individually adjusted to give the sound more depth and space. The programmable parallel effects loop with hardware bypass circuit allows external effects to be integrated without distorting the original sound.

The JVM 410H also features a serial insert loop, which is also controlled by a hardware bypass circuit. These functions make it easy to expand the amplifier with additional effects and signal processors without sacrificing sound fidelity. The Emulated DI Out allows guitarists to connect the JVM 410H directly to a mixing console, making it particularly versatile for studio recording or live situations.

The included 6-way footswitch is another highlight of the JVM 410H. This footswitch is fully configurable and allows the user to control each of the 12 basic sounds as well as all important functions of the amp from the comfort of the floor. The footswitch is connected to the amp via a conventional guitar cable, making setup simple and straightforward.

Tube technology at the highest level

Inside the Marshall JVM 410H is a tube configuration consisting of 5 ECC83 tubes in the preamp stage and 4 EL34 tubes in the power amp stage. This combination provides the unmistakable, rich tube sound that is preferred by many guitarists. The tube amplification provides a natural compression and harmonic distortion that makes the JVM 410H particularly dynamic and expressive.

Thanks to its tube technology and sophisticated circuitry, the JVM 410H delivers a first-class performance, whether in the rehearsal room, in the studio or on stage. With an output of 100 watts, the JVM 410H has enough power to hold its own in any live situation, while offering the flexibility to be played quietly without sacrificing sound quality.

Conclusion: Marshall JVM 410H - A versatile and powerful amp

The Marshall JVM 410H is an all-tube amplifier that impresses with its tonal versatility and robust workmanship. With four channels, 12 basic sounds and a host of modern features such as the programmable effects loop, digital reverb and master volume control, this amp offers everything guitarists need for an impressive performance. The proven Marshall quality and powerful 100-watt output make the JVM 410H an indispensable tool for guitarists who value a versatile, powerful amp.

Features:

• 4 channels in all-tube technology, without semiconductors in the signal path
• Separate three-band tone control as well as gain & volume for each channel
• 12 basic sounds directly selectable via footswitch or MIDI
• Each basic sound works with its own relay-switched network
• Channel memory stores the last sound configuration used - i.e. all switching states
• Freely configurable 6-way footswitch included in the scope of delivery
• Marshall EL34 power amplifier with presence and resonance control
• 2 switchable and programmable master volumes
• Digital reverb with individual control for each channel
• Programmable parallel effects loop with hardware bypass circuit
• Serial insert loop with hardware bypass circuit
• Emulated DI Out for mixing console connection
• Midi In and Midi Thru
• 5x ECC 3 and 4x EL34 tubes
• incl. footswitch
• Dimensions: 750 × 310 × 215 mm
• Weight: only 22 kg

Specs:

• Impedance: 4 Ω
• Impedance: 8 Ω
• Impedance: 16 Ω
• Channels: 4
• Effect Processor: yes
• Power: 100 W
• Amplification: Tube
• Amp Type: E-Guitar Head
• Headphone Out: no
• digital modelling: no
• Type: Amps
• Theme: Guitars and Basses
