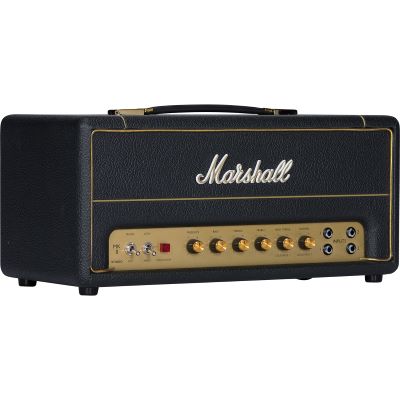

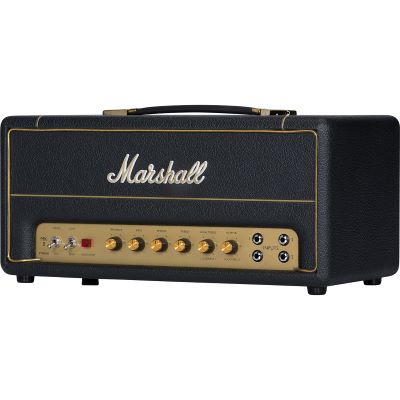

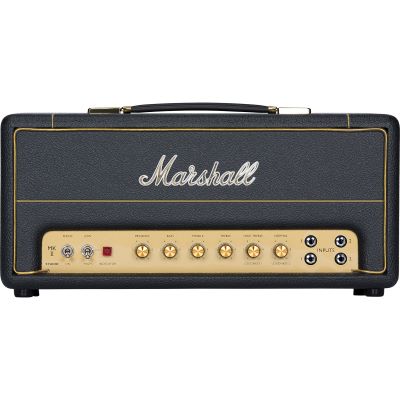

Marshall Studio Vintage SV20H

The Marshall Studio Vintage SV20H is a Marshall electric guitar top and offers a unique sound with a maximum reading of 20 watts. The SV20H delivers the classic sound of the 1959SLP for free. Probably the most famous amp of all time, the SV20H has been completely reinvented for the modern guitarist. It combines the full-tube sound of the original with a choice between 20 and 5 watts at the touch of a button, packed in the ultimate rock outfit.

Features:

• Perfect your tone - EQ settings, four separate inputs and a DI output let you control the soft, transparent clean sounds as well as the rough, characteristic overdrive.
• Classic Rock Sound Included - The cult sounds that have shaped thousands of influential recordings over the years are faithfully reproduced.
• Taming the Tame - Everything you'd expect from a 1959SLP is there, including a power reduction that lets you choose between 5 and 20 watts.
• Legendary Style - Sound indispensable and lovingly recreated for the modern guitarist, the SV20H unmistakably reflects the 1959SLP.

Technical Specificatons:

• top
• Preamp based on the classic 1959SLP
• 20 Watt with power reduction to 5 Watt
• 2 x ECC83, 1 x ECC83 (phase splitter) and 2x EL34
• Preamp and Master Volume controls
• Treble, Middle, Bass and Presence

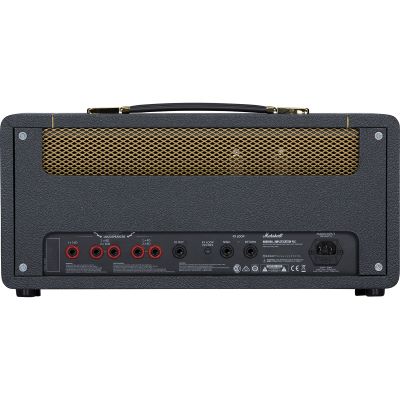

• 1 channel with four separate inputs
• DI Out
• serial FX loop
• width: 500 mm
• Height: 240 mm
• Depth: 230 mm
• weight: 9,25 kg

Specs:

• Channels: 1
• Effect Processor: no
• Power: 20 W
• Amplification: Tube
• Amp Type: E-Guitar Head
• Headphone Out: no
• digital modelling: no
• Type: Amps
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (9.88 MB)
