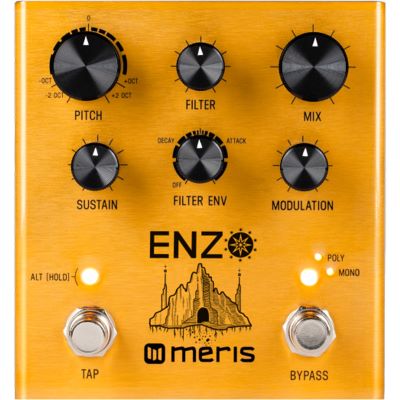

Meris Enzo

A polyphonic synthesizer that senses your guitar for tight monosynth leads, complex chord polyphony or polyphonic sequenced arpeggiation. And all this without a special pickup installation. The Enzo is not limited to the guitar; use it on any instrument, whether drum computer, vocals or other synths. Completely transform your input signal and rebuild it. Use the full range of multimodal synthesis filters in analog style, ring modulation, envelopes and more to create powerful, thick synth textures. Or explore a changed state of your pure instrument signal by transforming it with pitch, time and modulation effects.

Features:

• Colossal Multi-Voice Dual Oscillator Synth architecture with selectable waveforms
• Two Tap Delay with time, feedback, modulation and special two-stage level control
• Three synth modes: Poly-Synth, Mono-Synth and Arpeggiated Synth
• Two different, adjustable envelope types: Triggered and Envelope Pendant
• Adjustable Portamento Time for smooth transitions between synth notes and pitch shifts
• Sustain control for extending the volume envelope to an endless synth hold
• Adjustable compressor with threshold and mix for your input signal (dry mode)
• User-defined 6-mode filter with frequency, bandwidth (resonance) and envelope
• Extensive ring modulation with the possibility of assigning envelope control
• Digitally controlled analog mixing control
• Stereo input and output
• Switchable input/output headroom level for guitar or synth / line level
• Expression pedal control via all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• MIDI In/Out via TRS via the EXP socket
• External Tap Tempo via TRS
• MIDI Beat Clock Synchronization
• High-quality analog signal path and 24-bit AD/DA with 32-bit floating point DSP
• Premium Analog Devices JFET Input range
• Color - translucent coating of vivid gold over brushed aluminum
• Designed and built in Los Angeles, California U.S.A.
• First class quality 24 bit A/D and D/A
• 32 bit floating point DSP hardware
• Superior low noise analog signal path throughout
• Digitally controlled analog drying path for wet/dry mixing
• Analog devices JFET input circuit
• Selectable True Bypass (relay) or Analog Buffered Bypass
• Durable translucent coating of vibrant gold over brushed aluminum
• Current consumption < 150 mA
• Dimensions - 4.25″ wide, 4.5″ long, 2″ high

Specs:

• Color: Yellow
• Effect Type: Synthesizer / Organizer
• Type: digital Effects Processor
• Theme: Guitars and Basses
