Midiplus Routist R4 Audio Interface

Midiplus Routist R4 - Powerful audio interface with dual channel for professional applications

The Midiplus Routist R4 is a professional 2-channel audio interface with excellent sound quality, extensive connectivity and intuitive operation. Developed for demanding musicians, producers, streamers or podcasters, the R4 offers everything you need for modern recording scenarios - in a compact housing with a clear LCD display.

With 24-bit / 192 kHz resolution, two Mic/Line/Hi-Z combo inputs, two headphone outputs and a separate monitor output, the Routist R4 delivers the highest recording quality and maximum flexibility - for solo artists as well as duo recordings or professional live streams.

Midiplus - studio quality for mobile and stationary productions

Midiplus is known for its powerful and intuitive audio hardware. The Routist series combines high-quality workmanship with clear sound quality and versatile features. The Routist R4 is aimed at anyone who wants to combine the highest audio quality with ease of use and a mobile workflow - from home studios to professional environments.

Technical details of the Midiplus Routist R4 audio interface

At the heart of the Routist R4 is a high-resolution 24-bit / 192 kHz audio engine that captures even the finest sound details. Two XLR/TRS combo inputs allow flexible connection of microphones, instruments or line level signals. Two separate 48V phantom power switches are available for the use of condenser microphones.

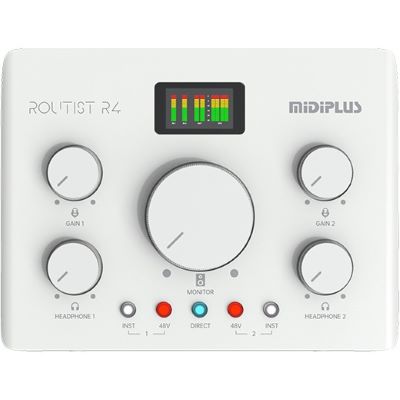

For further control, the interface offers two gain controls for the inputs, two headphone volume controls and a separate monitor level button for controlling the output level. There is also a Direct Monitoring switch for latency-free monitoring during recording and two Hi-Z switches for guitar or bass signals.

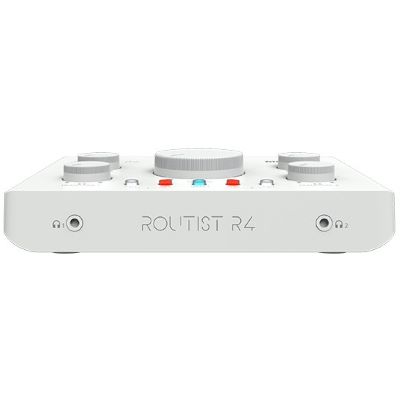

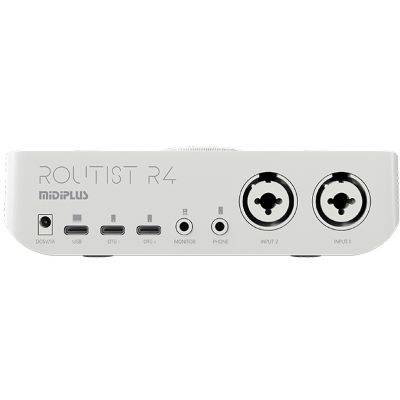

With two headphone outputs, a monitor out and a 1/8" phone jack, the R4 offers versatile monitoring options - ideal for duo recording or simultaneous monitoring and streaming. Two USB-C ports (incl. OTG port) enable connection to PC, Mac or mobile devices. Power is supplied either via USB or DC input.

The integrated LCD display provides clear visual feedback on settings, levels and connection status. The dimensions of 152 x 113 x 41 mm make the device compact enough for mobile use without compromising operation.

Why the Midiplus Routist R4 is the perfect choice for professionals

The Routist R4 offers everything that advanced users or professionals need for high-quality audio recordings. The dual-input structure with separate control, two headphone outputs and comprehensive connection options make it equally suitable for podcasts with several people, music duos or mobile studios.

Direct access to monitoring, gain, phantom power and line/instrument switching ensures efficient work without having to go through software. Thanks to USB OTG, the R4 can also be operated on the go with smartphones or tablets - ideal for mobile podcasts or live streams with professional audio.

Features:

• 24-bit / 192 kHz recording quality for professional studio productions
• 2 × Mic/Line/Hi-Z combo inputs (XLR/TRS)
• 2 × 1/8" headphone outputs with independent volume control
• 1 × 1/8" monitor output for active speakers
• 1 × 1/8" phone jack for live streaming via mobile devices
• 2 × OTG ports for mobile connectivity
• 1 × USB-C port + 1 × DC power input
• 2 × Hi-Z switches for instrument mode
• 2 × 48V phantom power switches for condenser microphones
• 1 × Direct Monitor Switch for latency-free monitoring
• 2 × input gain controls, 2 × headphone volume controls, 1 × monitor level control
• Integrated LCD display for status indication
• Compact dimensions: 152 x 113 x 41 mm
• Scope of delivery: DC-to-USB cable, USB cable, Quick Start Guide, information paper, TRRS cable (1/8" to 1/8")

Specs:

• Color: White
• Rack Mountable: no
• Line Inputs: 2
• Line Outputs: 3
• Mic Inputs: 0
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: none
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio
