Midiplus Titan Q6

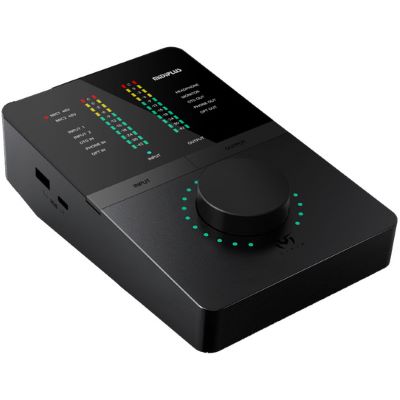

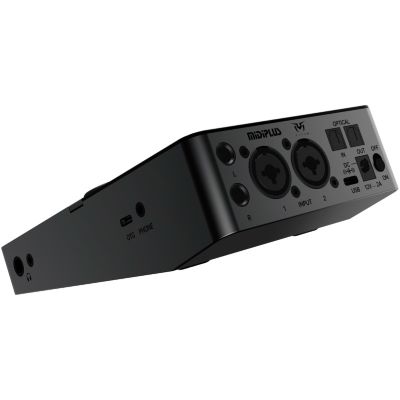

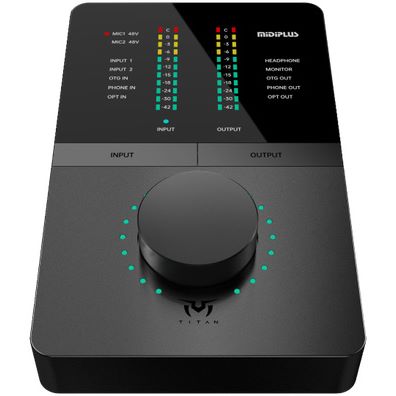

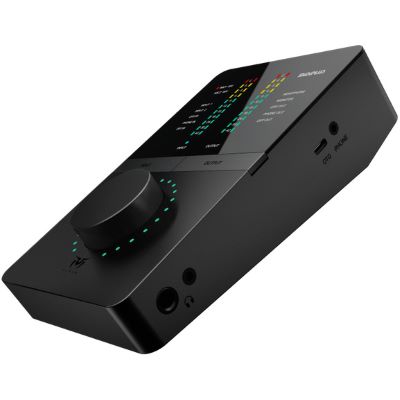

Midiplus Titan Q6 – High-Performance Audio Interface for Studio and Stage

The Midiplus Titan Q6 is a professional audio interface designed for demanding music productions, live setups, and broadcast applications. With a total of 14 inputs and 16 outputs (including 4 analog inputs, 6 analog outputs, and 10 digital I/Os), this interface offers maximum flexibility in any setup. Equipped with 24-bit / 192kHz A/D conversion as well as S/PDIF and ADAT support up to 96kHz, the Titan Q6 delivers excellent sound quality combined with extensive connectivity.

The interface impresses with well-thought-out features such as two XLR/TRS combo inputs with independent 48V phantom power and gain control, as well as switchable headphone outputs for low- or high-impedance headphones. Monitoring is also optimally handled: LED meters for input and output levels provide real-time visual feedback. The robust construction in an aluminum housing ensures maximum durability for studio or live use.

Midiplus – Reliable studio technology with a system

Midiplus stands for high-performance audio technology that meets professional requirements—at an affordable price. The Titan Q6 combines modern digital technology with flexible connectivity options and innovative control features. Particularly noteworthy is the bidirectional synchronization of the user interface between software and hardware—a feature usually found only in more expensive interfaces.

With its dual USB ports (Type A and Type C), the device also functions as a USB hub and can directly connect MIDI keyboards or other peripherals. The OTG function allows for charging mobile devices—ideal for use in mobile production environments.

Technical Details of the Midiplus Titan Q6

The Titan Q6 offers an impressive configuration: 14 inputs and 16 outputs, including 4 analog inputs, 6 analog outputs, and 10 digital I/Os via S/PDIF and ADAT. These digital interfaces support a resolution of up to 24-bit / 96kHz, while analog signals can be processed at up to 192kHz.

Two XLR/TRS combo inputs offer flexible connection options for microphones or line signals. The 48V phantom power can be activated separately for each channel—ideal for simultaneous use of dynamic and condenser microphones. Additionally, the main output can be switched between balanced and unbalanced, as needed.

The headphone output is also flexible: it can be configured for low- or high-impedance headphones. The High Power/Low Power modes ensure optimal signal delivery in various applications—whether studio mixing or mobile monitoring.

Independent LED level meters for inputs and outputs ensure maximum control in the studio. These provide real-time visual feedback and help prevent clipping and find the optimal recording level.

The OTG interface with integrated power supply allows simultaneous charging of mobile devices—ideal for producers or live performers who work with tablets or smartphones. MIDI controllers, external storage devices, or other accessories can be connected directly via the dual USB ports (USB-A and USB-C). The USB-C interface enables fast and stable data transfer with the lowest possible latency.

Why the Midiplus Titan Q6 is the right choice

The Midiplus Titan Q6 is an audio interface for anyone who wants uncompromising quality and maximum flexibility in a single device. Its extensive array of inputs and outputs, high-quality audio processing, intuitive monitoring system, and advanced control features make it a true all-rounder for ambitious music production, live applications, and multitrack recording.

Whether in the recording studio, on stage, or in a mobile setup—with the Titan Q6, you’re perfectly equipped for any situation. Its solid construction and aluminum housing ensure the necessary durability, while its smart features enable a seamless workflow. Especially in complex setups with multiple devices or MIDI controllers, the interface proves its strengths as a central control element.

Features:

• 14 inputs / 16 outputs (4 analog in, 6 analog out, 10 digital in/out via S/PDIF & ADAT)
• 24-bit / 192kHz audio processing (digital up to 96kHz)
• 2 XLR/TRS combo inputs with 48V phantom power and gain control
• Switchable balanced/unbalanced main output
• Headphone output with impedance switching (high/low)
• Switchable high-power/low-power modes
• LED level meters for inputs and outputs
• OTG interface with charging function for mobile devices
• USB hub with USB-A and USB-C ports for MIDI controllers
• Bidirectional synchronization between software and hardware control
• USB-C interface for stable data transfer
• Rugged aluminum housing

Specs:

• Color: Black
• Rack Mountable: no
• Line Inputs: 2
• Line Outputs: 2
• Mic Inputs: 2
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: ADAT / AES/EBU / S/PDIF
• digital Input: ADAT / AES/EBU / S/PDIF
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio
