Mipro MI-58RT-DNT Set 5,8 GHz In-Ear Monitoring-Set

The MI-58 in-ear monitoring system consists of a transmitter, receiver, in-ear earphones and a charging station for the transmitter. The MI-58 is a digital, wireless in-ear monitor system that operates in the license-free 5.8 GHz frequency band. The wide bandwidth ensures an extended frequency response from 20 Hz to 23 kHz, a high signal-to-noise ratio, low latency and far better, noise-free sound quality than is possible with analog systems in the UHF range. Thanks to its very attractive price and high level of quality, the MI-58 digital wireless in-ear monitor system offers unbeatable value for money. The additional option with integrated DANTE interface enables the direct input of digital audio signals. The digital wireless InEar monitor system MI-58 consists of the robust, stationary stereo transmitter MI-58T and the very handy MI-58R pocket receiver. This system is able to precisely control even very high-quality earphones and thus achieve the best possible sound experience. User-friendly controls and a long transmission range make daily work with this system easier, both in the rehearsal room and on small and large stages.

Scope of delivery:

• MI-58T transmitter & power supply unit
• MI-58R receiver
• E-8S in-ear headphones
• MP-8 charger

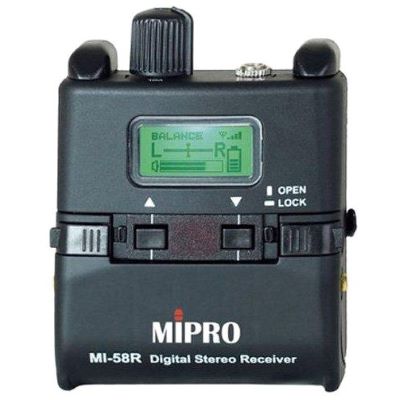

Features MI-58R receiver:

• MI-58R bodypack receiver
• The MI-58R bodypack receiver offers various monitoring options, such as stereo, mono or mix mode, and the user can set their preferred sound color with the integrated EQ. Via the 3.5 mm jack output, the bodypack receiver delivers 120 mW of power to 16 ohms on both sides
• Very compact, lightweight plastic housing
• LCD display shows audio level, battery level, RF signal level
• Function menu: Group channel ID, AF mode (stereo mix), balance, equalizer, lock-unlock, ENG mode
• Earphone output: 3.5 mm stereo jack
• Power supply with 1 x ICR18500 Li-ion battery
• Includes E-8S standard in-ear headphones

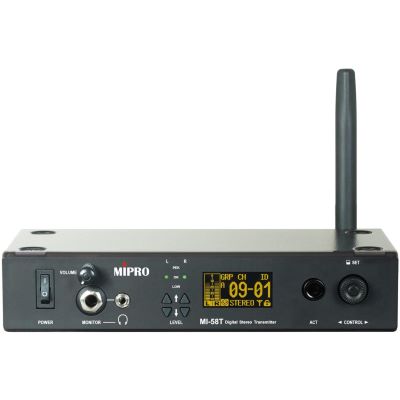

Features MI-58T transmitter:

• MI-58T digital stereo transmitter
• Standard rack housing 1/2 19" 1 U, metal
• OLED for function menu, LED for input level
• OLED display shows: Audio level, channel no. - channel ID, stereo - mono - mix mode, RF signal level
• Audio input sensitivity setting
• Monitor headphone output with volume control
• Push-turn control for menu navigation

Technical data MI-58R receiver:

• Series: Mipro MI-5800 wireless digital in-ear monitoring system
• Type: MI-58R Digital InEar Monitor Receiver with replaceable battery
• Housing: glass fiber reinforced plastic
• Display: LCD with backlight
• Frequency band: 5,725 - 5,850 MHz (registration and fee-free)
• Modulation type: digital
• Channel setting: ACT Sync function
• Frequency response: 20 Hz - 23 kHz (stereo)
• Stereo separation: >100 dB
• Max. S/N ratio: >105 dBA (stereo)
• T.H.D: < 0.03% at 1 kHz
• Latency: < 2.2 ms
• Sensitivity: 5 μV input level, S/N > 100 dB (stereo)
• Headphone connection: 3.5 mm stereo mini jack, left / right 120 mW @ 16 Ω each
• Power supply 1 x ICR18500 Li-ion battery (charging station MP-8 sold separately)
• Dimensions 63 x 96.5 x 25 mm (W x H x D)
• Weight approx. 98 g without battery

Technical data MI-58T transmitter:

• Series: Mipro MI-5800 wireless digital in-ear monitoring system
• Type: stationary digital stereo transmitter
• Housing: Standard rack housing 1/2 19" 1 U, metal
• Display: OLED for function menu, LED for input level
• Frequency band: 5,725 - 5,850 MHz (registration and fee-free)
• Number of interference-free channels: 12 in group A, 24 each in group B1 & B2
• ID codes: 64 different ID codes for specifying the channels
• Channel setting: via function menu
• Audio sampling: 24-bit / 48 kHz
• Transmission power: < 25 mW (CE), < 500 mW (country-specific)
• Audio input: 2 x XLR 6.25 mm jack combo socket
• Loop output: 2 x 6.25 mm jack socket
• Headphone output: 1 x 6.25 mm stereo jack and 1 x 3.5 mm mini stereo jack
• Dimensions (W x H x D): 110 x 50 x 130 mm
• Weight: approx. 0.85 kg
• Network interface: 2 x RJ-11 socket for ACT-BUS
• DANTE interface: optional (MI-58T-DNT)
• Power supply: External power supply 110-240 V AC / 12 V, 1 A DC
• Scope of delivery: Transmitter, power supply unit

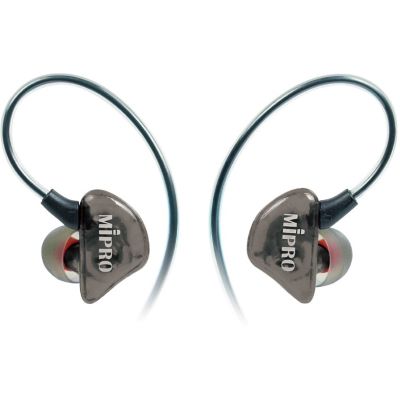

Technical data E-8S stereo in-ear headphones:

• Max. Sound pressure level: 103 dB
• Impedance: 16 Ohm
• Frequency response: 15 Hz - 20 kHz

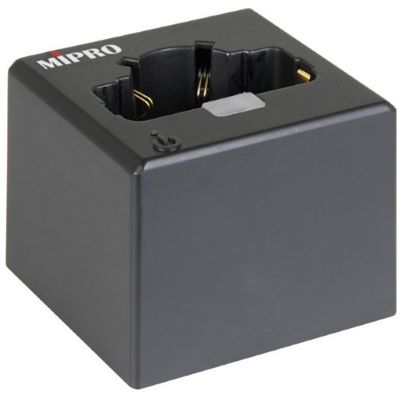

Technical data MP-8 charger:

• Charging station for one device
• For Mipro handheld transmitters, bodypack transmitters and in-ear receivers with charging contacts
