Mipro MI-909RT Set 480-544 MHz In-Ear Monitoring-Set

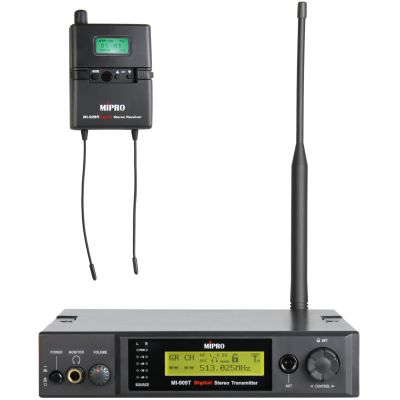

The MI-909 is a digital UHF InEar Monitor system consisting of the MI-909R receiver and the MI-909T transmitter. Thanks to new digital encryption technology, unique sound and outstanding transmission stability, MIPRO lives up to its name as a pioneer with this new and innovative IEM system. With a transmission range from 20 Hz low frequency, advanced DSP technology and digital diversity antenna signal management, the MI-909 outperforms any analog IEM to date. The transmitter (MI-909T) and the receiver (MI-909R) come in a robust metal housing with magnesium alloy and impress with first-class features on stage and in other applications.

Features of the complete MI-909 system:

• Stable PLL circuit enables interference-free use with larger stage setups
• UHF band operation with 64 MHz switching bandwidth
• Automatic synchronization of the receiver frequency with the transmitter frequency thanks to the patented MIPRO ACT™ function (Auto Channel Targeting)
• Reception range of up to 100 m
• Resistant to interference from Bluetooth, WLAN and 2.4 GHz radio transmissions
• Digital encryption for secure signal transmission protects against unauthorized listeners
• Constant digital transmission means there is no signal attenuation over long distances
• Crystal-clear sound and very good speech intelligibility

Features MI-909R receiver:

• Single-channel in-ear monitor receiver
• Ultra-compact, lightweight and robust magnesium housing
• The digital diversity receiver technology prevents dropouts and increases the reception range. Constant digital transmission means there is no signal attenuation over distance
• The bright LCD display shows battery status group, channel, RF output power, mute, stereo signal, lock and error information
• Stereo, mono or mixed output signal selectable
• Extended operating time with 2 AA alkaline batteries

Features MI-909T transmitter:

• Robust metal housing EIA standard 1/2 19" RU
• Bright LCD display shows battery status group, channel, RF output power, stereo/mono settings
• All settings can be made quickly and intuitively using a single rotary knob
• Balanced and unbalanced line-in
• 2 selectable audio input settings (microphone/line signal)
• Unique 256-bit encryption guarantees secure signal transmission and protects against unauthorized listeners
• Monitor headphone connection 6.3 mm jack
• RJ-11 MIPRO ACT BUS interface
• Adjustable transmission power (high/low/off)

Technical data MI-909R receiver:

• Series: Mipro MI-909 wireless digital in-ear monitor system
• Switching bandwidth: 64 MHz
• Channel spacing: 25 kHz
• Frequency range: 480-544 MHz
• Tuner method: PLL Synthesizer
• Antennas: Digital diversity, dual elastic soft antennas
• Frequency stability: ± 0.005% (-10 ~ +60 °C)
• Sensitivity: 10 μV, with signal-to-noise ratio > 90 dB (stereo)
• Modulation: Digital
• Spurious emission: < 4 nW
• Distortion factor: <0.03% at 1 KHz
• Max. Signal-to-noise ratio: 95 dBA
• Transmission range: 20 Hz~15 kHz (stereo)
• Latency: approx. 4 ms
• Volume: 126 dB (1 dB steps)
• Audio output: 3.5 mm stereo jack
• Headphone level: (16 Ω) 2 x 120 mW
• Power supply: 2 x AA alkaline battery
• Power consumption: approx. 180 mA
• Operating time: approx. 6 hours
• Display: Bright LCD (Liquid Crystal Display)
• Housing: Metal (magnesium alloy)
• Dimensions (WxHxD): 63 x 82 x 23 mm
• Weight: approx. 98 g

Technical data MI-909T transmitter:

• Series: Mipro MI-909 wireless digital in-ear monitor system
• Switching bandwidth: 64 MHz
• Channel spacing: 25 kHz
• Frequency range: 480-544 MHz
• Tuner method: PLL Synthesizer
• Antennas: TNC (50 Ω)
• Frequency stability: ± 0.005% (-10 ~ +60 °C)
• Modulation: Digital
• Transmit power: 3 levels adjustable (high/low/off)
• Spurious emission: < 4 nW
• Distortion factor: <0.1% at 1 KHz
• ADC dynamic range: 112 dBA
• Transmission range: 20 Hz~15 kHz (stereo)
• Audio input: 2 x 6.3 mm jack, 2 x XLR-6.3mm combo jack
• Max. SPL: > +26 dBU, microphone/line signal selectable
• Volume adjustment: 0-30 dB in 3 dB steps
• Monitor headphones (16 Ω): 6.3 mm jack with volume control
• Network connection: 2 x RJ-11 MIPRO ACT-BUS
• Power supply: External power supply unit DC 12-15 V
• Dimensions (WxHxD): 210 x 44 x 206 mm
• Weight approx. 1.1 kg

Specs:

• Type: InEar System
• Theme: PA and Sonication
