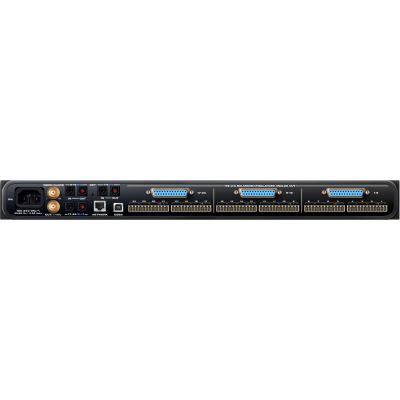

MOTU 24 AO
You will surely find a current product that meets your needs, because we are striving to expand our extensive product range.
- Related Products
- more of MOTU
- all articles from the category Audio Interfaces USB Port
MOTU 24 AO Product Details
The interface Motu AVB 24AO can be used as audio interface, analog/digital converter or standalone mixer. A total of 72 simultaneous channels are available, the device convinces with very compact dimensions (only 1 U), a wide dynamic range and professional features such as DSP, high-speed USB and completely flexible routing. The optionally available AVB switch can be used to create AVB networks, the device can be controlled via a network cable or with a WLAN router also via the web browser.
All in all, the interface offers a highly professional and stable performance, is equipped with a clearly arranged control panel and delivers excellent audio quality for recording, mixing and mastering. Hundreds of channels can be streamed over very long cable routes and at very low latency in a network.
Features:
- Can be used as standalone mixer, analog/digital converter or audio interface
- 72 simultaneous channels and 3 optical ADAT banks in one height unit
- Analog-to-digital converter with very wide dynamic range
- Professional mixer functions
- Hi-Speed USB 2.0 with Class Compliant compatibility, also usable with iOS devices and USB 3.0
- Analog inputs as Phoenix or DB25 D-Sub connection
- Integrated DSP
- Individual internal routing for connection/splitting of various inputs and outputs
- Direct control via iOS devices, tablets, smartphones, laptops possible
- Connection with further Motu AVB interface possible
- Additional devices with optional Motu AVB Switch (our article no. 242901) can be connected to create a network
- Very low latency in the lower millisecond range, even with long cable runs
- Excellent audio quality with clear operation and stable performance
Technical data:
- Dynamic range analog outputs: 123 dB
- Noise Abstad Analog Outputs: -110 dB THD
- Channels: 72
- Outputs: 24x high-quality, analog, balanced, distributed over 3 banks, multi-channel connections
- Multi-channel connections: D25 D-Sub, Phoenix
- Optical ADAT banks: 3, 8 channels each
- Total inputs: 24
- Outputs Total: 48
- USB port: 2.0 Class Compliant
- DSP mixer functions: for 48 channels
- DSP stereo buses: 12
- DSP Floating point processing: 32 bit
- DSP EQ: analog, modeled
- Further DSP functions: Vintage Compression, Classic Reverb, Gate
- Audio network: Connection via Cat-5e Ethernet cable
- Routing and splitting: flexible
- Control options: WLAN router, network cable
Specs:
- Color: Black
- Rack Mountable: yes
- Line Inputs: 0
- Line Outputs: 24
- Mic Inputs: 0
- Phono Inputs: 0
- Instrument Inputs: 0
- digital Output: ADAT
- digital Input: ADAT
- Headphone Out: no
- MIDI Inputs: 0 Ports
- MIDI Outputs: 0 Ports
- Host Port: USB
- Number of headphone outputs: 0
- Type: Audio Interface
- Theme: Recording and Studio
