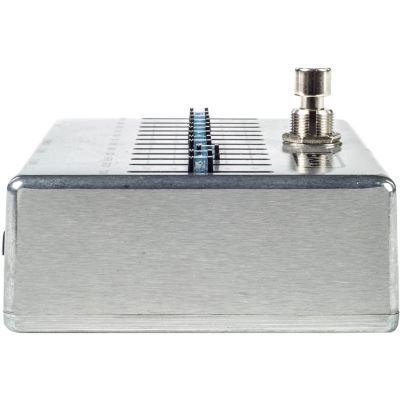

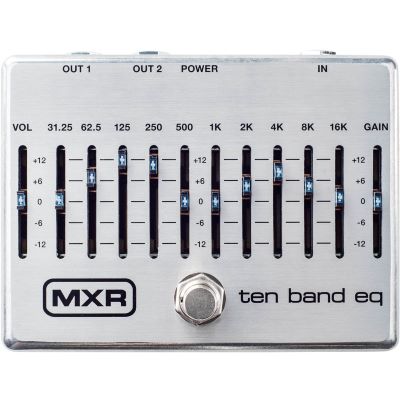

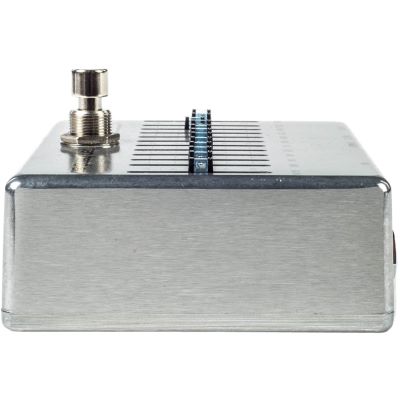

MXR M 108S Gitarren 10 Band EQ

The MXR M 108S Band EQ is the continuation of the well-known MXR 10 Band EQ. The equalizer is designed in such a way that the circuit is with less noise and it has another output. It features True Bypass, a lightweight aluminum enclosure and brighter LEDs for better visibility. With 10 carefully selected frequencies and two input and output level controls, the 10 band EQ provides the sound of basses and guitars with earthquake-like low frequencies, strong punch, level and treble resonance and the in a single pedal. The equalizer is ideal for modifying and amplifying the output sound.

Features:

• analog 10 Band Graphic Equalizer

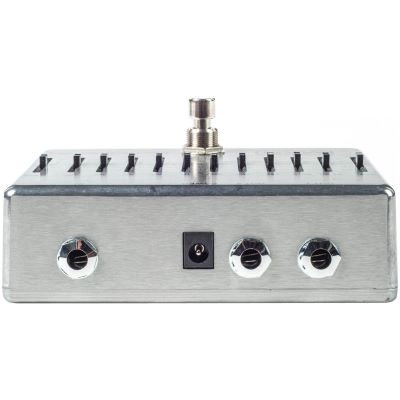

• Input: Mono Input (6.3 mm jack socket)
• Outputs: 2x mono output (6.3 mm jack socket)
• Controls: 1x volume, gain, 31 Hz, 62 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz and 16 kHz each
• True Bypass
• Power supply included in scope of delivery
• Power supply: 18 V
• Current consumption: 48 mA
• dimensions: 9,2 x 5,4 x 12,4 cm
• weight: 0,7 kg
• +/- 12 dB Cut or Boost
• Fader with LED illumination
• controllable input and output
• extended headroom

Specs:

• Color: Black
• Effect Type: Equalizer
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (224.92 KB)
