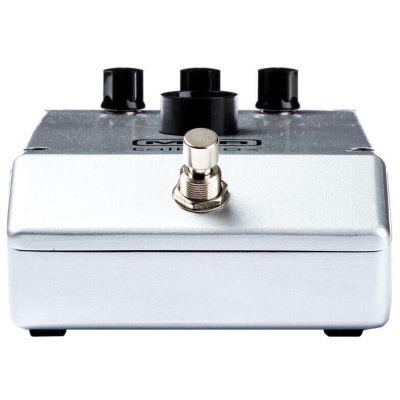

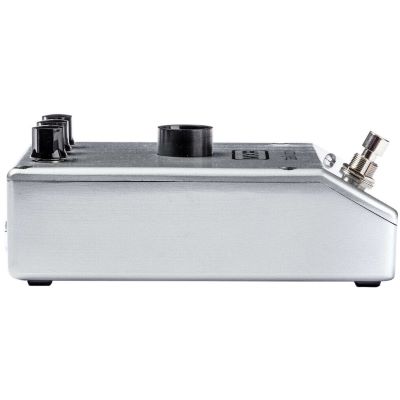

MXR M 222 Talk Box

The MXR M 222 Talk Box is a classic guitar effect made famous in the 70s and 80s by bands like Bon Jovi, Pink Floyd and Jeff Beck. In this The guitar or keyboard signal is amplified in the talk box and fed into the rubber hose via a loudspeaker. This, in turn, allows the vibrating column of air to be fed into the mouth, where the where the air stream can be used to vocalize sounds, wah sounds or speech. The dry, unamplified input signal is then sent via the output of the talk box to the guitar amplifier and can be thus be mixed with the sound picked up by a microphone from the rubber tube.

Features:

• Classic vintage talk box with rubber tube for electric guitar and keyboard.
• Shaping of the sound and vocalization of words in the pitch of the instrument by the standing column of air in the tube
• Used live and in the studio in conjunction with a microphone that picks up the orally formed sounds
• Signal from the guitar or keyboard is passed unchanged through the output to the amplifier
• The MXR M 222 Talk Box thus contains a loop-through for the dry signal as well as an amplifier and a speaker for the tube
• Inputs: 1x 6.3mm jack mono
• Outputs: 1x 6.3mm jack mono
• Special feature: Built-in amplifier and speaker, which provides an air column in the rubber hose
• Controls: Volume, Tone, Gain
• Switch: Effect On/Off (true bypass when off)
• Power supply: Proprietary 18V Dunlop power supply type "DL E ERS ECB 004" is included
• Battery operation: No
• Power consumption: 1A current at 18V mains voltage means approx. 18W consumption at full load
• Housing material: aluminum, absolutely roadworthy design
• Dimensions: 26 x 24 x 10 cm (H x W x D)
• Color: silver metallic
• Weight: 1,95kg
• High quality brand product Made in the USA

Specs:

• Color: Silver
• Effect Type: Misc.
• Type: digital Effects Processor
• Theme: Guitars and Basses

Instruction manual / Safety instructions:

• Manual (833.24 KB)
