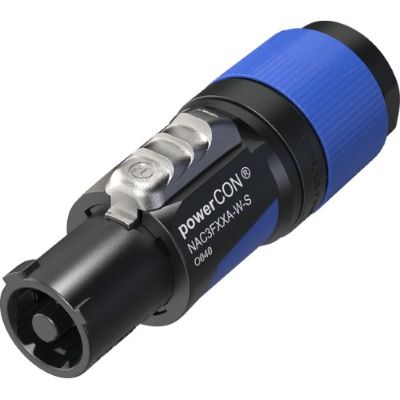

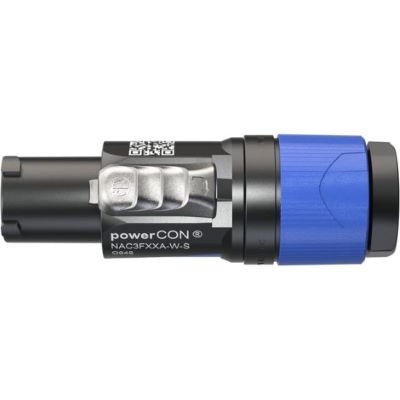

NEUTRIK PowerCon Kabelstecker blau NAC 3 FCA

The PowerCon is a 3-pole mains connector with phase, neutral and leading earthing contact. It replaces the power plug where a very rugged solution with a locking mechanism is needed to guarantee a secure power connection.

The PowerCon is a plug connector and not a plug connector, i. e. the PowerCon must not be plugged in or unplugged under load or voltage.

Features:

• 3-pole mains connector with phase, neutral and leading earthing contact
• Current carrying capacity up to 20A / 250V ac
• Power-In (blue) and Power-Out (grey) version with different keying to prevent incorrect insertion
• Fast and simple locking system
• Extremely robust and reliable
• Ergonomic design
• User-friendly locking bolt for easy handling
• Unique Neutrik cable strain relief
• UL, C-UL recognized components, VDE certified and SEV certified
• Marked with the unique hologram - guarantees an original Neutrik product

Technical Specificatons:

• Connection type: PowerCon
• Sex: female
• Contact resistance: ≤ 3 mΩ
• Dielectric strength: 4 kVdc
• Insulation resistance: greater than 0.1 GΩ (after damp heat test IEC 68-2-30)
• Rated current per contact: 20 A
• Rated voltage: 250 V
• Cable diameter: 5 - 15 mm
• Lifetime: greater than 1000 mating cycles
• Conductor cross-section: 2.5 mm
• Conductor cross-section: 14 AWG
• Connection type: screw type terminals or soldering
• Locking: Quick Lock
• Clamping sleeve: Polyamide (PA 6 15% GR)
• Contact coating: 4 µm Ag
• Contacts: Bronze (CuSn6)
• Application: Polyamide (PA 6 30 % GR)
• Locking element: Zinc diecast (ZnAl4Cu1)
• Housing: Polyamide (PA 6 30 % GR)
• Strain relief: Polyacetal (POM)
• Approvals: UL, VDE, Electroswiss
• Flammability: UL 94 HB
• Protection class: IP 20 (mated)
• Safety requirements: EN/IEC 61984
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
• Coding: A-type for power inlet (color coding blue)
