OMNITRONIC MIC MM-1C Kondensator Messmikrofon

OMNITRONIC MIC MM-1C Condenser Measurement Microphone

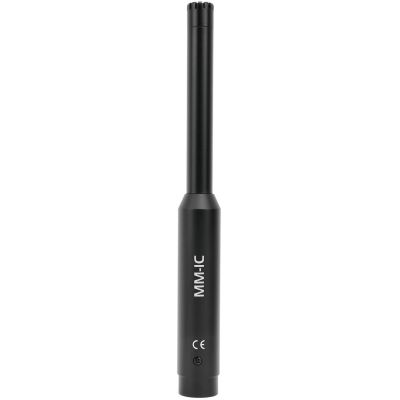

The OMNITRONIC MIC MM-1C condenser measurement microphone is the ideal choice for precise acoustic measurements and professional audio applications. With its linear frequency response and omnidirectional polar pattern, it enables highly accurate sound recordings and measurement data - both in the studio and in mobile setups. Specially developed for use with spectrum analyzers, PA measurement systems and for checking room acoustics, the MIC MM-1C impresses with its reliability, simple handling and high-quality workmanship.

Thanks to the spherical directional characteristic, the microphone picks up sound sources evenly from all directions and reproduces the room sound in great detail. The combination of a robust all-metal housing, a compact design and the condenser measurement capsule makes this microphone a reliable tool for acoustic analysis, loudspeaker adjustment, studio measurements or home recording applications.

Manufacturer profile: OMNITRONIC - Technology for audio professionals

OMNITRONIC is known for high-quality audio technology and reliable tools for DJs, sound engineers and event professionals. With the OMNITRONIC MIC MM-1C condenser measurement microphone, the manufacturer is expanding its range to include a high-precision measuring instrument for acoustic applications. OMNITRONIC devices are characterized by a good price-performance ratio, solid technology and practical use - characteristics that this model also consistently fulfils.

OMNITRONIC products have established themselves as reliable standard solutions, particularly in the field of surround sound analysis, frequency response measurement and loudspeaker optimization. The MIC MM-1C continues this claim and is aimed at users who require precise results - from beginners in the home studio to professionals in event applications.

Technical details of the OMNITRONIC MIC MM-1C

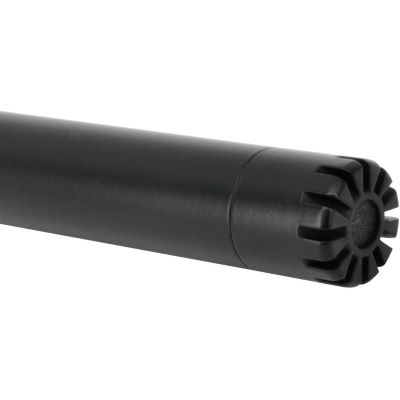

The OMNITRONIC MIC MM-1C condenser measurement microphone has a high-quality electret condenser capsule which, in combination with the omnidirectional polar pattern, has a uniform recording behavior. With a frequency range of 20 to 20,000 Hz, the microphone precisely covers the entire human hearing range. This makes it ideal for capturing frequency characteristics of PA systems, monitor speakers or in acoustically optimized rooms.

The sensitivity is -37 dB, while the maximum sound pressure level is 134 dB SPL - a clear indication of the microphone's high signal processing capacity. The signal-to-noise ratio is over 76 dB, which indicates a low noise floor and a high level of detail. The device requires phantom power between 9 and 52 V DC, which makes it compatible with most common mixing consoles and interfaces.

Material, connections and form factor

The housing of the microphone is made of robust aluminum and is completely black. This choice of material not only ensures a high-quality appearance, but also longevity and protection of the sensitive electronics. With a length of 19.2 cm and a diameter of 13 mm, the microphone is particularly slim and can be precisely aligned to measurement positions - even in confined setups or areas that are difficult to access.

The connection is made via a standard 3-pin XLR connector, which ensures professional signal transmission and universal compatibility with studio and live equipment. The MIC MM-1C has no switches or controls - it is deliberately designed for simplicity and immediate readiness for use.

Why the OMNITRONIC MIC MM-1C is worth buying

The OMNITRONIC MIC MM-1C condenser measurement microphone offers an excellent combination of technical precision, high-quality workmanship and universal applicability. This microphone is a valuable aid, especially for users who require a linear sound recording to assess loudspeakers, room characteristics or system configurations.

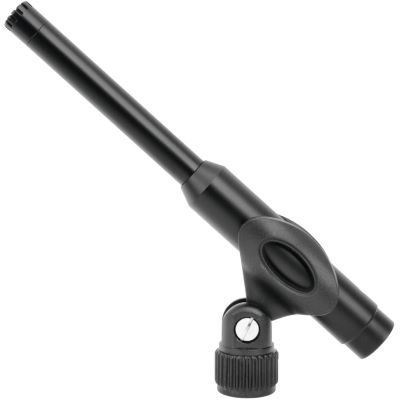

The slim aluminum housing makes the MIC MM-1C ideal for mobile applications, installations and regular transport. The included accessories - microphone holder, windscreen and operating instructions - enable a quick start without additional purchases. It is aimed at demanding users in the fields of home recording, studio work, live sound analysis and system balancing.

Whether for the ambitious beginner or the experienced sound engineer: this measurement microphone offers professional features at a very attractive price and should not be missing from any measurement equipment.

Features:

• Type: Measuring microphone
• Capsule type: Condenser
• Polar pattern: Omnidirectional
• Frequency range: 20 - 20000 Hz
• Signal-to-noise ratio: >76 dB
• Sensitivity: -37 dB
• Max. Sound pressure: 134 dB
• Phantom power: 9-52 V DC
• Impedance: 200 Ohm

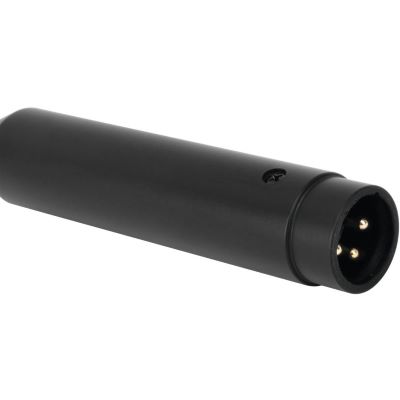

• Connections: Microphone via 3-pin XLR
• Switch: None
• Material: Aluminum
• Color: Black
• Dimensions: Length: 19.2 cm
• Diameter: Ø 13 cm
• Weight: 0.10 kg

Scope of delivery:

• 1 x microphone
• 1 x holder
• 1 x windscreen
• 1 x instruction manual

Specs:

• Color: Black
• Set Offer: no
• Converter: Condenser
• Type: Microphone
• Theme: Microphones

Instruction manual / Safety instructions:

• Manual (317.47 KB)
