OMNITRONIC PM-311P DJ-Mixer with Player

Quality forge Omnitronic presents the PM-311P, a new type of 4-channel DJ mixer with MP3 player. The mixer is equipped with 3-channel DJ mixer with integrated MP3 player and has 3 switchable input channels. The adjustable headphone output with cue mix/split function also allows pre-listening to the input channels and master sum.

Features:

• OMNITRONIC - PM-311P DJ Mixer with Player
• 3-channel DJ mixer with integrated MP3 player
• 3 input channels, switchable 2 x phono/line and 1 x USB/line

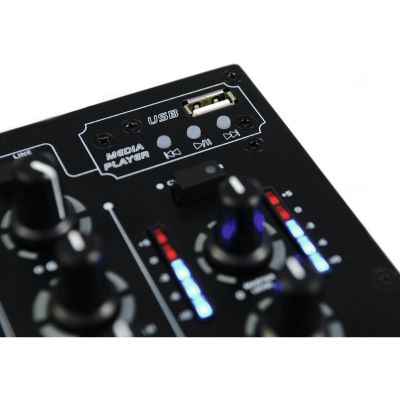

• MP3 player for external USB storage media up to 32 GB, e.g. USB stick or portable player
• All input channels with pre-amplification control (gain), 3-way tone control and cue button
• DJ microphone input with talkover switch, volume control and 3-way tone control
• Pre-listening (CUE) of the input channels and the master sum via adjustable headphone output, with cue mix control
• Crossfader for crossfading between phono/line inputs
• 5-digit stereo LED level meter, switchable between master and PFL signals
• Additional record output
• Desktop case

Technical data:

• Power supply: 230 V AC, 50 Hz; 12 V AC
• Total connected load: 4.00 W
• Protection class: SK III
• Power connection: power supply via hollow plug (M) built-in version power supply cable with plug-in power supply unit (included)
• Frequency range: 20 - 20000 Hz
• Signal-to-noise ratio: >75 dB
• Distortion factor: <0.07 % at 1 kHz
• Audio player: USB
• Controls: Crossfader, source switch, talkover, power switch
• Status LED: Switchable master level indicator, channel source, CUE, ON AIR

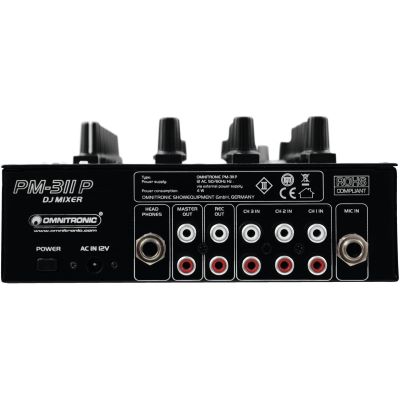

• Input: Line/Phono via 2 x stereo RCA, Line via 1 x stereo RCA, audio player via 1 x USB A (W) built-in version, microphone via 1 x 6.3 mm jack (mono) built-in version
• Output: Master via 1 x stereo cinch, Rec. via 1 x stereo cinch, Headphones via 1 x 6.3 mm jack (stereo) built-in version
• Channels: Input channel: 2 x stereo with line-phono switch via RCA, channel control via fader, control 3-band EQ, gain control, CUE switch; 1 x stereo with line-player switch via RCA or player, channel control via fader, control 3-band EQ, gain control, CUE switch
• Microphone channel: 1 x mono via jack, channel control via fader, control 2-band EQ, ON AIR switch
• Master output: 1 x stereo via RCA, channel control via rotary knob, cue mix function
• Headphone output: 1 x stereo via jack, channel control via knob
• Music format: MP3, WAV
• Suitable storage media: USB devices max. 32GB (FAT 32)
• USB connector: Type A
• Case design: Desktop case
• Dimensions: Width: 17.2 cm
• Depth: 26 cm
• Height: 7.8 cm
• Weight: 1.83 kg

Specs:

• Channels: 3
• Effect Processor: no
• Talkover: yes
• USB Port: yes
• Mic Inputs: 1
• Sound Card: no
• Crossfader adjustable: no
• Color: Black
• Type: DJ Mixer
• Theme: DJ Equipment
