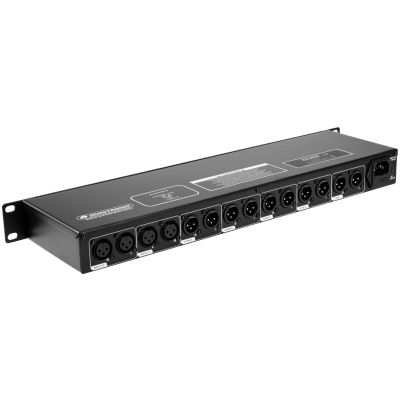

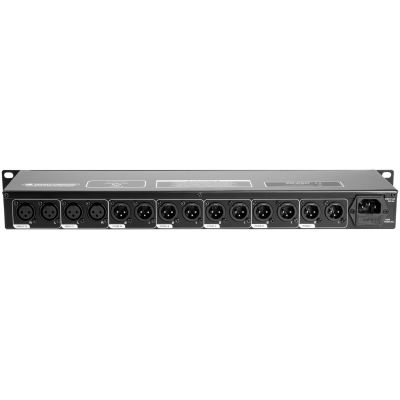

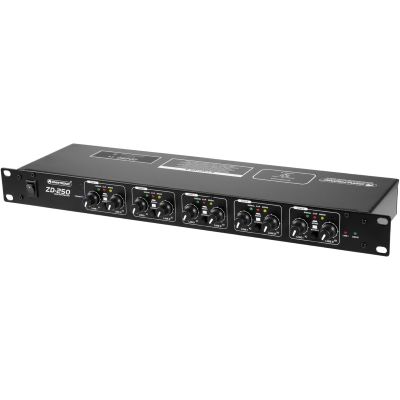

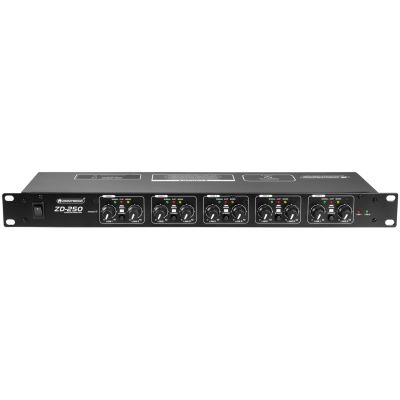

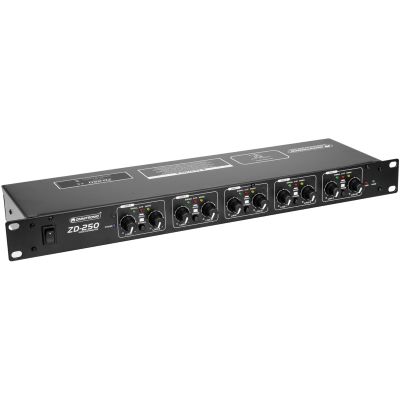

OMNITRONIC ZD-250B Zonen-Verteiler

With the OMNITRONIC ZD-250B zone distributor, you can add additional outputs to your mixing console. The 2 stereo XLR inputs and 5 stereo zone outputs via XLR sockets offer flexible connection options. Each zone has volume controls for both inputs as well as mono switching. The LED indicator shows signal input, overload and mono/stereo mode. Ideal for professional audio applications.

Features:

• Power supply: 115/230 V AC, 50/60 Hz
• Total connected load: 7.00 W
• Power connection: Power supply via IEC devices (M) Built-in version Power connection cable with earthing contact plug
• (supplied)
• Signal-to-noise ratio: >69 dB
• Distortion factor: <0.2 % at 1 kHz
• Impedance: input: 45.1 kOhm; output: 125 Ohm
• Gain: 15 dB
• Max. Level: Input: +9 dB; Output: +22 dB
• Color: Black
• Housing design: (19") 48.3 cm rack mounting 1 U
• Width: 48.3 cm
• Depth: 12.6 cm
• Height: 4.45 cm
• Weight: 2.34 kg

Scope of delivery:

• 1 x appliance
• 1 x mains cable/power cable
• 1 x operating instructions

Specs:

• Theme: PA and Sonication
• Type: Mixer
• Channels: 2
• Rack Mountable: yes
• Effect Processor: no
• Talkover: no
• USB Port: no
• Line Inputs: 0
• Mic Inputs: 2
• Phono Inputs: 0
• Sound Card: no
• Crossfader adjustable: no
• Color: Black
