Palmer PAN 03 DI-Box Passiv

EUR 169.00
incl. VAT incl. Shipping Cost
1 piece on stock
Delivery time: 1 ‐ 2 business days (Germany)
1
Price proposal
Create individual set and save money

Check availability in store:

Item details

Rating
Brand:
Model:
224407
Shipping Weight:
1.80 kg
Shipped via:
Package
Unit:
piece

Secure Shopping:


  • Trusted Shops certified
  • Fast delivery times
  • 1 month right of withdrawal
  • Buyer protection
  • Secure SSL data encryption

Share with friends:


Description

Palmer PAN 03 DI-Box Passiv Product Details

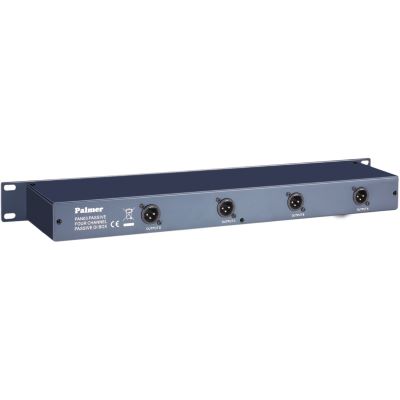

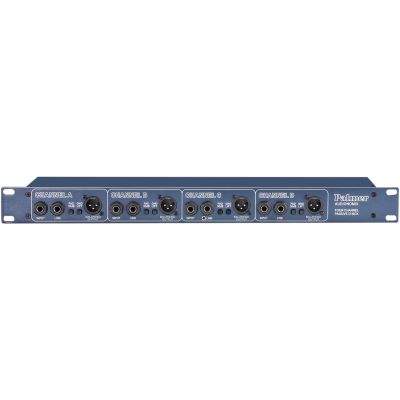

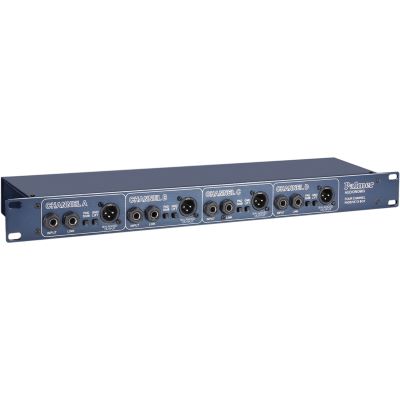

Passive 4-channel DI BOX in 19" housing. Each channel has a jack input with parallel output for looping through the signal. An attenuation switch (-30dB) allows the connection of line or loudspeaker signals. The technical data are identical to the PAN 01. All connectors and switches are located on the 1 U front panel, the XLR output is also available as a parallel socket on the rear panel. 19"/1 HE housing, 90 mm deep.

Features:

  • Transformer symmetrical XLR output
  • Input Sensitivity Adjustable
  • Input impedance: 68,000 ohms
  • Output Impedance: 600 ohms
  • Transformer Ratio: 10 : 1
  • Maximum output: +6 dB
  • Ground lift switch
  • 19"/1 U Housing, 90 mm deep

Specs:

  • Type: DI Box
  • Theme: PA and Sonication

Instruction manual / Safety instructions:
