Palmer PAN 16 DI-Box Passiv

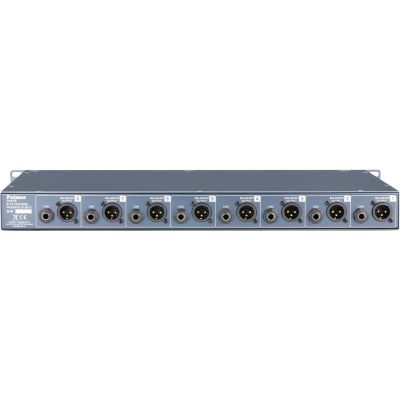

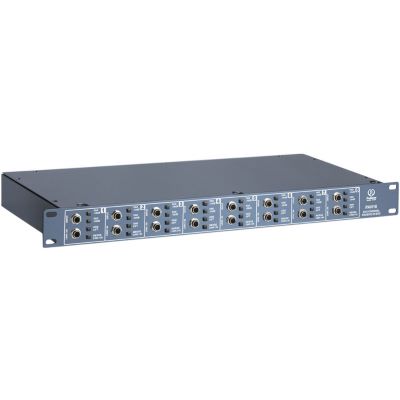

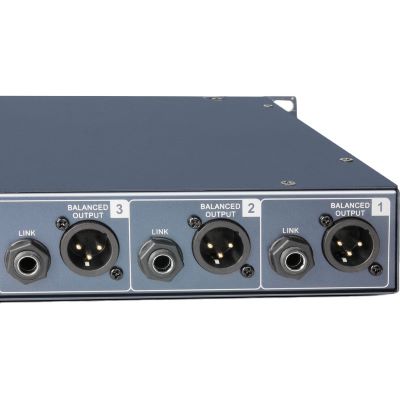

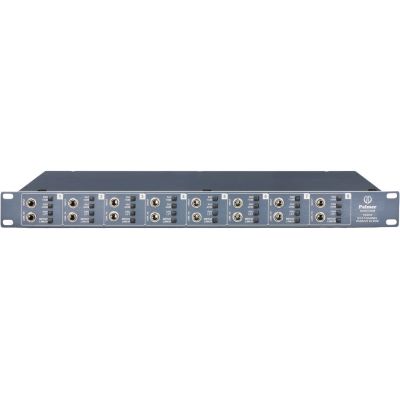

Palmer PAN16 is a passive 8-channel DI box in 19 inch rack format (1 U). With the special MERGE THRU/IN function, the parallel THRU output for looping through the signal can be switched as a second input, whose signal is fed to the output as a mono sum with that of the INPUT socket. The PAN16 offers a maximum of 16 inputs, two PAD buttons provide 10, 20 and 30 dB attenuation. The outputs are designed as XLR sockets and are galvanically isolated and balanced by transformers. They are located with 8 additional THRU sockets on the back of the device.

Features:

• Passive 19" DI box
• 8 channels
• Up to 16 inputs
• THRU Merge Function
• Flexible PAD circuit: -10 dB, -20 dB, -30 dB
• Transformer balanced, isolated outputs

Technical data:

• Product type: DI Boxes
• Type: passive
• Number of channels: 8
• Number of inputs: 8 / 16
• Input connections: 6.3 mm jack
• Max. Input level: 54 dBu
• Input impedance: (@ 60 Hz) 1 M Ohm
• Input attenuation: 0 / -30 dB
• Number of outputs: 4 (+ 4 Parallel Thru out)
• Number of THRU outputs per channel: 2
• Output connectors: 6.3 mm jack , XLR
• Max. Output level: 54 dBu
• Output impedance: 600 Ohm
• Frequency response: 10 - 40000 Hz
• Transformer balanced: Yes
• Gear ratio (Ratio): 10 : 1
• Control elements: Ground-Lift , Merge , PAD -10dB , PAD -20dB
• Housing material: sheet steel
• Housing surface: powder-coated
• width: 480 mm
• Width: 19 "
• Depth: 200 mm
• height: 45 mm
• Height: 1 U
• weight: 2,39 kg

Specs:

• Type: DI Box
• Theme: PA and Sonication
