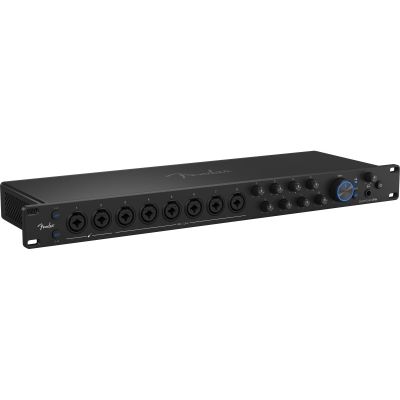

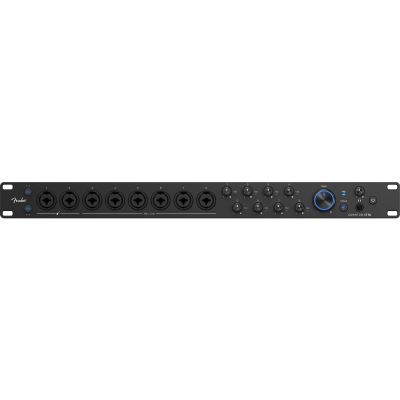

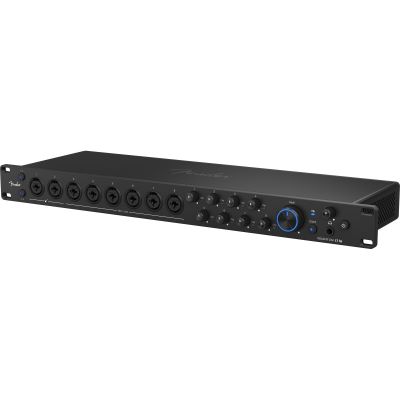

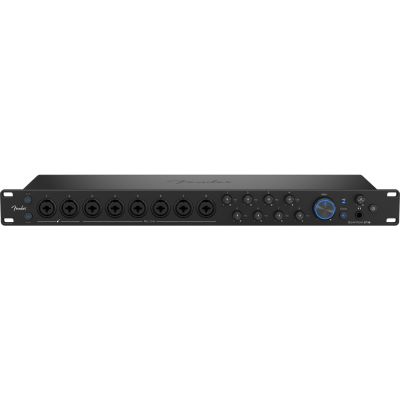

PreSonus Quantum LT 16 USB-C Audio-Interface

PreSonus Quantum LT 16 USB-C audio interface

The PreSonus Quantum LT 16 is the flagship of the LT series - developed for professional applications in the studio, for bands, in complex setups and for producers who expect maximum flexibility and sound quality. With a total of 16 inputs, eight MAX-HD microphone preamps and comprehensive routing logic, this interface is equipped for almost any recording situation - from multitrack recordings to modular synthesizer setups.

MAX-HD preamps and sparkling clean conversion

The eight MAX-HD microphone preamps provide you with up to +75 dB gain - more than enough even for quiet signals or ribbon microphones. This is supported by precise 24-bit converters and a sample rate of up to 192 kHz. The instrument inputs are specially tuned for guitars and basses and get the maximum dynamics and presence out of your playing.

Perfect for large setups and complex signals

The LT 16 offers 14 analog line inputs - including six XLR/TRS combo sockets on the front and eight TRS inputs on the rear (switchable between +4 dBu and -10 dBV). So you can easily connect synthesizers, external preamps or mixers - there's room for all your equipment. DC-coupled outputs enable direct control of voltage-controlled modules in your Eurorack or modular system.

Standalone modes for maximum independence

You don't need a computer to make good use of the Quantum LT 16: In "Mic Pre Mode", it works like a standalone 8-channel microphone preamp. In "Mixer Mode", you can use it as a fully-fledged mixer for simple live or studio setups - ideal for recording without a DAW.

Professional monitoring and routing

Balanced TRS outputs and a powerful headphone amp enable high-quality monitoring. The loopback function allows you to integrate system sounds and microphone signals for podcasts, live streams or online content. Everything is conveniently controlled via Fender Studio Pro or the Universal Control app - for quick mix setups, level control and routing settings.

For a limited time, get the Complete Fender® Amp & FX Pack FREE in the Fender Studio® app with the purchase of an eligible Fender Quantum or AudioBox Go™ audio interface - a $49.99 USD value! Register your eligible product at my.fender.com and download the free Fender Studio app to receive the offer.

Details and restrictions: Offer valid only for customers who purchase an eligible Fender audio interface between March 11 and May 31, 2026. Offer must be redeemed by registering an eligible product at www.my.fender.com by May 31, 2026.

Unlock the Complete Fender Amp & FX Pack in the Fender Studio app for free and get access to a comprehensive collection of authentic Fender amp models and effects for inspiring guitar and bass tones. March 11 to May 31, 2026.

Features:

• Professional 16 x 8 USB-C audio interface
• 8 MAX-HD microphone preamps with 75 dB gain
• 6 XLR/TRS combo inputs at the front (Ch. 3-8)
• 2 optimized Hi-Z inputs for guitar/bass (Ch. 1-2)
• 8 balanced TRS line inputs at the rear (switchable +4 dBu / -10 dBV)
• DC-coupled outputs for modular synthesizers
• 5-pin MIDI In/Out for external hardware
• Balanced 1/4" TRS main outs
• Powerful 1/4" TRS headphone output
• Loopback function for streaming and podcasting
• Standalone "Mic Pre Mode" - use as 8-channel preamp
• Standalone "Mixer Mode" - operation without computer possible
• Virtually latency-free Quantum LT drivers
• Controllable via Fender Studio Pro or Universal Control
• Includes perpetual license for Fender Studio Pro
• Includes My Fender access (setup, registration, support)
• Dimensions (W x D x H): 483 × 127 × 44.5 mm (19" rack format)
• Sample rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
• Power supply: 100-240 V AC, 50-60 Hz
• Headphone output: 142 mW per channel @ 60Ω
• Max. Instrument input level: +22 dBu
• THD+N: from 0.0009 % depending on input
• Max. Line input level: +18 dBu
• Dynamic range: up to 115 dB
• MIDI: 5-pin DIN In/Out
• Bit depth: 24 bit
• Weight: 2.2 kg

Specs:

• Color: Black
• Rack Mountable: yes
• Line Inputs: 14
• Line Outputs: 10
• Mic Inputs: 6
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: USB
• digital Input: USB
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: USB
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio
