RCF EVOX JMIX9 aktives Säulen-PA-System mit Mixer

RCF EVOX JMIX9 Active Column PA System with Mixer

Are you looking for a compact, all-in-one PA system that combines powerful sound reinforcement, digital mixing, Bluetooth streaming, and flexible control in a portable column system? The RCF EVOX JMIX9 Active Column PA System with Mixer is a mobile, 3-way active system featuring a built-in 8-channel digital mixer, color touchscreen, rotary controls, Bluetooth, and remote control.

The EVOX JMIX9 combines the clarity and power of the J9 with digital mixing, flexible routing, and wireless control. This makes the system ideal for events, live performances, DJs, bands, presentations, corporate events, and any situation where a compact, quick-to-set-up PA system is needed.

Active 3-way system with 2,100 watts of power

The RCF EVOX JMIX9 active column PA system with mixer delivers a maximum sound pressure level of up to 130 dB and is equipped with a 2,100-watt Class D power amplifier. The power amplifier features an integrated DSP and is designed for fast transients, realistic sound reproduction, and high efficiency.

For sound reproduction, the system features a 1.75-inch neodymium compression driver with a True Resistive Waveguide, six 3-inch neodymium full-range drivers, and a 12-inch high-performance woofer. This results in a wide dispersion pattern of 120° horizontally and 40° vertically, as well as transparent sound reproduction with a controlled bass foundation.

Integrated 8-Channel Digital Mixer

A key feature of the RCF EVOX JMIX9 active column PA system with mixer is the built-in 8-channel digital mixing console. It features a 2.4-inch color touchscreen, physical knobs, and direct access to key functions on the unit itself. Control is also possible wirelessly via the JMixRemote app for iOS and Android.

The input section includes four mic/line inputs with XLR/jack combo jacks, high-quality THAT® preamps, individually switchable phantom power, and digital gain control. Inputs 1 through 4 can be used as stereo pairs. Inputs 5 through 8 offer a stereo line jack input and a 3.5-mm stereo jack; alternatively, Bluetooth can be used for audio streaming.

DSP, Routing, and Live Features

Each input channel features a high-pass filter, compressor, and 3-band EQ. The built-in stereo reverb effect has separate send controls for each channel. Additionally, a flexible audio ducker, a main output with an 8-band stereo EQ, and an output delay of up to 135 ms are available.

The AUX bus offers an 8-band EQ, pre/post switching, and its own XLR output for monitoring, effects, or additional outputs. The user interface is designed for a fast workflow, including scene storage, a programmable multi-button, and a screen lock to prevent accidental changes.

Portability, Setup, and Use

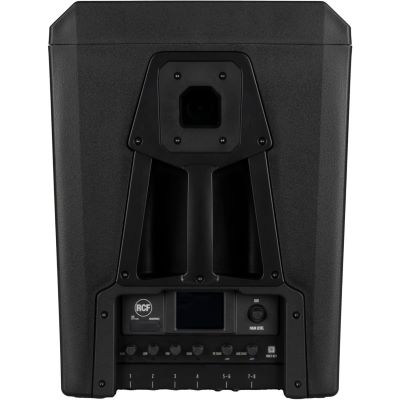

The RCF EVOX JMIX9 active column PA system with mixer features a slim composite enclosure with an aluminum tripod mount. The column is connected to the subwoofer via a lightweight extension rod. Depending on the application, the array can be positioned at standard height, directly on top of the subwoofer, or raised using additional rods.

The package includes a padded carrying case for the column, making the system well-suited for mobile applications. The combination of a powerful speaker system, integrated mixer, app control, Bluetooth, and quick setup makes the EVOX JMIX9 a flexible solution for various venues and events.

Purchase Recommendation

The RCF EVOX JMIX9 active column PA system with mixer is an excellent choice for anyone looking for a professional, portable PA system with an integrated digital mixer. The combination of an 8-channel mixer, touchscreen, Bluetooth streaming, the JMixRemote app, DSP processing, and a powerful 3-way speaker system is particularly convenient.

If you need a compact all-in-one system for live music, DJ sets, public speaking, corporate events, or flexible sound reinforcement solutions, the RCF EVOX JMIX9 active column PA system with mixer offers a high-quality combination of sound, performance, control, and portability.

Features:

• System Type: Active portable 3-way column PA system
• Mixer: built-in 8-channel digital mixing console
• Display: 2.4-inch color touchscreen
• Remote control: JMixRemote app for iOS and Android
• Bluetooth: Audio streaming and wireless control via BLE
• Maximum sound pressure level: 130 dB
• Total power: 2100 W peak
• High-frequency power: 700 W peak
• LF power: 1,400 W peak
• Power amplifier: Class D
• DSP: Integrated RCF DSP platform
• Signal processor: 32-bit
• A/D-D/A conversion: 24-bit at 48 kHz
• Speaker frequency response: 40 Hz – 20,000 Hz
• Horizontal coverage angle: 120°
• Vertical dispersion angle: 40°
• Compression driver: 1 x 0.75" Neo, 1.75" voice coil
• Full-range drivers: 6 x 3.0" neodymium, 1.0" voice coil

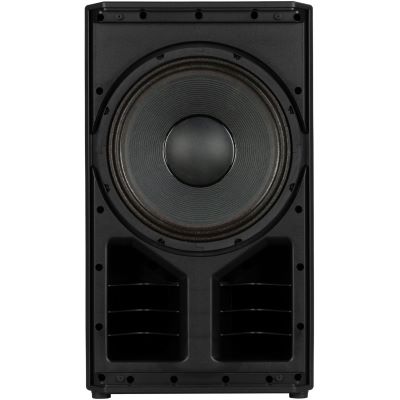

• Woofer: 1 x 12", 2.5" voice coil
• Waveguide: 120° x 40° True Resistive Waveguide
• Input signal: balanced / unbalanced
• Input jacks: Combo XLR/jack
• Outputs: XLR
• Mic inputs: 4
• Mono line inputs: 4
• Stereo line inputs: 2
• Mic/Line channels: High-pass filter, 3-band EQ, and compressor
• Phantom power: +48 V, switchable per channel
• Gain range: 0 dB – 36 dB
• Microphone input impedance: 3 kOhm
• Line input impedance: 10 kOhm
• Stereo input impedance: 24 kOhm
• Dynamic range of A/D conversion: 120 dB
• Main Mix: 1
• FX Send: 1
• AUX Send: 1 Pre/Post
• AUX output: 1
• Headphone output: 1
• Main Out Impedance: 150 ohms
• Main Out Level: 20 dBu
• Aux Output Impedance: 150 ohms
• Aux output level: 20 dBu
• Headphone output impedance: 100 ohms
• Headphone output level: 20 dBm
• D/A dynamic range: 118 dB
• Crossover frequency: 200 Hz / 1800 Hz
• Protection circuits: Thermal, RMS
• Limiter: Soft limiter
• EQ input channels: 3-band EQ
• Main EQ: 8-band stereo EQ
• Output delay: up to 135 ms
• Internal effects: Stereo reverb
• Ducker: Flexible Audio Ducker
• Processing: FiRPHASE and Bass Motion Control
• Cooling: Convection, fanless
• Power supply: internal
• Power Connection: VDE
• Enclosure material: PP composite
• Grille: Steel
• Handle: 1 x on top
• Tripod mount: Quick-Fit Socket
• Color: Black, White RAL 9003
• Accessories: Padded speaker carrying case included
• Height: 2080 mm
• Width: 350 mm
• Depth: 460 mm
• Weight: 26.6 kg

Specs:

• Power: 700 W
• Set Offer: no
• Type: PA System
• Theme: PA and Sonication
