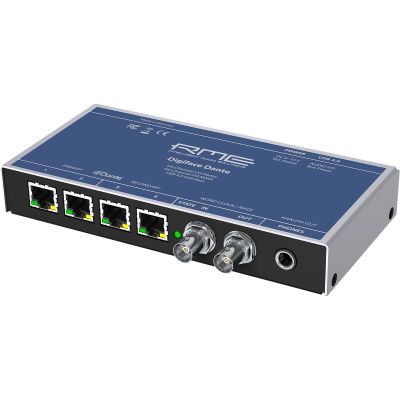

RME Digiface Dante

A lightweight, mobile audio interface that combines Dante network connectivity and features with everything RME is famous for: USB 3, MADI, TotalMix FX and outstanding options in both USB and standalone operation.

The Digiface Dante uses RME's sophisticated drivers for Windows and Mac OS with the lowest latency and industry-leading stability. With TotalMix FX, not only is flexible routing possible, but you can also mix as many independent submixes as there are outputs available. The high quality headphone output offers fast playback of all audio channels or use it as a line output for an additional analog stereo mixdown.

RME has made the two BNC sockets for word clock I/O switchable to MADI I/O, for up to 64 channels. The sum of Dante and MADI, 128 channels, is transferred via USB 3.0 and handled by the Dante control software and TotalMix FX. Equipped with two banks of redundant network ports, the Digiface Dante is more than just an audio interface. It also offers the functionality of a switch, connecting up to four network lines. Without USB, the Digiface Dante automatically becomes a 64-channel Dante / MADI converter. The analog stereo output can be pre-configured to output exactly the channels required.

Features:

• RME - Digiface Dante
• Number of channels: 256 (128 in / 128 out)
• 64 channels Dante / 64 channels MADI
• 2 x Gigabit Ethernet (802.3 compliant)
• 1 x MADI I/O coaxial I/O
• Headphone output
• Wordclock I/O
• USB 3
• Bus-powered
• TotalMix FX

Specs:

• Color: Grey
• Rack Mountable: no
• Line Inputs: 0
• Line Outputs: 0
• Mic Inputs: 0
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: USB
• digital Input: MADI
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: Ethernet
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio
