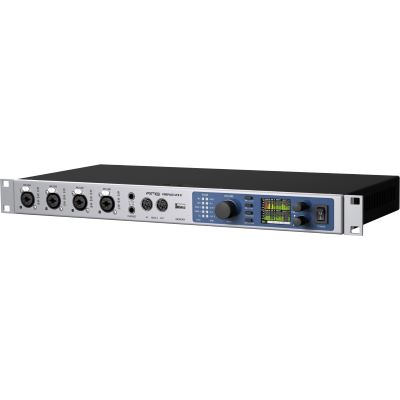

RME FireFace UFX II

The RME Fireface UFX II with 60 audio channels, sample rates up to 192 kHz, the possibility of direct USB recording (DURec) and the PC or Mac independent flexibility through the USB connection is the ideal solution for a wide range of applications in producing, recording and mixing.

12 analog, 16 ADAT and 2 AES channels each provide 30 inputs and 30 outputs via USB 2.0 with the legendary RME low latency hardware and ultra-stable RME audio drivers. Thanks to the USB remote connection, the UFX II can also be operated conveniently in stand-alone mode with the optionally available RME ARC USB (Advanced USB Remote Control).

Brand new AD/DA converters, optimized analog I/O circuits and improved signal-to-noise ratio and distortion guarantee pure and transparent sound. A new PAD-less microphone circuit design with a maximum input level of +18 dBu and a gain range of 75 dB makes for smooth recording in any situation with any source.

New low impedance (2 Ohm) hi-power headphone outputs with a maximum output level of +19 dBu provide enough power and volume for any type of headphone, high or low impedance.

Features:

• 30 input / 30 output channels
• 12x Analog I/O
• 4x Mic / Instr. Preamp, digitally controllable
• 2x Headphone Out
• 1x AES/EBU I/O
• 2x ADAT I/O (or 1 x ADAT I/O plus 1 x SPDIF I/O optical)
• 1x Word Clock I/O
• 2x MIDI I/O
• 1x USB 2.0 (compatible with USB 3.0)
• Sample frequencies up to 192 kHz
• 60 channels I/O via USB 2.0
• digital gain control for all inputs (Mic, Line, Instrument)
• MIC In: max. +18 dBu, 75 dB gain range
• PHONES Out: max +19 dBu, 2 Ohm Impedance
• improved DURec (direct recording to USB media)
• Steady Clock II for maximum jitter suppression
• DSP with EQ, Dynamics and Reverb
• latest AD / DA converters
• TotalMix FX software (1800 channel mixer with 46 bit internal resolution)
• DIGICheck Software (Metering and Analysis Tool)
• TFT display and volume controller
• stand-alone operation
• iPad™ compatible (Class Compliant Mode)

Specs:

• Color: Silver
• Rack Mountable: yes
• Line Inputs: 12
• Line Outputs: 6
• Mic Inputs: 4
• Phono Inputs: 0
• Instrument Inputs: 8
• digital Output: ADAT / S/PDIF
• digital Input: ADAT / S/PDIF
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: USB
• Number of headphone outputs: 2
• Type: Audio Interface
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (1.2 MB)
