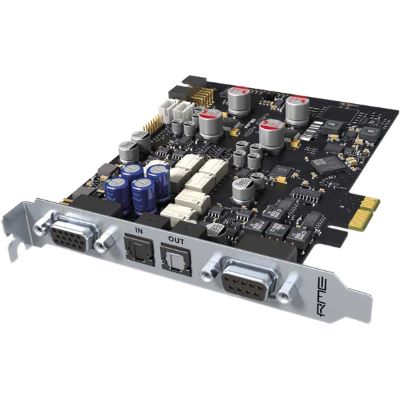

RME HDSPe AIO Pro

With the RME HDSPe AIO Pro PCI Express interface card RME presents the successor of the successful HDSPe AIO. The Pro version offers professional users in studio and broadcast applications the usual high number of channels and the analog/digital input and output variety of the HDSPe AIO. Technically RME has completely redesigned the HDSPe AIO Pro, so that even the latest model defines the state-of-the-art in PCI Express cards!

Features:

• Stereo analog input and output with reference quality, balanced*, 24 bit/192 kHz
• All analog I/Os are fully 192 kHz capable, so no reduction of the number of channels
• 1 x ADAT Digital In/Out, 192 kHz capable (S/MUX4)
• 1 x SPDIF digital in/out, 192 kHz capable
• 1 x AES/EBU Digital In/Out, 192 kHz capable
• 1 x stereo headphone output, separate DA converter, own playback device
• 1 x MIDI I/O for 16 channels Hi-Speed MIDI via breakout cable
• DIGICheck, RME's unique metering and analysis tool
• TotalMix FX: 760-channel mixer with 42 bit internal resolution
• Native PCI Express - no PCI to PCI Express bridge
• Outputs with muting relay
• +24 dBu I/O Levels
• * The basic version of the HDSPe AIO Pro is delivered with an analog RCA cable whip (headphone: stereo jack plug). Therefore all analog I/Os are unbalanced. Optionally, an analog XLR cable whip is available (headphones: Neutrik jack plug), with which the analog I/O works balanced.

Specs:

• Color: Multi-Colored
• Line Outputs: 2
• Line Inputs: 2
• Mic Inputs: 0
• Phono Inputs: 0
• Instrument Inputs: 0
• digital Output: ADAT / AES/EBU / S/PDIF
• Headphone Out: yes
• MIDI Inputs: 1 Port
• MIDI Outputs: 1 Port
• Host Port: PCI
• Type: Audio Interface
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (1.75 MB)
