Rode Caster Video S

RODE Caster Video S video and audio production console - The all-in-one solution for modern content creation

The RØDECaster Video S is the ultimate video and audio production console for professional content creators, streamers, podcasters and video producers. This innovative device combines powerful hardware, an intuitive operating concept and a wide range of functions in a compact format. Thanks to its unique combination of video and audio control, the RØDECaster Video S enables productions at the highest level - simply, quickly and efficiently. Whether live streaming, video recording or mobile studio work - with this tool, creative projects can be professionally realized.

RØDE - Precision from Australia

The RØDE Caster Video S is manufactured at RØDE's headquarters in Sydney, Australia. RØDE is known worldwide for its high-quality microphones, audio solutions and production tools for creative professionals. With decades of experience in developing professional audio technology and an uncompromising commitment to quality, RØDE has earned a reputation as one of the most reliable and innovative manufacturers in the industry. Every product is manufactured to the highest quality standards - including the RØDECaster Video S, which features state-of-the-art technology and durable workmanship.

Technical details of the RØDECaster Video S

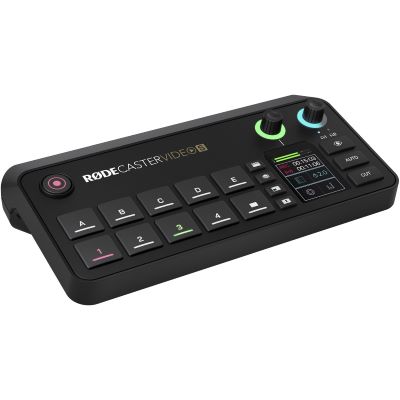

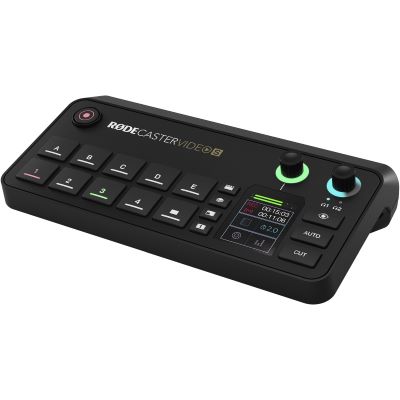

The RØDECaster Video S video and audio production console impresses with its versatility, connectivity and intuitive operation. With a high-resolution 2-inch touchscreen, numerous dedicated buttons and encoder wheels, operation is particularly user-friendly - ideal for solo producers, streaming studios or small production teams.

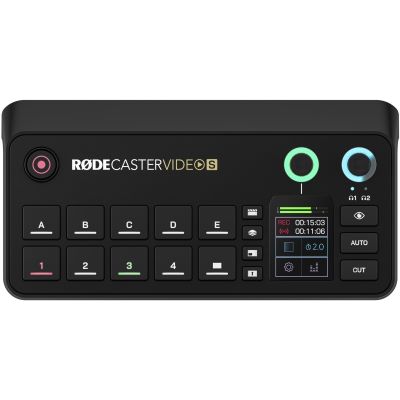

The control panel is clearly laid out and allows quick switching between up to four video sources and five individually programmable scenes. The AUTO button enables automatic transitions, while the CUT button is responsible for manual cuts. There are also six function buttons for frequently used features such as Fade to Black, Media, Overlay, Multi Source, Keying and Inspect.

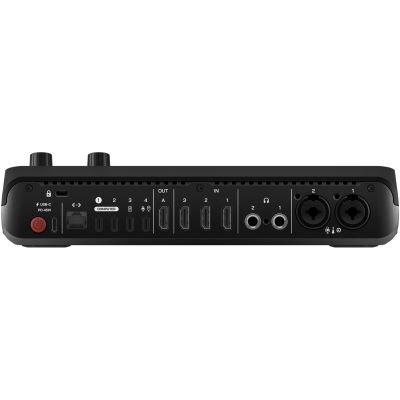

The RØDECaster Video S supports three HDMI inputs (1080p) and one HDMI output, which is freely configurable. To connect external devices, the console offers four USB-C ports, including an input for UVC-compatible webcams and two outputs for connection to computers or mobile devices. A separate USB-C port is used for storage on external drives.

The RØDECaster Video S also impresses in terms of audio technology: two Neutrik combo sockets (XLR/6.35 mm) enable the connection of microphones, line signals or instruments. The integrated Revolution® preamps offer up to 76 dB gain with an extremely low noise level - ideal for professional voice and music recordings. In addition, there are two wireless receivers in the device that are compatible with modern RØDE wireless microphones.

Extensive Aphex® effects are available for audio processing: Compressor, Equalizer, De-Esser, Noise Gate, High Pass Filter, Exciter™, Big Bottom™ and Compellor™ - all separately configurable for each input. This means that the sound can not only be optimized, but also professionally tuned without any additional equipment.

Another highlight is the automatic camera switching, which fades in different video sources based on the audio signal - perfect for solo streams or interview formats. Assigned scenes can be quickly checked and adjusted using the "Inspect" function.

The RØDECaster Video S also offers extensive storage and streaming capabilities: Direct recording in H.264 format to an external USB drive, ISO recording from four video sources and a combined program feed are all possible. Live streams can be transmitted directly to platforms such as YouTube, Facebook, LinkedIn, Twitch or X via RTMP - wired via Ethernet or wireless via WLAN.

The RØDECaster Video S is also ideally equipped for network cameras: Up to four NDI® sources can be received and an output can be realized via Ethernet - including PTZ control (pan-tilt-zoom). This enables integration into modern, IP-based production environments.

Why buy the RØDECaster Video S

The RØDECaster Video S is a highly professional all-in-one audiovisual production solution that offers much more than a simple streaming console. The combination of video switcher, audio interface, effects unit and storage unit not only saves you space, but also the cost of additional equipment.

The device is suitable for a wide range of application scenarios - from live streaming and podcasting to video recording or presentations. The RØDECaster Video S really comes into its own in situations where compact, reliable and powerful technology is required. Thanks to the modular scene management, even complex productions can be easily implemented - including overlays, media, graphics and up to nine simultaneous video layers.

For creatives looking for a seamless connection between image and sound, the RØDECaster Video S offers maximum control and flexibility. Extensive compatibility with RØDE wireless products, network cameras and its own app makes it a future-proof investment. The included 24 GB onboard storage, two media players and various keying options (Chroma, Luma) open up additional possibilities for creative content.

Whether you're streaming as an individual or leading a small team, the RØDECaster Video S has all the tools you need to take your audiovisual presence to the next level.

Features:

• Switching of up to 4 video sources and 5 programmable scenes
• 3 HDMI inputs (1080p), one configurable HDMI output
• USB-C input for webcams (UVC) and RØDE USB audio devices
• Automatic standard conversion on all HDMI and USB inputs
• Direct RTMP streaming via Ethernet or WLAN
• Direct recording to external storage media or via UVC
• ISO recording of 4 video sources plus program as separate H.264 files
• NDI® support for up to four inputs and one output via Ethernet
• 2 USB-C ports for connecting computers or mobile devices
• Separate USB-C port for storage media
• 2 Neutrik combo sockets (XLR/6.35 mm) for microphone, instrument, line
• Built-in wireless receiver for two RØDE wireless microphones
• Ultra-low noise Revolution® microphone preamplifier with up to 76 dB gain
• Bluetooth 5.3 for stereo sources and phone interfaces
• Aphex® audio processing: EQ, compressor, high-pass, de-esser, Exciter™, Big Bottom™, Compellor™
• High-resolution 2" touchscreen, two encoder controls
• 5 scene buttons, 4 source buttons, record, AUTO and CUT buttons
• 6 function buttons for media, overlay, keying, inspect, fade to black, multi source
• 2 integrated media players with 24 GB onboard memory
• Auto-switching for cameras and scenes based on audio signals
• Up to 9 video layers can be used simultaneously (preview and program)
• 2 downstream keyers for overlays and logos
• 2 chroma keyers (blue and green), one luma keyer
• 2 headphone outputs (6.35 mm TRS)
• Dimensions: 254 x 129 x 61 mm
• Weight: 875 g
• Including power supply unit and SuperSpeed USB-C cable
