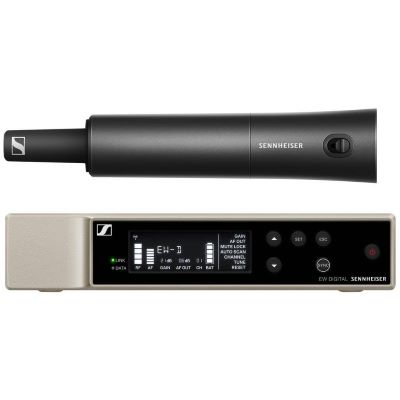

Sennheiser EW-D SKM-S Base Set R1-6

Versatile digital wireless system for singers and speakers. It offers seamless pairing and clear management of all products via the EW-D Smart Assist app. The pocket transmitter in a robust metal housing is perfect for daily stage use.

Setting new standards

Evolution Wireless Digital breaks current boundaries with a wider dynamic range than any other system currently available. In everyday use, the system automatically searches for the best transmit frequency within seconds while allowing up to 90 additional channels thanks to 56 Mhz switching bandwidth. It's easy to see: The wireless system is in a class of its own.

Equidistant spacing - easier than it sounds

Evolution Wireless Digital has an equidistant frequency grid, something previously only found in our flagship systems like Digital 6000 and Digitall 9000. High-quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequency allocation every 600 kHz side-by-side. This simplifies coordination for beginners and experienced users alike. It also contributes to the system's scalability and high channel limit.

The sound engineer in your pocket

With the Sennheiser Smart Assist app and the power of Bluetooth Low Energy, control is literally in your hand. From the comfort of your Android or iOS device, you'll enjoy the benefits of fast automatic setup, mobile access to all system settings, and remote monitoring. You'll save time, energy, and work with more confidence and less stress.

Features:

• Digital radio system with no noise, interference or electrostatic interference.
• UHF transmission with much higher range, reliability and scalability
• Mobile app optimizes setup and operation without complicated menu
• Automated setup ensures reliable connections with minimal time and effort
• Up to 2,240 selectable frequencies
• Lithium-ion battery pack for up to 12 hours of operation (up to 8 hours of operation with AA batteries)
• 56 MHz bandwidth supports up to 90 channels
• 134 dB transmitter dynamic range preserves every detail, even during extremely dynamic performances

Technical specifications:

• Frequency range:520 - 576 MHz
• Distortion factor at 1kHz: ≤ -60 dB for 1 kHz at -3 dBfs input level.
• Temperature range (operating): -10 °C - +55 °C
• Audio frequency response: 20 Hz - 20 kHz (-3 dB) at 3 dBfs.
• Relative Humidity Operating: 5 - 95 % (non-condensing)
• System Latency: 1.9 ms

EW-D EM:

• Dimensions: 212 x 44 x 189 mm
• Weight: approx. 1000 g (without antennas and power supply)
• Current consumption: ≤ 300 mA
• Audio output level: 18 dBu Max.
• Transmit power: BLE: 10 mW EIRP max.
• Input voltage range: 11 - 13 V ⎓

EW-D SKM-S:

• Dimensions: 50 x 268 mm (with MMD 835 microphone module); 40 x 200 mm (without microphone module).
• Weight: approx. 304 g (with MMD 835 microphone module); approx. 195 g (without microphone module)
• Power supply: 2 AA batteries 1.5 V (alkaline-manganese) or BA 70 rechargeable battery pack
• Current consumption: < 300 mA
• Input voltage range: 2.0 to 4.35 V
• Transmit power: Audio link: 10 mW; ERP (range Y1-3): 12 mW ERP; BLE: max. 10 mW EIRP

Specs:

• Color: Black
• Set Offer: yes
• Converter: Dynamic
• Frequency band: UHF
• Type: Radio System
• Theme: Microphones
