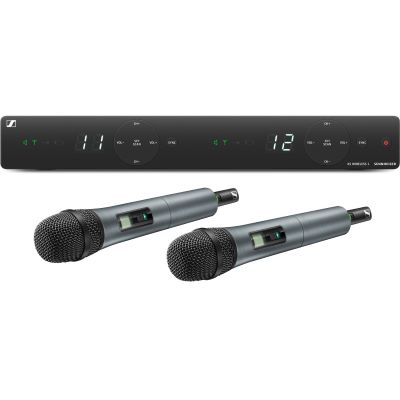

Sennheiser XSW 1-825 DUAL B-Band Vocal Set

XS WIRELESS 1 DUAL is a 2-channel wireless system for singers and presenters. XSW 1 DUAL is quick to set up, easy to operate and absolutely reliable in transmission - thanks to a stable UHF band, integrated antennas and the simplest menu design. The perfect complement for XS WIRELESS 1 systems.

Features:

• Frequency range: 614-638 MHz
• Dimensions: Ø 48 × L 180 mm
• Connector plug: XLR-3
• Audio transmission range: 55 - 16,000 Hz.
• Distortion factor at 1kHz ≤ 0.9 %
• Transducer principle: dynamic
• Weight: 330 g (0.73 lbs)
• Polar pattern: cardioid
• Nominal impedance: 300 Ω (at 1 kHz)
• Min. termination impedance: 1 kΩ
• Temperature range (storage): -20 °C to +70 °C
• Temperature range (operation): 0 °C to +40 °C
• Noise level distance: ≥ 103 dBA
• Switching bandwidth: Up to 24 MHz
• Modulation type: Wideband FM
• Frequency: 80 factory presets (8 banks of 10 channels each)
• Sensitivity, transmission factor: 1.8 mV/Pa (free field, no load at 1 kHz)
• Synchronization: Transmitter: 2.4 GHz, low power OQPSK (only active during synchronization)
• Temperature range: 0 °C ... +40 °C (+32 °F ... +104 °F)
• Integrated antennas
• Up to 10 compatible channels
• Switchable UHF frequencies within wide bandwidth
• Diversity 2-channel receiver with antenna switching
• Excellent live sound with Sennheiser's well-known evolution microphone capsules (e 825 and e 835)
• Easy configuration thanks to automatic frequency management and synchronization of transmitters via return channel

Specs:

• Color: Black
• Set Offer: no
• Converter: Dynamic
• Frequency band: n/a
• Type: Radio System
• Theme: Microphones
