Sennheiser XSW IEM Set (B)

The all-in-one professional-level starter kit.

It takes the hassle out of making the switch to in-ear monitoring, and it eliminates the need for long equipment lists. The XS Wireless IEM kit includes everything you need to get started. You can now enjoy the best near field sound, full control over your mix, and great shielding, along with a rock solid wireless connection. Focus on your new live sound on any stage or venue: with the XS Wireless IEM, you have a range of options to take your talent to new levels of perfection on any stage. It doesn't get any simpler than this.

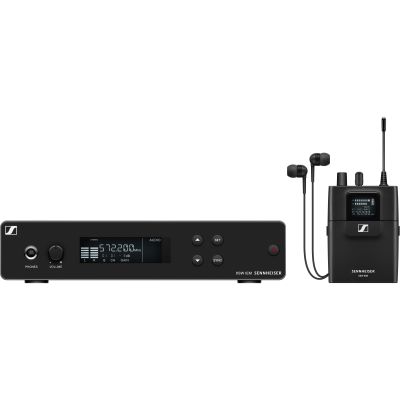

The system consists of a rugged transmitter, lightweight bodypack receiver, entry-level IE 4 in-ear headphones, batteries, power supply with country adapters, and a rack-mount kit for the transmitter.

Eight preset frequency banks in the UHF range (each with 12 perfectly matched channels) ensure a stable and interference-free connection in any situation. Standard and advanced features make the XS Wireless IEM suitable for both small and large applications. The series can grow with your needs at rehearsals or live shows, on a club stage or at a church service. Diverse audio modes allow you to adapt to different performances and mixing requirements. So you can easily switch between mono, stereo or a two-channel focus mode.

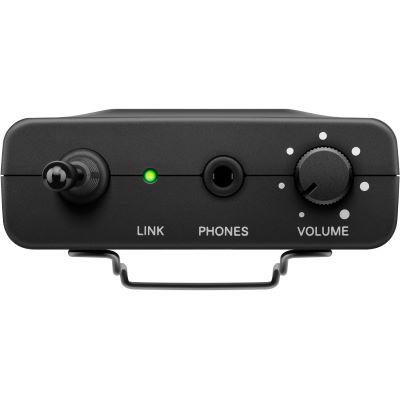

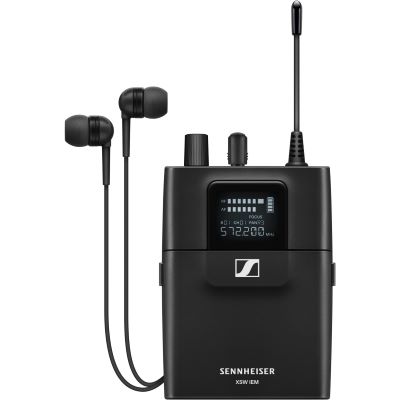

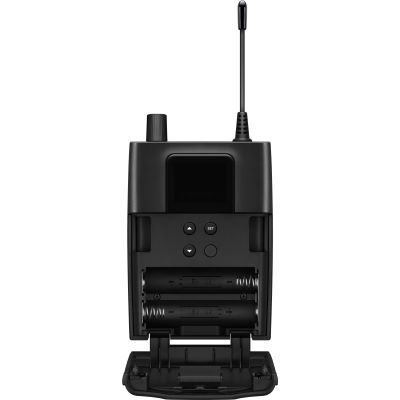

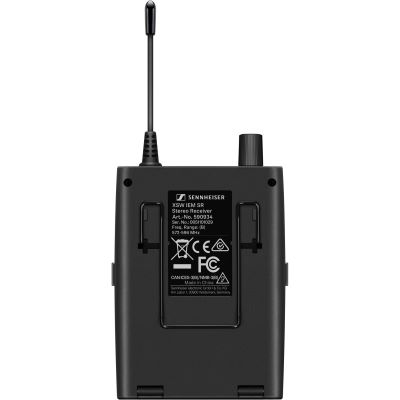

The stereo body-pack receiver, while lightweight, was designed with live stages in mind. All adjustment options are well secured behind a stage-proof cover. A status LED keeps you informed of battery and connection status, and the LC display provides access to additional setting options. You can set your preferred focus mode for in-ear monitoring, balance your mix, toggle the EQ to boost the higher frequencies, or select your channel or a manual frequency.

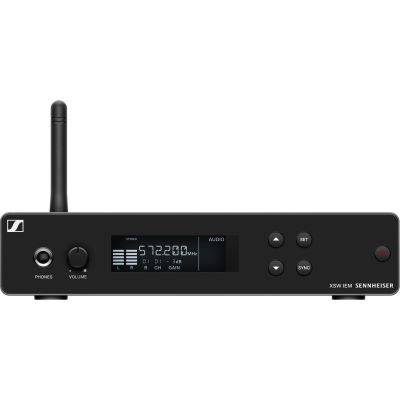

The stereo transmitter is housed in a rugged metal enclosure. Fine-tuning the most important settings has never been easier. Whether you want to boost the gain, check the frequency setting, or sync a few more receivers for your band setup: It takes fewer clicks to do all that than it takes your drummer to count-in. A rack-mount kit and detachable antenna allow for flexible setups and configurations.

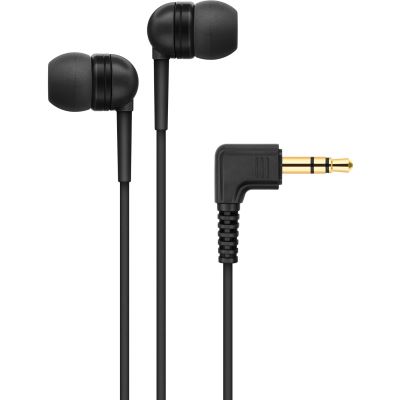

Also included in the kit is an IE 4 in-ear headphone. It reproduces sound with good sound quality and high dynamic range, and features interchangeable ear adapters for a secure and comfortable fit. They also provide ambient noise shielding and good bass response.

Features:

• Sennheiser XSW IEM Set (B).
• Entry-level IEM system with all the components you need).
• Rely on your wireless connection - professional quality UHF wireless system)
• Full control with flexible audio modes)
• Focus mode that lets you fine-tune your personal mix)
• EQ and limiter options enhance your audio experience)
• Easy-to-use frequency presets or detailed manual control)
• One transmitter can be connected to an unlimited number of receivers)
• Includes: XSW IEM EK stereo receiver; XSW IEM SR stereo transmitter; IE 4 in-ear headphones; 2 AA batteries; XSW rack-mount kit; NT 12-5CW power supply and country adapter; quick start guide and safety instructions

Technical Specifications:

XSW IEM SR Stereo Transmitter:

• Modulation type: wideband FM
• Frequency range: 572-596 MHz
• Switching bandwidth: up to 24 MHz
• Nominal deviation/peak deviation: ±15 kHz / ±24 kHz
• Squelch: 10 µV, fixed
• Signal-to-noise ratio (1 mV, peak deviation): ≥88 dB
• Distortion factor: ≤ 1 %
• LF output power at 3.5 mm: 2 x 1.25 Vrms at 16 Ω
• High boost (EQ): +10 dB at 13 kHz
• Limiter: -10 dB
• LF transmission range: 45 Hz to 15 kHz
• Cross talk (50 Hz - 10 kHz): approx. 45 dB
• Temperature range: 0 °C to +40 °C
• Power supply: 2 AA batteries, 1.5 V
• Rated voltage: battery 3 V / rechargeable battery 2.4 V
• Operating time: approx. 6 hrs.
• Dimensions: approx. 95 x 70 x 26 mm
• Weight (incl. batteries): approx. 110 g

XSW IEM EK stereo receiver:

• Modulation type FM Stereo
• Frequency range: 572-596 MHz
• Switching bandwidth: up to 24 MHz
• Antenna output: BNC socket, 50 Ω
• Max. RF output power: 572-596 MHz, 30 mW
• AF transmission range: 45 Hz to 15 kHz

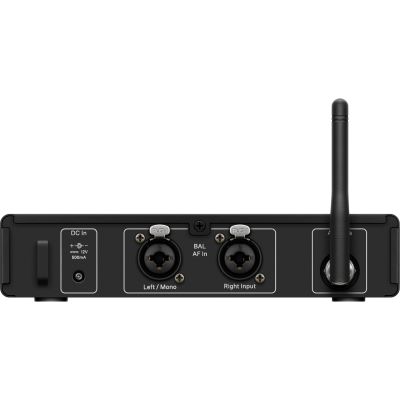

• AF input (BAL AF IN L (I) + MONO/BAL AF IN R (II)): 2x XLR-6.3 mm TRS combo jack (3/¼"), electronically balanced
• Signal-to-noise ratio(at rated load and peak stroke): ≥88 dB
• Temperature range: 0 °C to +40 °C
• Power supply: +12 V DC
• Current consumption: approx. 400 mA (depending on volume)
• Dimensions: approx. 200 x 128 x 42 mm
• Weight: approx. 700 g
• Input voltage: 100 to 240 V~200 mA, 50/60 Hz
• Current consumption: max. 200 mA
• Output voltage: +12 V DC
• Secondary output current: 500 mA
• Temperature range: 0 °C ... +40 °C
• Temperature range during storage: -20 °C ... +60 °C

Specs:

• Type: InEar System
• Theme: PA and Sonication

Instruction manual / Safety instructions:

• Manual (1.48 MB)
