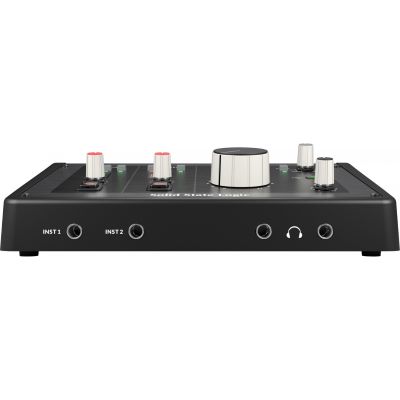

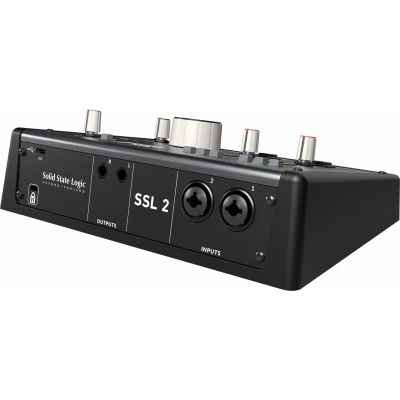

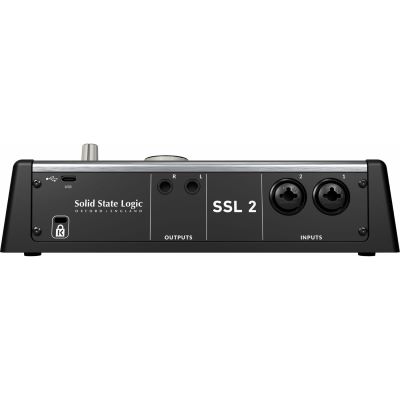

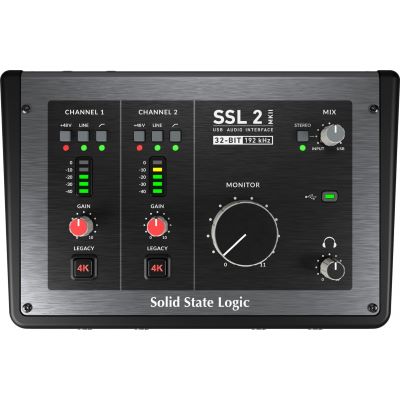

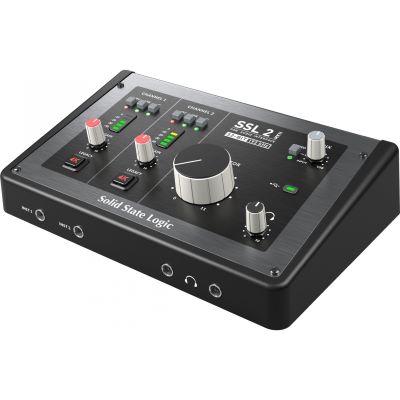

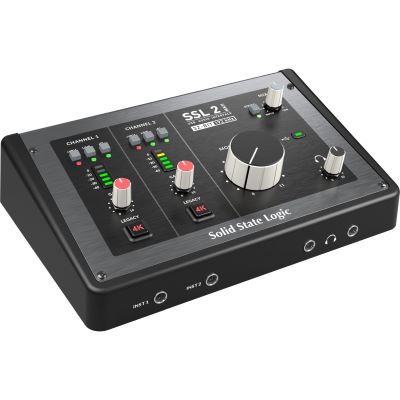

Solid State Logic SSL 2 MKII

The Solid State Logic SSL 2 MKII USB Audio Interface combines SSL's decades of experience in a compact and user-friendly format. It offers professional audio quality and is ideal for musicians, producers and sound engineers looking for a high quality 2 in/2 out USB audio interface. The SSL 2 MKII offers a perfect combination of compact design and first-class sound quality to enable professional recordings both in the studio and on the road. With a weight of only 0.88 kg and high-resolution AKM converters, it offers maximum performance in a small format.

Features:

• 2 In/2 Out USB audio interface for versatile applications.
• Two microphone preamps in 2-stage design with 64 dB gain and a dynamic range of 116.5 dB.
• 32-bit/192 kHz converter (AKM4621) for outstanding sound quality.
• Legacy "4K" switch for sound coloration, inspired by the SSL 4000 series.
• Instrument and line input for various recording sources.
• Balanced monitor outputs for precise monitoring.
• High-quality stereo headphone amplifier with two outputs on the front panel.
• 5-digit level display for each input for optimum signal monitoring.
• Switchable high-pass filter in the inputs.
• 120 dB dynamic range in the outputs, 119.5 dB dynamic range in the headphone outputs.
• Plug & Play for quick and easy setup.
• USB-C connection with power supply via USB, ideal for mobile applications.
• Use of durable Neutrik™ sockets and Alps™ controls.

Scope of delivery:

• 1x SSL2 MkII unit
• 1x adapter cable for USB-A
• SSL Production Pack with Ableton Live Lite, SSL Vocalstrip & Drumstrip, AAS Session Bundle, Mixbus 10, BFD Player + Pop Essentials LE, AmpliTube 5 SE, Native Instruments Hybrid Keys & Komplete Start, Celemony Melodyne Essential, Loopcloud Samples.

Technical data:

• Manufacturer: SSL
• Operating system: Win / Mac OS
• Application: Studio
• Number of channels: 2x2
• Number of microphone inputs: 2
• Line In: 2
• DI In: 2
• Line Outs: 2
• Headphone inputs: 2
• Phantom power: 48V
• Further interfaces: USB-C
• Midi interface: No
• Word clock in/out: No
• Maximum sampling rate in kHz: 192
• Maximum resolution in bit: 32
• Bus powered: Yes
• Width (mm): 234
• Depth (mm): 157
• Height (mm): 70
• Weight (kg): 0.88

Connections:

• 2 Mic/line/instrument inputs: Combo XLR / 6.3 mm jack
• 2 line outputs: balanced 6.3 mm jack
• 2 stereo headphone outputs: 6.3 mm jack
• Zero latency monitoring
• USB version 2.0

Specs:

• Color: Black
• Rack Mountable: no
• Line Inputs: 2
• Line Outputs: 3
• Mic Inputs: 2
• Phono Inputs: 0
• Instrument Inputs: 2
• digital Output: none
• digital Input: none
• Headphone Out: yes
• MIDI Inputs: 0 Ports
• MIDI Outputs: 0 Ports
• Host Port: USB
• Number of headphone outputs: 1
• Type: Audio Interface
• Theme: Recording and Studio
