Solid State Logic SSL Fusion

Cult studio technology company Solid Slate Logic (SSL) introduces the Fusion, an all-analog 2U stereo outboard processor designed for the modern hybrid studio. SSL has always has always designed devices that provide incredible coloration tools and processing effects. The Fusion offers outstanding pristine preamps as well as filters, dynamics and stereo tools with analog sound character. tools with analog sound character.

The Vintage Drive is a unique non-linear circuit that combines signals as a harmonic amplifier by saturating and adding harmonics. Using the Drive and Density knobs can be used to create a slight compression, a fatness or a more extreme distortion. With the 2-band Violet EQ, two shelf filters can be used for low- and high-end processing. high-end processing can be used. Both frequency bands can be attenuated between -9 dB and boosted by +9 dB. The filters also have four fixed frequencies.

The next tool is the high-frequency compressor with an unmistakable sound, which only affects high frequencies and is optimized for a smooth and transparent reduction in hardness so that the sound can be tamed. the sound can be tamed. You have access to the adjustable Treshhold and X-Over potentiometer, which determines the crossover frequency. Ratio, Attack and Release have fixed values that cannot be adjusted. If the ON/OFF (IN) switch of the compressor is pressed for 5 seconds, the device switches to full-band LMC mode and X-Over becomes a parallel wet/dry mix control. wet/dry mix control.

Equally interesting is the Stereo Image Enhancer with genuine analog mid-side switching. The side signal is manipulated and a widening and spatial manipulation of the stereo field is made possible. stereo field. Another feature is the SSL transformer circuit for a gentle saturation of the low frequencies and a phase shift of the high frequencies. This results in a thickening of the sub-range and brilliant highs.

Features:

• Professional hybrid studio processing tool
• Drive section (non-linear saturation)
• Equalizer section (2-band shelving EQ with minimal phase shift)
• Compressor section (full-band compressor for dynamic processing)
• Stereo imager (for control over the signal width)
• Format: 2 height units

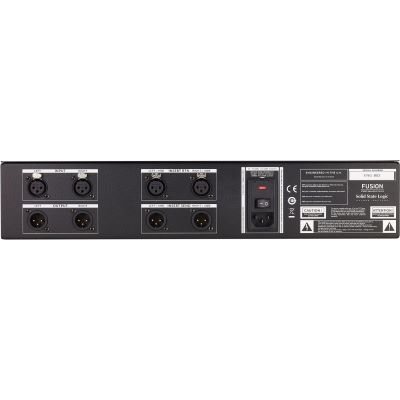

• Input: 2x XLR (L/R)
• Output: 2x XLR (L/R)
• Insert send: 2x XLR (L/M & R/S)
• Insert return: 2x XLR (L/M & R/S)
• Power supply: 115 / 230 V AC (50/60 Hz)
• Dimensions (L x W x H): 48.0 x 30.3 x 8.9 cm
• Weight: 5.86 kg
• Color: grey (brushed)

Specs:

• Type: digital Effects Processor
• Theme: Recording and Studio

Instruction manual / Safety instructions:

• Manual (4.46 MB)

Downloads:

• Booklet (10.84 MB)
