Soundsation WF-U1300H

The WF-U1300 is a professional UHF true diversity radio microphone with 300 channels and a simple and intuitive user interface. "True Diveristy" allows the receiving system to be equipped with two antennas, two receiving circuits and a device capable of continuously selecting the stronger and interference-free signal. This system is built with leading technology that enables the integration of many important functions - such as gain section, digital signal processing, PLL (Phase-Locked Loop) frequency synthesis and more - into a single CHIP. The WF-U1300 is also equipped with an automatic frequency search system and an IR synchronization system that enables fast channel synchronization between the receiver and transmitter. In addition, Digital Pilot Technology not only enables monitoring of the receiver level and battery charge, but also allows for trouble-free operation with multiple systems.

Features:

• Soundsation - WF-U1300H
• UHF true diversity technology to prevent interference
• 300 preset frequencies and IR matching system for quick setup
• 823-832MHz UHF band
• Simple and clear user interface with LCD display on transmitter and receiver
• Digital pilot technology for multi-system operation
• LF level of transmitter and battery level monitoring directly on receiver
• 80m ideal distance (without obstacles)

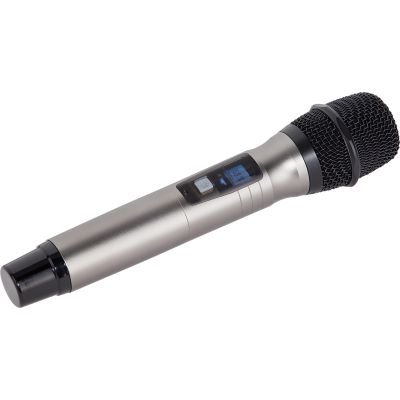

• Professional handheld microphone with dynamic cardioid capsule
• Carrier frequency: UHF823-832MHz
• Frequency stabilization: < ±30ppm
• Dynamic range: >90dB
• Total harmonic distortion: <0.5%
• Frequency response: 40Hz-15KHz ±3dB
• Audio output level Balanced 400mV; Unbalanced 400mV
• Dimensions (WxHxD): 210 x 43 x 187 mm (antennas not included)
• Antenna: 255 mm (not curved)
• Weight: 0.53 kg

Specs:

• Color: Black
• Set Offer: no
• Converter: Dynamic
• Frequency band: UHF
• Type: Radio System
• Theme: Microphones

Instruction manual / Safety instructions:

• Manual (4.97 MB)
