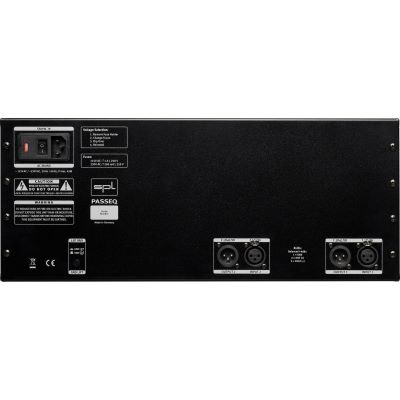

SPL PassEQ red

The new PASSEQ now features an air band, an output control with rasterized +/-10dB control, and a mid-range cut band that starts at 200Hz. We have thus implemented the wishes of many mastering engineers.

In addition, we had individual coils for the filters custom-made and optimized the bandwidths per frequency range. Look forward to a new sound experience.

Features:

• 12 switchable frequencies per band, total 36

Technical data:

• Max. Input level: + 32.5 dBu
• Input impedance: 20 kOhm (sym.)
• Max. Output level: + 32.5 dBu
• Output impedance: ' 600 Ohm (sym.)
• Harmonic distortion: at -30 dBu: 0.076%, at -20 dBu: 0.026%, at 0 dBu: 0.026%, at +10 dBu: 0.0086%, at +30 dBu: 0.0012%
• Noise (unweighted, (Gain +0 dBu, EQ = 0dB B/C): - 91,8 dBu
• Noise (A-weighted, (Gain +0 dBu, EQ = 0dB B/C): - 95,2 dBu
• Noise CCIR, (Gain +0 dBu, EQ = 0dB B/C): -86.2 dBu
• THD & N (Gain +0 dBu, EQ = 0dB B/C): ' 102 dB
• Common mode rejection: ' -60 dBu (at 1kHz, Gain +0 dBu, EQ = 0dB B/C)
• Transmission bandwidth (-3 dB): 10 Hz-200 kHz
• Editable frequency range: 10 Hz-35kHz
• Power consumption: 0.06Amp, 230V/50Hz, 9.5Watt, 13.6VA // 0.09Amp, 115V/60Hz, 9.5Watt, 13.6VA
• Housing: (19 inch, 4U), 482 x 177 x 311.5 mm (incl. decorative and mounting front)
• weight: 10,2kg

Specs:

• Type: Equalizer
• Theme: Recording and Studio
