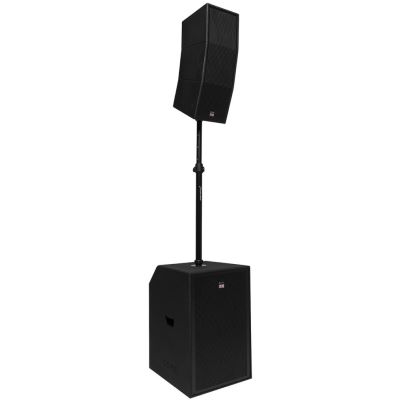

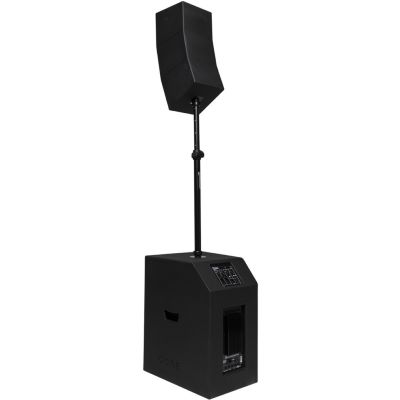

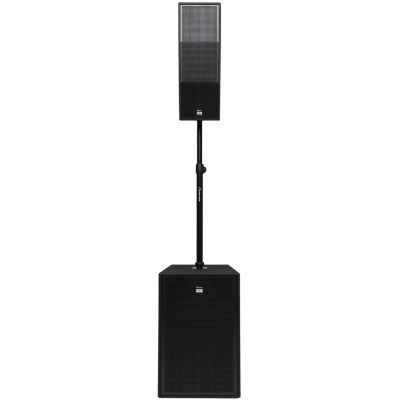

Studiomaster CORE151

Studiomaster's new CORE system uses a specially designed curved array that provides controlled and highly effective sound diffusion.

By combining the curved array with a powerful bass-reflex subwoofer that delivers up to 2800W of low-frequency power, the entire system can provide 4400W of peak power (1100W RMS) in a compact, portable system that gives you the range and sound quality you expect from an ultra-compact array system.

To complete the system, the CORE features an integrated 4-channel mixer with DSP control and Bluetooth® connectivity.

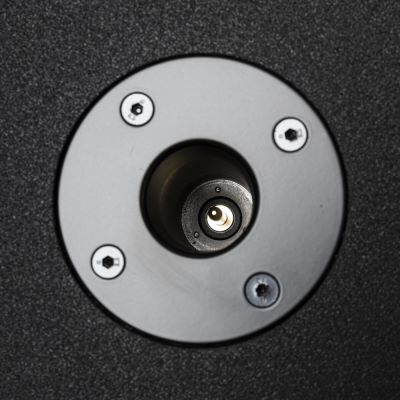

The CORE system is designed to be easy to set up and operate. The air-cushioned, adjustable speaker pole includes internal wiring so you can simply lift the lightweight Curve Array and place it on top of the pole. Plug in the power supply and you're ready to go! A truly ALL-IN-ONE system. Perfect for any performance.

Features:

Sub:

• Speaker - 1×15" woofer driver.
• Rated power (SUB) - 700W (rms)
• Amplifier power - 700W (LF) + 400W (MF/HF) (rms)
• Maximum sound pressure level - 128 dB
• Dimensions - 485mm x 725mm x 585mm
• Net weight - 37.5kg

Curve Array:

• Speaker MF - 3×8" neodymium full range driver.
• Speaker HF - 12×1" dome tweeter
• Rated power - 400W
• Beam angle - 100° (h) x 70° (v)
• Dimensions - 255mm x 670mm x 285mm (450mm max)
• Net weight - 11.5kg

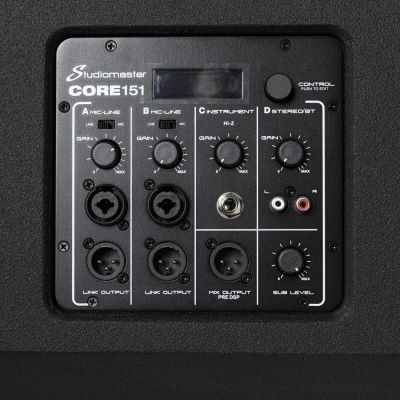

Mixer:

• DSP - 24-bit module with mode, EQ, limiter, delay and mix level control
• Inputs - 2x microphone (XLR) / line (6.35mm jack) balanced, 1x instrument Hi-Z (6.35mm jack), 1x stereo line (RCA phono) / Bluetooth®
• Outputs - 2x balanced Line/Link output (XLR), 1x balanced Line/Link MIX output (XLR)

Specs:

• Power: 700 W
• Housing Material: Plastic
• Pole Mount: yes
• Woofer: 1 x 15
• Tweeter: 1 x 1,5
• Set Offer: no
• Bluetooth: No
• Type: PA System
• Theme: PA and Sonication
